Transmission (1)

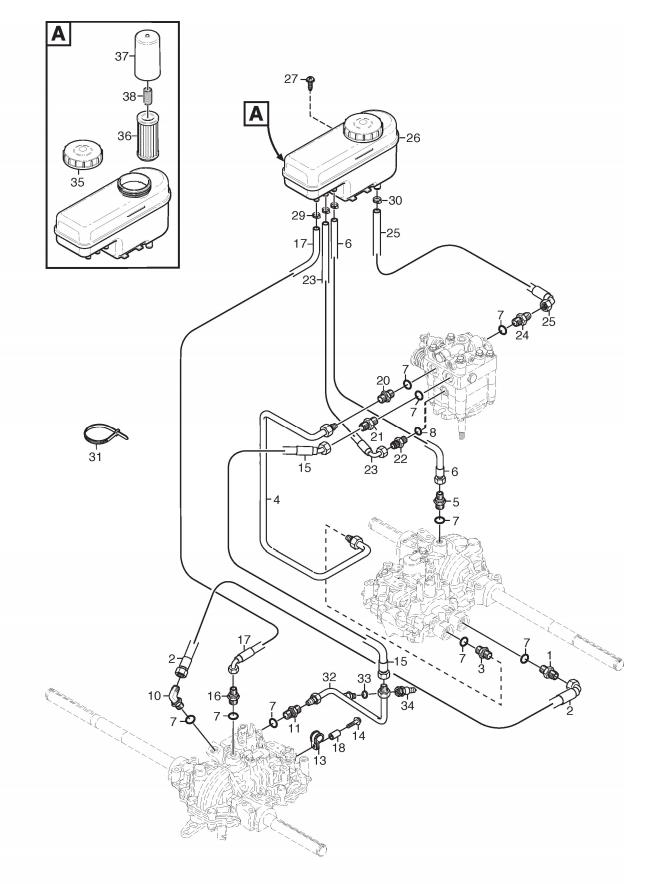

Transmission (1) assembly details for Stiga PARK PRO 340 X 2015 (13-6269-31) 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-5810-01HYDRAULIC COUPLING£17.86 Add to
002387869512/0HYDRAULIC HOSE£161.04 Add to
0031134-5808-01HYDRAULIC COUPLING£50.70 Add to
004387869500/0HYDRAULIC HOSE£98.40 Add to
0051134-5809-01HYDRAULIC COUPLING£17.86 Add to
006387869516/0HYDRAULIC HOSE£38.97 Add to
0079404-0029-01O RING 16.36 x 2.21£5.46 Add to
0089404-0028-01O RING 11.89 x 1.98£4.78 Add to
0101134-5807-01HYDRAULIC ANGLE COUPLING£34.35 Add to
0111134-5875-01HYDRAULIC COUPLING£71.14 Add to
0139578-0028-01TUBE CLAMP£9.31 Add to
0149959-0825-16SCREW FLANGED TE M6SF M8 x 25£2.06 Add to
0151137-0223-010N/A POA
0161134-5809-01HYDRAULIC COUPLING£17.86 Add to
017387869517/1HYDRAULIC HOSE£101.13 Add to
0181134-1565-01SPACER£14.58 Add to
0201134-5808-01HYDRAULIC COUPLING£50.70 Add to
0211134-5810-01HYDRAULIC COUPLING£17.86 Add to
022387520119/0LOWER STEERING COLUMN£74.87 Add to
023387869518/0PUMP DRAINAGE HOSE£70.53 Add to
0241134-5810-01HYDRAULIC COUPLING£17.86 Add to
0251137-0220-01HYDRAULIC HOSE£79.98 Add to
0261134-5819-03HYDRAULIC OIL TANK£149.23 Add to
027112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
0299578-0023-04HOSE CLAMP£5.32 Add to
0309578-0023-05HOSE CLAMP£4.91 Add to
031133320027/0FASTPOINT BAND ART. 0387.AA01 L=290£2.06 Add to
0321134-6039-01HYDRAULIC PIPE ASSEMBLY£197.87 Add to
0331134-4948-01SEAL WASHER 1/4"£2.59 Add to
0341134-6042-01QUICK COUPLING-MALE 1/4"£32.08 Add to
0351137-0272-01TANK CAP£34.35 Add to
0361134-5962-02OIL FILTER (PAPER)£27.27 Add to
0371134-5963-01COVER-OIL FILTER£12.00 Add to
0381134-5964-01SPRING-OIL FILTER£11.59 Add to
