Electrical Equipment

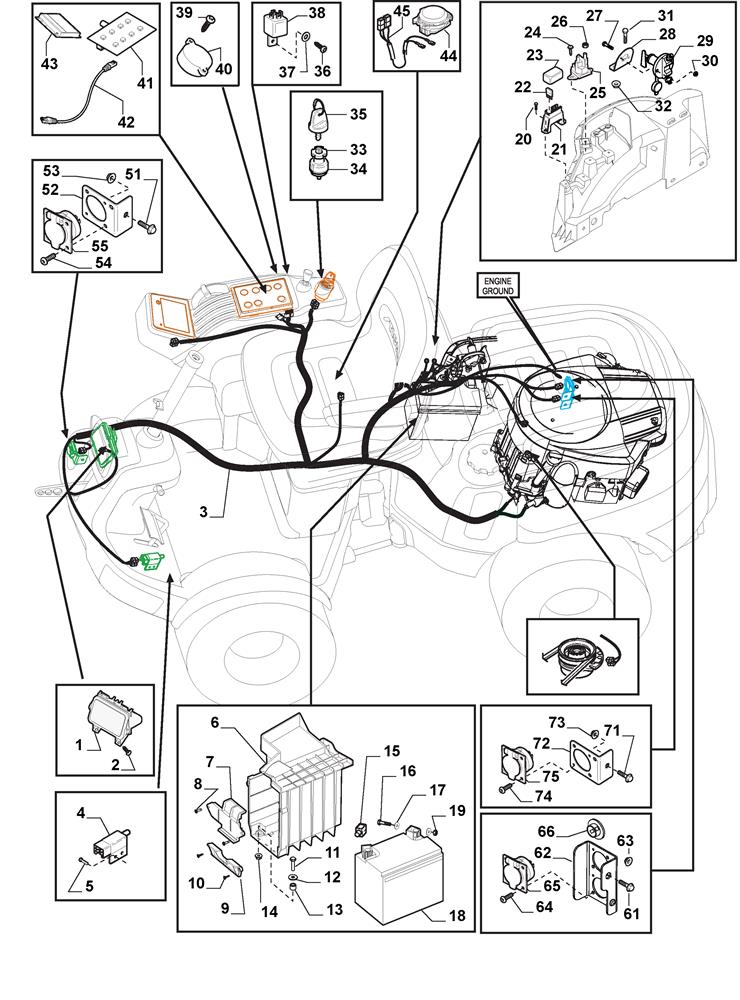

Electrical Equipment assembly details for Stiga PARK PRO 740 IOX 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001387184250/0FRONT LED LIGHT£191.06 Add to
002112728714/0SELF-TAP SCREW K50 x 20£2.40 Add to
003187040300/1WIRING HARDNESS (B&S)£292.13 Add to
0041134-3399-01SWITCH£45.26 Add to
005112735654/0SELF-TAPPING SCREW M5 x 16£2.74 Add to
006337109500/0BATTERY HOUSING [BLACK]£60.24 Add to
007337245200/0BATTERY STOP£6.55 Add to
008112735654/0SELF-TAPPING SCREW M5 x 16£2.74 Add to
009337580470/0BATTERY SLIDE PLATE£8.73 Add to
010112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
011112791500/0SCREW TE M6x25 UNI 5739 ACC.8.8£2.06 Add to
012112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
014112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
015118564861/1RED RUBBER TERMINAL COVER£7.90 Add to
016112791400/0SCREW TE M6x20 UNI 5739 ACC.4.8£1.79 Add to
017112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
019112292100/0HEXAGON NUT M6£1.47 Add to
020112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
0211134-3491-01FUSE HOLDER£13.90 Add to
0221134-3496-06FUSE 20A£2.06 Add to
022A133340036/0FUSE 25A£2.06 Add to
0231134-3631-01COVER-FUSE HOLDER£12.96 Add to
024112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
025118736113/0SOLENOID£39.22 Add to
0269743-5121-32LOCK NUT 5/16"£1.79 Add to
027112791200/1SCREW TE M6 x 16£1.79 Add to
028337785025/0BATTERY SWITCH BRACKET£15.54 Add to
0299400-0316-01MAIN SWITCH£76.59 Add to
030112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
031112791200/1SCREW TE M6 x 16£1.79 Add to
032112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
0331134-4749-01NUT£5.05 Add to
034118210026/0IGNITION SWITCH£76.59 Add to
0351134-4734-01IGNITION KEY£17.72 Add to
036112728124/0SELF-TAP SCREW TCB TORX 4.2 X 16£1.74 Add to
037112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
038133567002/0OPC DELAYED RELAY£57.48 Add to
039112728124/0SELF-TAP SCREW TCB TORX 4.2 X 16£1.74 Add to
040337031585/0BUZZER SOUND AMPLIFIER£50.70 Add to
042137065302/0PCB CONNECTING CABLE£15.06 Add to
043118803492/0PCB DISPLAY BOARD(NO RETURNS ON THIS ITEM)£280.72 Add to
044119410619/0SEAT SWITCH£49.34 Add to
045137065301/0SEAT SWITCH SAFETY CABLE£20.09 Add to
0519959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
0521137-0075-01ATTACHMENT BRACKET£9.94 Add to
053112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
054112735105/0SELF-TAP SCREW TE 3.5 x 16£2.06 Add to
055387149302/02 POLE FEMALE CONNECTOR£11.33 Add to
0619945-0816-16SCREW M8 X 16£2.54 Add to
062387785217/0SUPPORT PLATE£31.63 Add to
063112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
064112735105/0SELF-TAP SCREW TE 3.5 x 16£2.06 Add to
065387149302/02 POLE FEMALE CONNECTOR£11.33 Add to
066118802897/0PLUG CAP£2.06 Add to
0719959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
0721137-0075-01ATTACHMENT BRACKET£9.94 Add to
073112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
074112735105/0SELF-TAP SCREW TE 3.5 x 16£2.06 Add to
075387149302/02 POLE FEMALE CONNECTOR£11.33 Add to
