Charge Pump-Cent Case

Charge Pump-Cent Case assembly details for Stiga TITAN 740 DCR 2015 (13-7462-11) 2015 model

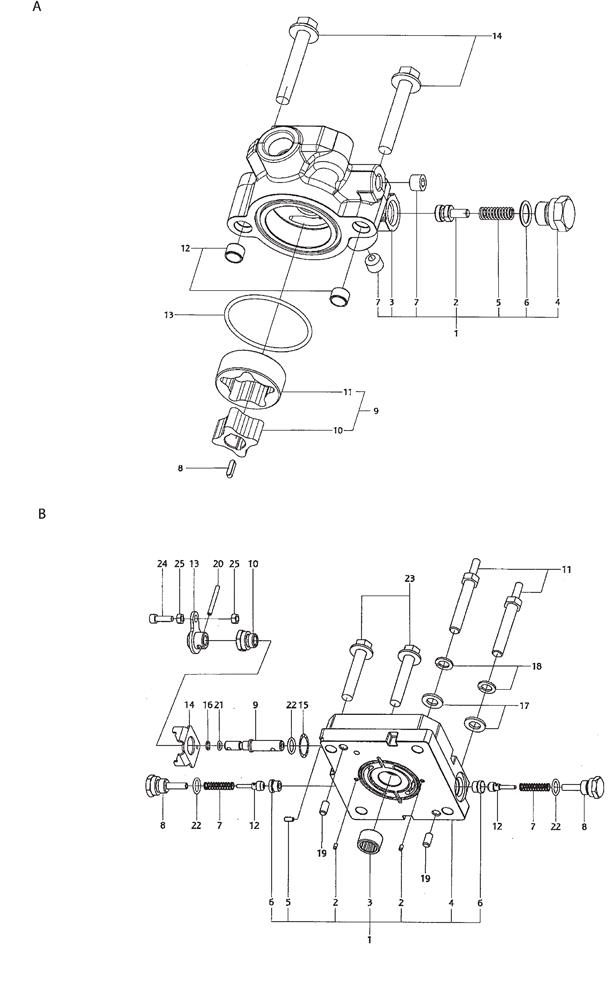

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
006	1139-1168-01	O RING	£2.87	Add to
007	1139-1547-01	SPRING (SUCTION)	£6.94	Add to
012	1139-1166-01	PIN	£4.94	Add to
012A	1139-1368-01	CHECK VALVE F	£38.16	Add to
013	1139-1372-01	BY-PASS LEVER	£61.17	Add to
013A	1139-1683-01	SEAL RING	£7.63	Add to
016	1139-1387-01	RING BACK-UP RING	£7.34	Add to
017	1139-1102-01	WASHER	£5.75	Add to
019	1139-1496-01	PARALLELL PIN	£2.00	Add to
021	1139-1112-01	O RING	£4.01	Add to
022	1139-1115-01	O RING	£1.79	Add to
