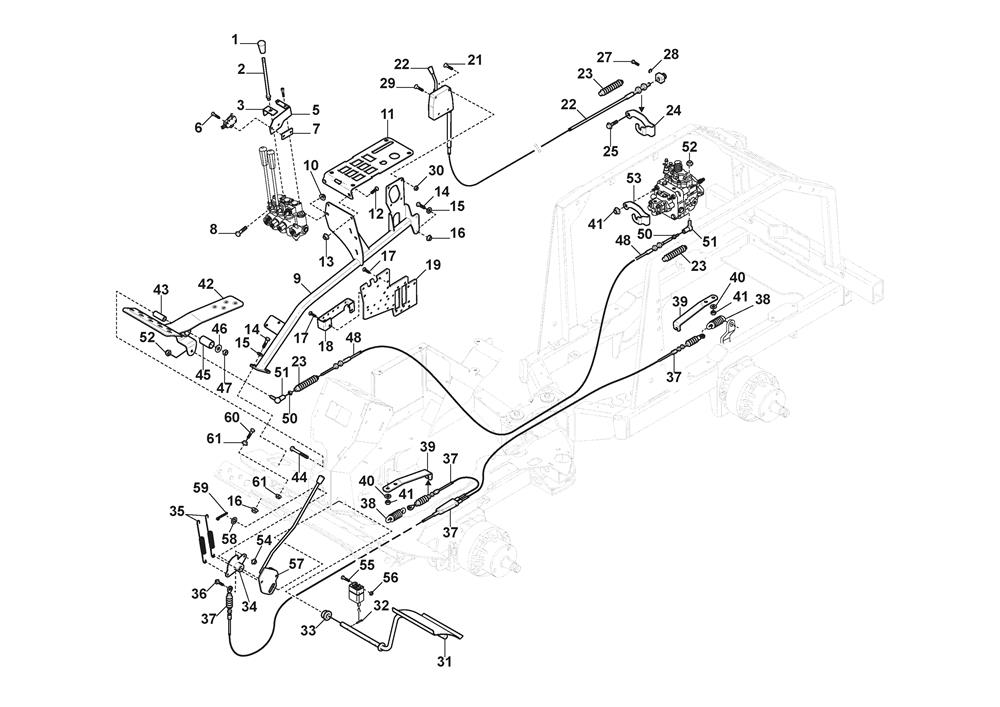

Controls assembly details for Stiga TITAN 740 DCR 2015 (13-7462-11) 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011135-2498-01KNOB£7.78 Add to
0021135-2497-01LEVER£17.59 Add to
0031135-3127-01SWITCH ARM£8.14 Add to
0069840-7716-16SCREW£2.32 Add to
007531-340-01ANCHORPLATE£38.44 Add to
008112689515/0HEX-HEAD SCREW M6 x 45£2.06 Add to
0091135-2577-01CONTROL ATTACHMENT£354.63 Add to
0129959-0616-16SCREW M6SF M6 X 16£2.06 Add to
0149959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
015112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
016112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0179893-0616-16SCREW M6 x 16£2.47 Add to
0191135-3614-01COLLECTING PLATE£101.13 Add to
0219946-0525-16SCREW M5 x 25£2.47 Add to
0221134-7257-04THROTTLE CABLE ASSEMBLY£227.14 Add to
0231135-3948-01RUBBER SLEEVE£15.13 Add to
0259959-0616-16SCREW M6SF M6 X 16£2.06 Add to
0279997-0416-16SCREW M6S M4 X 16£3.64 Add to
0289652-0007-04CIRCLIP£2.32 Add to
0299946-0525-16SCREW M5 x 25£2.47 Add to
030112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
0311134-7267-03BRAKE PEDAL£34.35 Add to
0329595-0210-00LOCATING PIN£8.32 Add to
0331134-6313-01BEARING£7.36 Add to
0351134-7401-01SPRING£6.55 Add to
036112789020/0HEX-HEAD SCREW M5 x 25£2.06 Add to
0371137-1137-01BRAKE CABLE DOUBLE ASSEMBLY£179.39 Add to
0381134-7321-01EXTENSION SPRING£5.76 Add to
0391137-0589-01BRAKE CABLE BRACKET£27.09 Add to
041112156603/0SELF-LOCKING NUT M12£2.06 Add to
0421134-7216-02DRIVE PEDAL£190.93 Add to
0431134-7217-01SPACER£9.54 Add to
0449997-1050-16SCREW M6S M10 x 50£2.87 Add to
0459548-0027-01BEARING£9.68 Add to
0469699-0030-02WASHER (10 X 26 X 2)£2.14 Add to
0471134-4775-01LOCK NUT£2.47 Add to
0481134-7054-03CONTROL CABLE£179.92 Add to
050112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
0519570-0004-00ELBOW LINK£26.18 Add to
052112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0531137-0564-01HST CABLE BRACKET£54.48 Add to
054112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
055112789008/0HEX-HEAD SCREW M5 x 20£2.06 Add to
056112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
0571137-0702-01BRAKE LOCK£39.61 Add to
058122671652/0WASHER 12.3 x 20 x 2£2.74 Add to
0599599-0080-02COTTER PIN£2.47 Add to
0609997-0835-16SCREW M6S 8 x 35£2.32 Add to
061112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
