Electrical System

Electrical System assembly details for Stiga TITAN 740 DCR 2015 (13-7462-11) 2015 model

Parts list

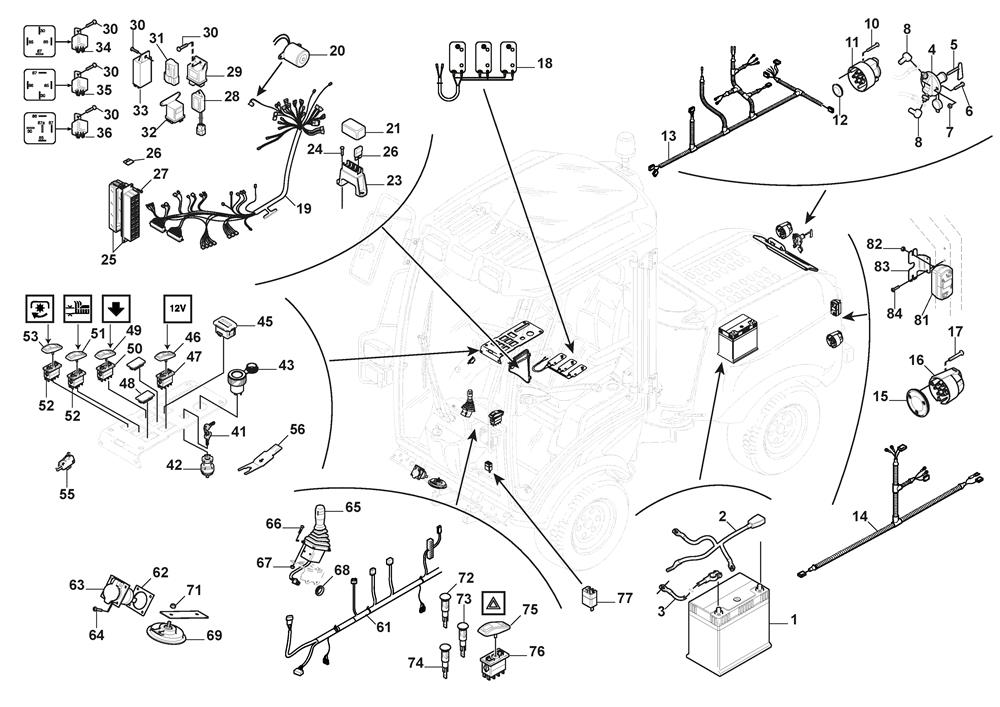

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	1137-0663-01	BATTERY HARNESS (+)	£183.07	Add to
004	9400-0316-01	MAIN SWITCH	£76.59	Add to
005	118830001/0	MAIN SWITCH KEY	£8.60	Add to
006	9959-0616-16	SCREW M6SF M6 X 16	£2.06	Add to
007	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
008	118564861/2	RED RUBBER TERMINAL COVER	£7.10	Add to
010	9947-0540-19	SCREW	£2.06	Add to
011	9400-0347-01	SOCKET 7-POLE	£28.90	Add to
012	9403-0056-01	MEMBRANE GROMMET	£5.66	Add to
013	1137-0662-01	REAR HARNESS R/H	£653.67	Add to
014	1137-0661-01	REAR HARNESS L/H	£497.66	Add to
016	084-036-01	PLUG CONTACT	£72.73	Add to
017	9946-0525-16	SCREW M5 x 25	£2.47	Add to
018	1139-0037-01	SEAT SWITCH	£101.13	Add to
019	1137-0660-01	WIRING HARNESS	£2,030.84	Add to
020	1134-7530-01	BUZZER	£42.53	Add to
021	1134-3631-01	COVER-FUSE HOLDER	£12.96	Add to
023	1134-3491-01	FUSE HOLDER	£13.90	Add to
025	9400-0342-01	FUSE BOX	£124.29	Add to
026	133340040/0	FUSE 10A	£2.47	Add to
026A	1134-3496-04	FUSE 7.5A	£2.06	Add to
026B	1134-3496-07	FUSE 30A	£5.05	Add to
026C	1134-3496-08	FUSE 40A	£4.78	Add to
028	1135-2749-01	TIMER	£204.69	Add to
029	1135-2753-01	CONTROL UNIT	£429.52	Add to
030	9893-0616-16	SCREW M6 x 16	£2.47	Add to
031	1135-2747-01	DIODE	£19.54	Add to
032	1135-2748-01	RELAY-FUEL VALVE	£129.74	Add to
033	9400-0337-01	FLASHING RELAY	£143.37	Add to
034	1134-2871-01	DECK RELAY [4 SPADE]	£45.26	Add to
035	1135-2748-01	RELAY-FUEL VALVE	£129.74	Add to
036	1134-2871-03	STARTER RELAY [5 SPADE]	£45.26	Add to
041	1139-2505-01	IGNITION KEY [PAIR]	£41.16	Add to
042	1135-2754-01	IGNITION KEY SWITCH	£156.31	Add to
043	9400-0317-02	DC-SOCKET	£17.72	Add to
045	9400-0384-01	HOUR METER	£94.31	Add to
046	9400-0322-01	SWITCH COVER-12V	£16.22	Add to
047	9400-0321-01	SWITCH	£61.60	Add to
048	1134-4129-01	COVER	£6.14	Add to
049	9400-0280-08	SWITCH COVER-SELECTOR VALVE	£9.54	Add to
050	9400-0283-01	SWITCH	£92.95	Add to
051	9400-0280-03	SWITCH COVER-HEIGHT ADJUST	£18.27	Add to
052	9400-0282-01	SWITCH C/W DIODE No returns on this item	£76.59	Add to
053	9400-0343-01	SWITCH COVER-PTO	£9.28	Add to
055	9400-0360-01	MICRO SWITCH	£8.60	Add to
056	9400-0290-01	TOOL	£27.27	Add to
061	1137-0817-01	WIRING HARNESS	£409.09	Add to
062	1134-6318-01	SEAL	£2.54	Add to
063	387149302/0	2 POLE FEMALE CONNECTOR	£11.33	Add to
064	9840-7716-16	SCREW	£2.32	Add to
065	9400-0336-01	LIGHT CONTROL SWITCH	£245.56	Add to
066	9997-0416-16	SCREW M6S M4 X 16	£3.64	Add to
067	112150000/0	SELF-LOCKING NUT M4	£1.79	Add to
068	9400-0340-01	GROMMET	£5.58	Add to
069	082-564-01	HORN	£58.24	Add to
071	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
072	9400-0320-01	PILOT LAMP [RED]	£10.33	Add to
073	9400-0346-01	PILOT LAMP [FLASHING RED]	£15.41	Add to
074	9400-0320-03	PILOT LAMP [GREEN]	£10.36	Add to
075	9400-0343-02	SWITCH [HAZARD]	£9.00	Add to
076	9400-0345-01	SWITCH [HAZARD]	£84.77	Add to
077	1134-3399-02	SWITCH	£45.26	Add to
081	9400-0382-01	REAR LAMP	£94.31	Add to
082	123120000/0	NUT M5	£2.14	Add to
083	1137-0726-01	BRACKET-REAR LAMP	£31.80	Add to
084	9893-0616-16	SCREW M6 x 16	£2.47	Add to
