Lifting Device

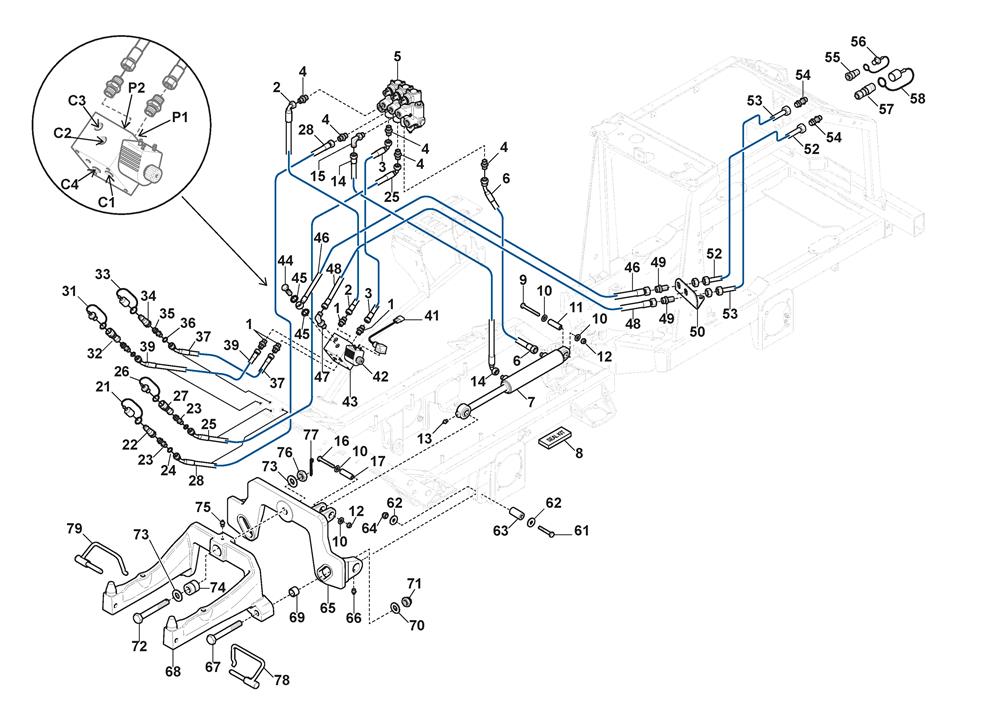

Lifting Device assembly details for Stiga TITAN 740 DCR 2015 (13-7462-11) 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-7165-01	HYDRAULIC CONNECTOR	£8.60	Add to
004	1134-7165-01	HYDRAULIC CONNECTOR	£8.60	Add to
005	1137-0641-01	HAND OPERATED VALVE	£1,369.79	Add to
007	1134-6801-01	LIFT CYLINDER	£620.31	Add to
008	1139-2083-01	SEAL KIT	£129.74	Add to
009	112691800/0	HEX-HEAD SCREW M8 x 60	£2.06	Add to
010	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
011	1134-7557-01	SHAFT	£13.17	Add to
012	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
013	080-222-01	GREASE JOINT (OBSOLETE)	N/A
016	112793905/0	HEX-HEAD SCREW M8 x 70	£2.32	Add to
017	1134-7557-02	SHAFT	£16.32	Add to
021	1134-7173-01	PLASTIC PLUG 1/4"	£13.95	Add to
022	1134-7172-01	QUICK CONNECTOR-FEMALE 1/4"	£44.09	Add to
023	1134-7296-01	HYDRAULIC COUPLING 1/4"	£19.22	Add to
024	1134-4948-01	SEAL WASHER 1/4"	£2.59	Add to
026	1134-7175-01	PLASTIC CAP	£8.87	Add to
027	1134-6042-01	QUICK COUPLING-MALE 1/4"	£32.08	Add to
031	1134-7173-01	PLASTIC PLUG 1/4"	£13.95	Add to
032	1134-7172-01	QUICK CONNECTOR-FEMALE 1/4"	£44.09	Add to
033	1134-7175-01	PLASTIC CAP	£8.87	Add to
034	1134-6042-01	QUICK COUPLING-MALE 1/4"	£32.08	Add to
035	1134-7296-01	HYDRAULIC COUPLING 1/4"	£19.22	Add to
036	1134-4948-01	SEAL WASHER 1/4"	£2.59	Add to
041	1137-0903-01	CABLE HARNESS PTO	£100.86	Add to
042	1139-2097-01	MAGNET VALVE	£388.65	Add to
043	1135-2538-01	SELECTOR VALVE	£1,015.49	Add to
045	1134-4948-01	SEAL WASHER 1/4"	£2.59	Add to
050	1137-0562-01	HYDRAULIC TUBE BRACKET	£24.86	Add to
052	1137-0596-01	HYDRAULIC HOSE 9/16"	£55.82	Add to
053	1137-0595-01	HYDRAULIC HOSE 9/16"	£55.82	Add to
055	1134-6042-01	QUICK COUPLING-MALE 1/4"	£32.08	Add to
056	1134-7173-01	PLASTIC PLUG 1/4"	£13.95	Add to
057	1134-7172-01	QUICK CONNECTOR-FEMALE 1/4"	£44.09	Add to
058	1134-7175-01	PLASTIC CAP	£8.87	Add to
061	9997-1070-12	SCREW M6S (M10 X 70)	£3.81	Add to
062	1134-5406-01	WASHER M10 10.5 x 35 x 5	£4.23	Add to
063	1134-6991-01	PIN-ACCESSORY LIFT	£13.23	Add to
064	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
065	1135-4092-01	ATTACHMENT REAR PLATE	£409.72	Add to
066	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
067	082-202-01	SCREW M6S M16 x 100 FZB 8.8	£4.52	Add to
068	1135-3003-01	IMPLEMENT ATTACHMENT	£905.50	Add to
069	1135-3054-01	BUSH	£41.16	Add to
071	112295801/0	HEXAGON NUT M16	£2.06	Add to
072	1135-3306-01	SCREW	£23.54	Add to
073	9690-0002-02	WASHER	£11.18	Add to
074	1135-3055-01	BUSH	£59.99	Add to
075	080-222-01	GREASE JOINT (OBSOLETE)	N/A
076	9747-2031-02	NUT M20	£3.15	Add to
077	9599-0101-02	COTTER PIN 5 x 45	£1.79	Add to
078	1134-7842-01	LOCK PIN L/H	£68.42	Add to
079	1134-7842-02	LOCK PIN R/H	£68.42	Add to
