Seat and Steering Wheel

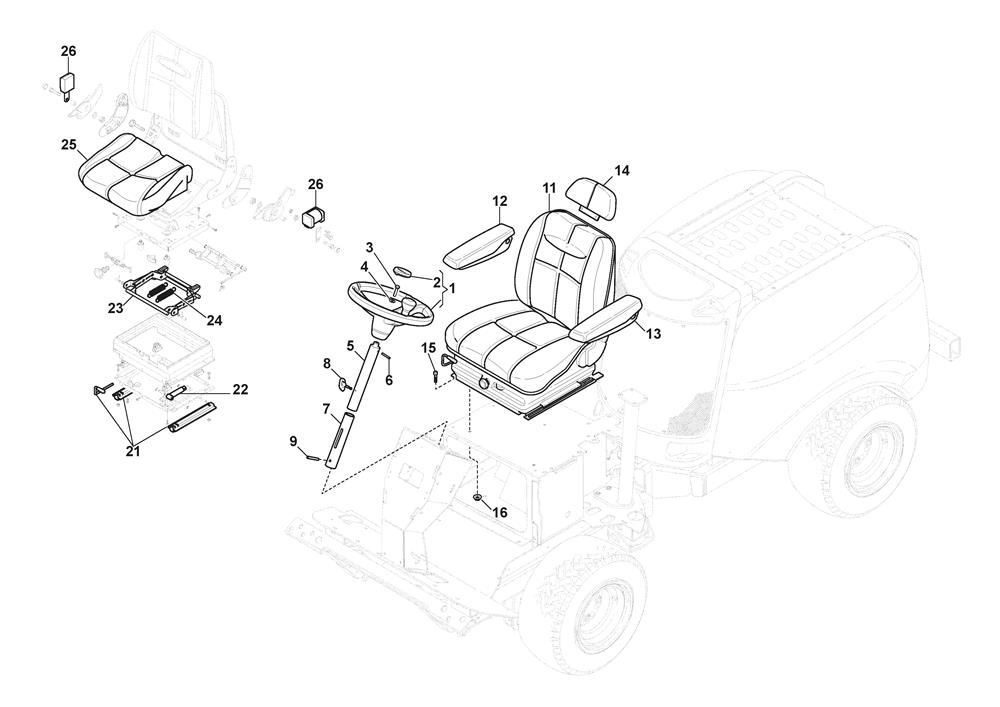

Seat and Steering Wheel assembly details for Stiga TITAN 740 DCR 2015 (13-7462-11) 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001337961200/0STEERING WHEEL [BLACK]£287.40 Add to
002337580550/0STEERING WHEEL PLATE£8.75 Add to
003112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
004112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
005387520101/1UPPER STEERING COLUMN£95.67 Add to
006112620300/0SPIROL PIN 6 x 50£2.02 Add to
0071134-5216-01INNER STEERING TUBE£87.50 Add to
008337394201/0WING NUT£13.64 Add to
0111134-7215-01SEAT£1,590.14 Add to
0121134-7532-02ARM REST R/H£170.61 Add to
0131134-7532-01ARM REST L/H£170.61 Add to
0141134-7258-01NECK REST£109.88 Add to
0159930-0820-16SCREW£2.06 Add to
016112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0211139-0031-01SEAT RAILS C/W ADJUSTING LEVER£143.37 Add to
0221139-0028-01SEAT DAMPER£79.98 Add to
0231139-0032-01SPRING FRAME£211.50 Add to
0241139-0029-01SPRING£17.45 Add to
0251139-0036-01BOTTOM SEAT£393.97 Add to
0261134-7604-01SAFETY BELT£233.44 Add to
