Wheel Engine

Wheel Engine assembly details for Stiga TITAN 740 DCR 2015 (13-7462-11) 2015 model

Parts list

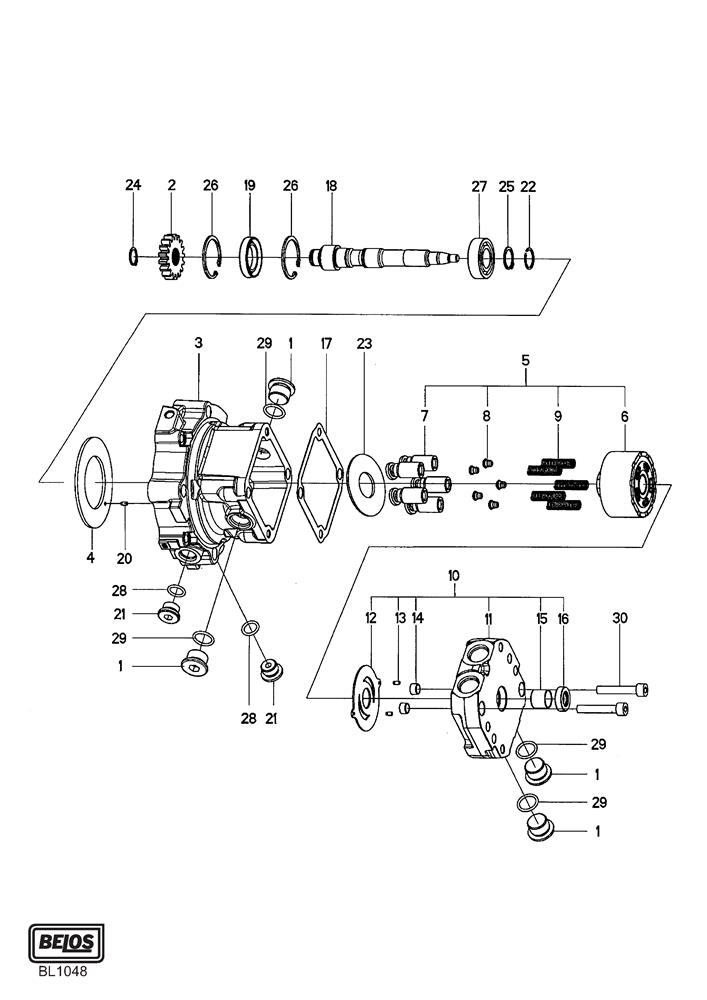

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0041139-1627-01PLATE£66.11 Add to
0051139-1628-01PLUNGER BLOCK ASSEMBLY£1,458.36 Add to
0121139-1630-01VALVE PLATE£244.45 Add to
0141139-1166-01PIN£4.94 Add to
0161139-1614-01SEAL£56.15 Add to
0171135-3981-01GASKET WHEEL MOTOR£16.22 Add to
0191139-1633-01OIL SEAL£149.23 Add to
0211139-1572-01PLUG£14.74 Add to
0231139-1616-01THRUST PLATE£122.47 Add to
0261139-1444-01CIRCLIP£7.57 Add to
0281139-1115-01O RING£1.79 Add to
0291139-1116-01O RING£2.87 Add to
