Wheels Engines

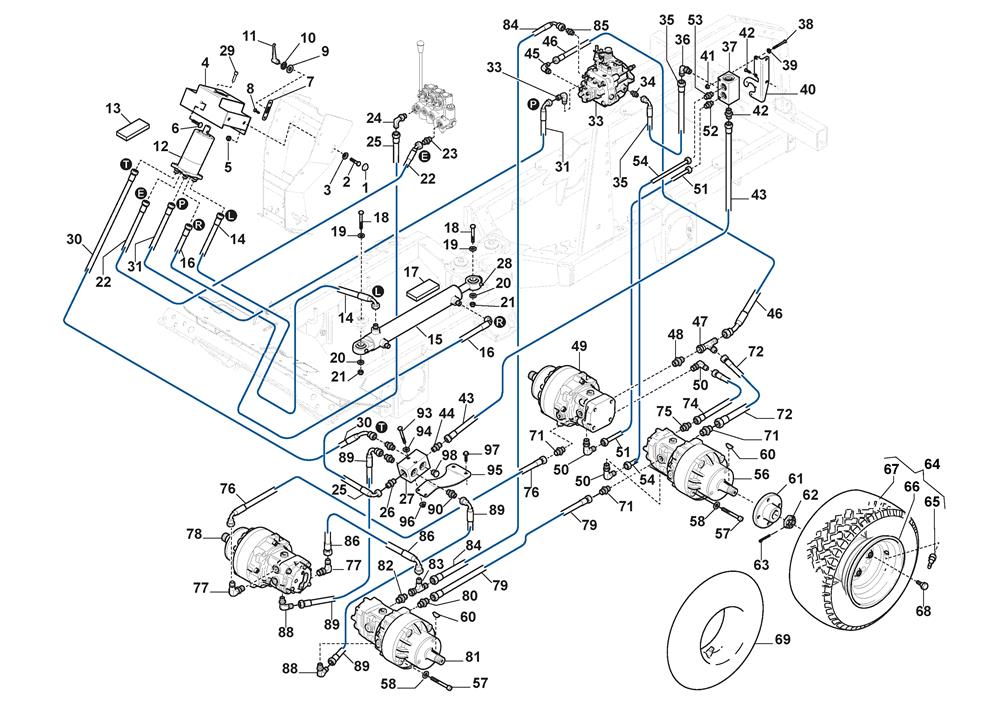

Wheels Engines assembly details for Stiga TITAN 740 DCR 2015 (13-7462-11) 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	9403-0053-01	COVER CAP	£5.66	Add to
002	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
003	9403-0052-01	CAP RING	£5.21	Add to
004	1134-6995-01	BRACKET-STEERING SERVO	£124.29	Add to
005	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
006	9897-0820-16	SCREW M8 x 20	£2.32	Add to
008	9893-0616-16	SCREW M6 x 16	£2.47	Add to
009	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
010	081-470-01	LOCK WASHER 5/16" - NLA	£2.06	Add to
011	1134-7123-01	LOCK LEVER-ADJUSTABLE	£35.71	Add to
012	1134-7214-01	STEERING BOOSTER	£1,090.44	Add to
013	1139-2081-01	SEAL KIT	£197.87	Add to
015	1135-2808-01	STEERING CYLINDER	£579.42	Add to
017	1139-2083-01	SEAL KIT	£129.74	Add to
018	112691800/0	HEX-HEAD SCREW M8 x 60	£2.06	Add to
019	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
021	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
024	1134-7073-01	HYDRAULIC COUPLING 90°	£34.35	Add to
027	1137-0575-01	CONNECTION BLOCK	£212.98	Add to
028	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
029	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
031	1137-0195-03	HYDRAULIC HOSE	£116.11	Add to
033	1137-1128-01	HYDRAULIC PUMP KPS-23 ALPH	£6,800.10	Add to
034	1134-5809-01	HYDRAULIC COUPLING	£17.86	Add to
037	1137-0574-01	CONNECTION BLOCK	£241.29	Add to
039	112521330/0	WASHER M6 6.4 X 12 X 1.6	£2.06	Add to
040	1137-0555-01	BRACKET-HYDRAULIC BLOCK	£45.26	Add to
041	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
042	9893-0616-16	SCREW M6 x 16	£2.47	Add to
045	1137-0772-01	HYDRAULIC COUPLING	£21.26	Add to
049	1137-0961-01	WHEEL MOTOR KWM 13S-186D	£3,931.64	Add to
052	1134-7073-01	HYDRAULIC COUPLING 90°	£34.35	Add to
054	1137-0195-16	HYDRAULIC HOSE L=1055mm 90° 3/8"	£51.81	Add to
056	1137-0960-01	WHEEL MOTOR WITH ORIFICE	£2,466.75	Add to
057	9939-1213-02	SCREW	£3.69	Add to
058	122671652/0	WASHER 12.3 x 20 x 2	£2.74	Add to
060	1134-6996-01	WOODRUFF KEY	£7.78	Add to
061	1134-6971-01	WHEEL HUB	£124.29	Add to
062	9781-2431-32	HEX.CASTLE NUT M24 X 2	£9.54	Add to
063	9599-0101-02	COTTER PIN 5 x 45	£1.79	Add to
064	1134-7308-02	WHEEL ASSEMBLY 20"	£346.76	Add to
065	125950000/0	PNEUMATIC VALVE	£5.73	Add to
066	1134-7309-01	WHEEL RIM 10"	£259.19	Add to
067	9545-0127-01	TYRE 20 x 10-10	£170.61	Add to
068	1134-7041-01	WHEEL SCREW	£4.91	Add to
069	9545-0211-01	INNER TUBE (FOR 20"" WHEELS)	£37.08	Add to
078	1137-0961-01	WHEEL MOTOR KWM 13S-186D	£3,931.64	Add to
081	1137-0960-01	WHEEL MOTOR WITH ORIFICE	£2,466.75	Add to
085	082-043-01	HYDRAULIC COUPLING JIC 1 1/16-7/8	£7.90	Add to
094	112521330/0	WASHER M6 6.4 X 12 X 1.6	£2.06	Add to
095	1137-0597-01	HYDRAULIC BLOCK BRACKET	£45.26	Add to
096	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
097	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
