Electrical

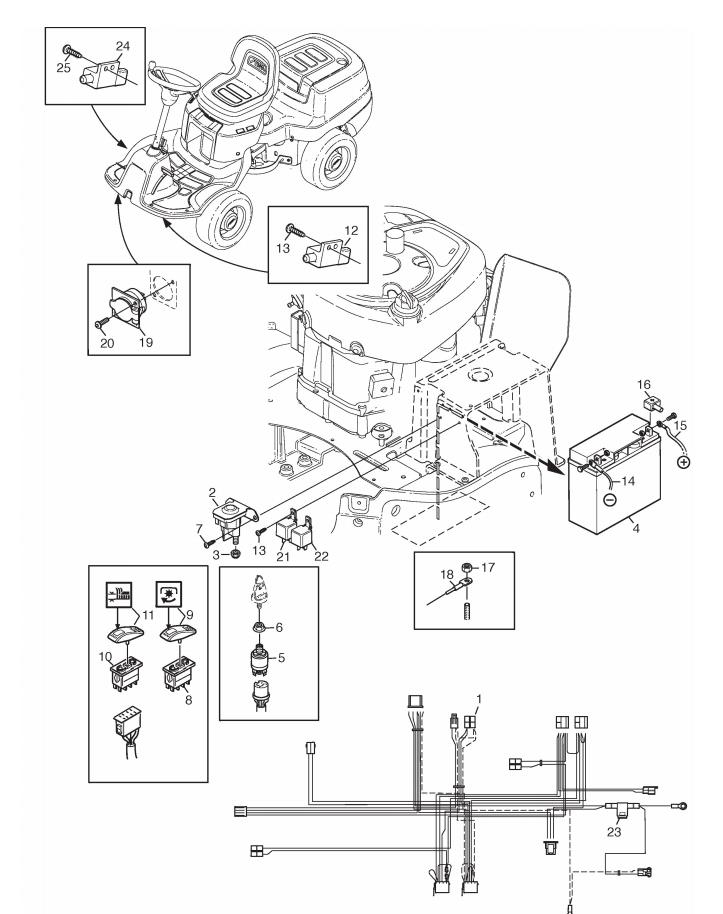

Electrical assembly details for Stiga Villa 520 HST 2015 (13-5721-71) 2015 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	187040307/0	WIRING LOOM	£266.01	Add to
002	118736112/0	SOLENOID	£39.80	Add to
003	9743-5121-32	LOCK NUT 5/16"	£1.79	Add to
004	118120007/0	BATTERY 12V 18AH [No Returns on This item]	£103.58	Add to
005	1134-4093-01	IGNITION SWITCH	£67.05	Add to
006	1134-4749-01	NUT	£5.05	Add to
007	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
008	9400-0282-01	SWITCH C/W DIODE No returns on this item	£76.59	Add to
009	9400-0343-01	SWITCH COVER-PTO	£9.28	Add to
010	9400-0282-01	SWITCH C/W DIODE No returns on this item	£76.59	Add to
011	9400-0280-03	SWITCH COVER-HEIGHT ADJUST	£18.27	Add to
012	1134-3399-01	SWITCH	£45.26	Add to
013	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
014	1134-2167-02	CABLE (-)	£20.58	Add to
015	1134-0234-02	BATTERY CABLE (+)	£24.95	Add to
016	1134-2310-01	GUARD CAP (+)	£9.28	Add to
017	112361005/0	HEXAGON NUT 1/4" UNC	£2.71	Add to
018	133320027/0	FASTPOINT BAND ART. 0387.AA01 L=290	£2.06	Add to
019	387149302/0	2 POLE FEMALE CONNECTOR	£11.33	Add to
020	112735105/0	SELF-TAP SCREW TE 3.5 x 16	£2.06	Add to
021	1134-2871-01	DECK RELAY [4 SPADE]	£45.26	Add to
022	1134-2871-03	STARTER RELAY [5 SPADE]	£45.26	Add to
023	1134-3496-06	FUSE 20A	£2.06	Add to
024	1134-3399-02	SWITCH	£45.26	Add to
025	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
