Engine

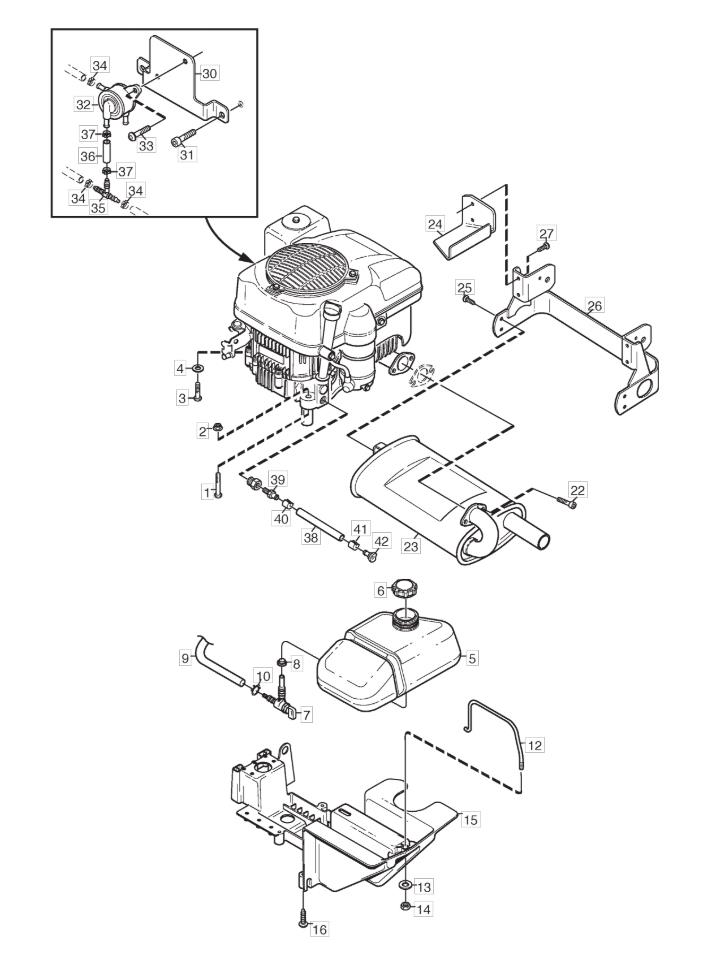

Engine assembly details for Stiga VILLA SILENT (13-2728-14) 2015 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	112691115/0	HEX-HEAD SCREW M8 x 40	£2.06	Add to
002	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
003	9987-5132-12	SCREW U6S 5/16" UNF x 32	£2.06	Add to
004	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
005	1134-6626-01	FUEL TANK	£45.26	Add to
006	125795001/1	FUEL TANK CAP	£8.32	Add to
007	1134-3224-01	FUEL SHUT-OFF VALVE	£24.95	Add to
008	1134-3225-01	GROMMET	£7.57	Add to
009	1134-2975-15	FUEL HOSE (L=1400)	£32.99	Add to
010	9578-0023-02	HOSE CLAMP	£5.73	Add to
012	1134-4808-01	TANK CLAMP	£14.32	Add to
013	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
014	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
015	1134-4807-02	BATTERY SUPPORT PLATE	£91.58	Add to
016	9838-8822-19	SCREW K60 x 22	£2.06	Add to
022	9935-0820-16	SCREW ESLOCK	£4.90	Add to
023	387753301/0	MUFFLER	£331.01	Add to
025	9893-0616-16	SCREW M6 x 16	£2.47	Add to
026	1134-6699-01	HEAT GUARD	£93.36	Add to
027	9893-0616-16	SCREW M6 x 16	£2.47	Add to
031	112760515/0	HEXAGONAL SCREW TC M8 x 20	£0.79	Add to
032	1137-0114-01	FUEL PUMP	£90.57	Add to
033	9893-0616-16	SCREW M6 x 16	£2.47	Add to
034	9578-0023-07	HOSE CLAMP	£4.52	Add to
036	1134-2975-15	FUEL HOSE (L=1400)	£32.99	Add to
037	9578-0023-02	HOSE CLAMP	£5.73	Add to
038	1134-5827-05	OIL DRAIN ASSEMBLY	£35.71	Add to
039	1134-5825-01	NIPPLE	£58.87	Add to
040	9578-0023-04	HOSE CLAMP	£5.32	Add to
041	9578-0023-00	HOSE CLAMP	£24.95	Add to
042	1134-5826-01	PLUG	£24.95	Add to
