Engine

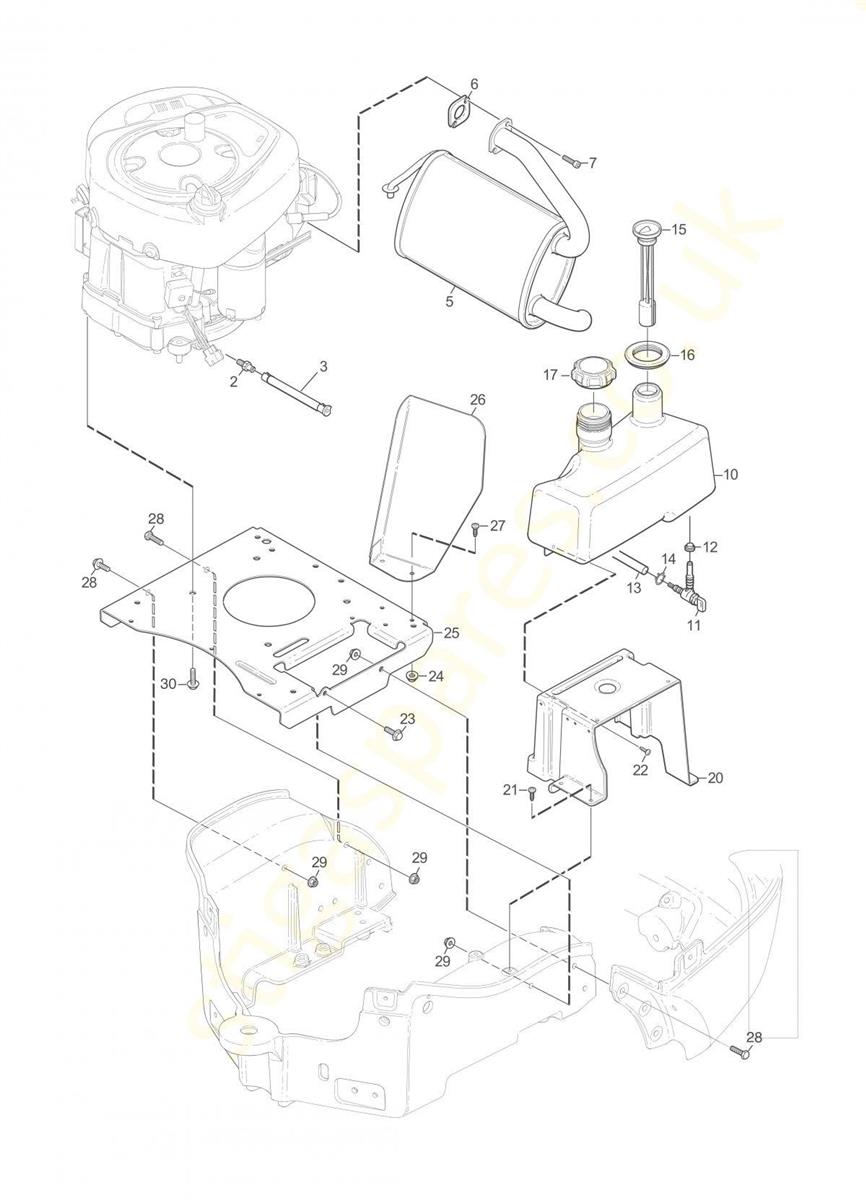

Engine assembly details for Stiga Stiga Park 120 2F5820241 2016 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	1134-5825-01	NIPPLE	£58.87	Add to
003	1137-1018-01	Oil Discharge Extension	£10.95	Add to
005	1137-0819-01	MUFFLER	£197.87	Add to
006	1134-0433-00	MUFFLER GASKET	£5.87	Add to
007	1134-4930-01	SCREW	£2.32	Add to
010	337735116/0	FUEL TANK	£64.32	Add to
011	1134-3224-01	FUEL SHUT-OFF VALVE	£24.95	Add to
012	1134-3225-01	GROMMET	£7.57	Add to
013	1134-2975-15	FUEL HOSE (L=1400)	£32.99	Add to
014	9578-0023-02	HOSE CLAMP	£5.73	Add to
015	1137-0838-01	FUEL LEVEL INDICATOR	£57.52	Add to
016	1135-2528-01	RUBBER SLEEVE	£9.23	Add to
017	125795001/1	FUEL TANK CAP	£8.32	Add to
020	1137-0914-01	TANK BRACKET	£31.10	Add to
021	9893-0616-16	SCREW M6 x 16	£2.47	Add to
022	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
023	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
024	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
025	1137-0777-01	ENGINE PLATE	£84.77	Add to
026	1137-1026-01	TANK GUARD	£32.10	Add to
027	9893-0616-16	SCREW M6 x 16	£2.47	Add to
028	112793301/0	HEX-HEAD SCREW M8 x 25	£2.06	Add to
029	1137-0155-01	SPACER	£4.52	Add to
030	9955-3725-16	SCREW 3/8" x 25	£2.87	Add to
