Wheel

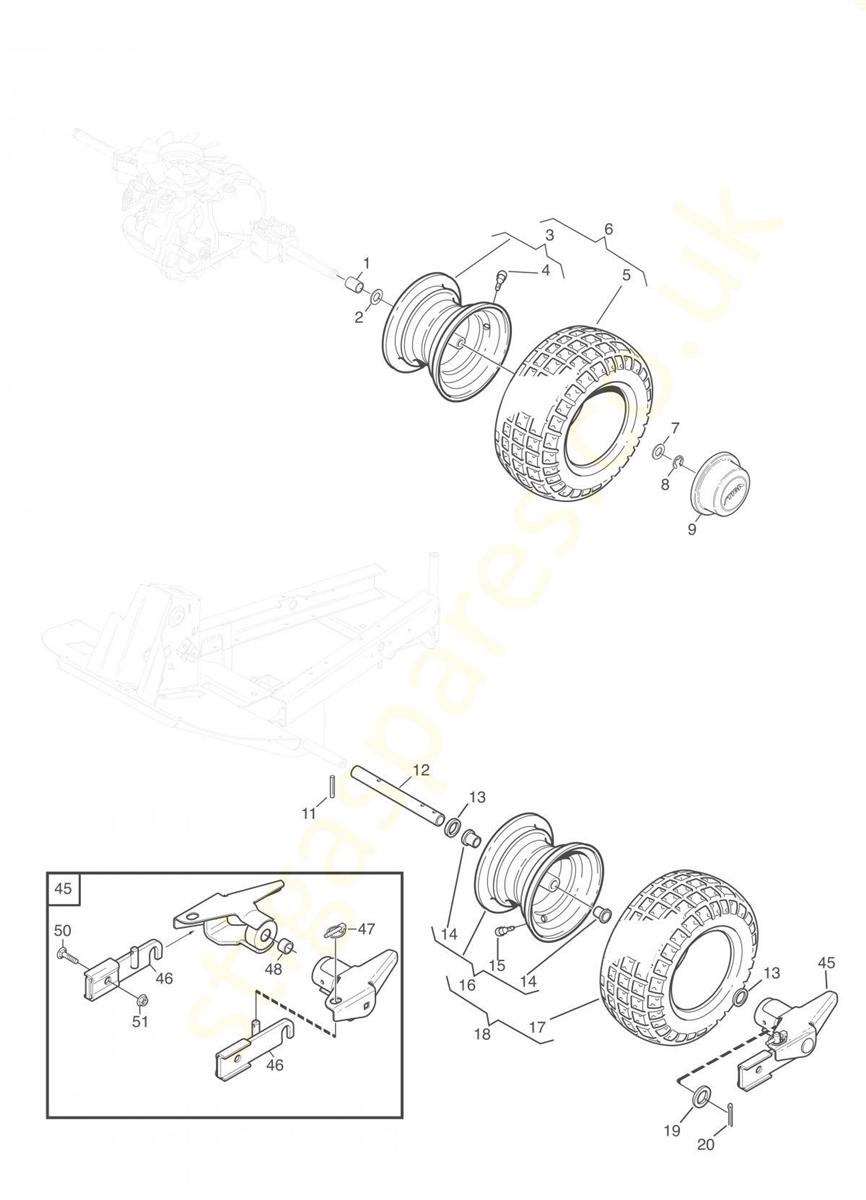

Wheel assembly details for Stiga Stiga Park 120 2F5820241 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-4845-02HUB SLEEVE£9.00 Add to
0021134-0341-01WASHER£7.10 Add to
003187000451/1REAR WHEEL RIM 4.375 x 8£76.59 Add to
004125950000/0PNEUMATIC VALVE£5.73 Add to
005137950010/0TYRE 160/50-8 TURF GRIP£76.59 Add to
006387680301/0REAR WHEEL ASSEMBLY 14"£162.60 Add to
0071134-4981-01WASHER£3.41 Add to
0089653-0001-04CIRCLIP 3/4"£2.61 Add to
0091137-1006-01HUB CAP£7.36 Add to
011112645710/0ROLL PIN D=6 x 32£2.47 Add to
0121134-0075-00FRONT AXLE£19.09 Add to
0131134-0341-01WASHER£7.10 Add to
014137038001/015" FRONT WHEEL BUSH£7.27 Add to
015125950000/0PNEUMATIC VALVE£5.73 Add to
016187000450/1FRONT WHEEL RIM 4.375 x 8£68.42 Add to
017137950010/0TYRE 160/50-8 TURF GRIP£76.59 Add to
018387680303/0WHEEL ASSEMBLY 14"£155.53 Add to
0199699-0042-02WASHER 20 x 36 x 3£2.47 Add to
0209599-0080-02COTTER PIN£2.47 Add to
04513-0992-61Quick connections (OBSOLETE)N/A
0461134-7465-01ATTACHMENT HOOK PLATES [LH & RH]£53.42 Add to
0471137-0077-01LOCKING PIN£3.81 Add to
0489548-0026-01BEARING 20E7x26-20£32.99 Add to
0509898-1035-16SCREW 10 x 35£3.15 Add to
0519739-1031-22NUT M10£2.32 Add to
