Controls

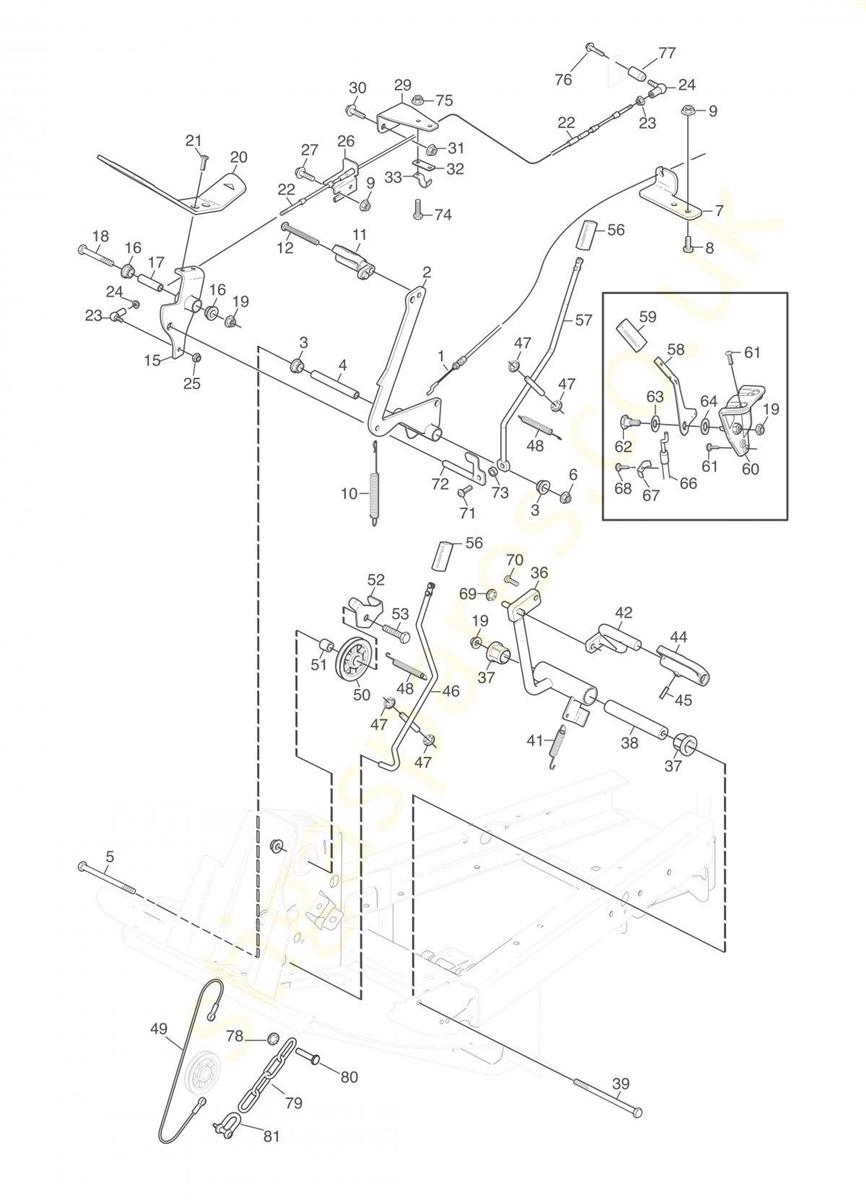

Controls assembly details for Stiga Stiga Park 220 2F5820321 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1137-0992-01	BRAKE CABLE	£41.16	Add to
002	387500007/0	PARKING PEDAL	£41.87	Add to
003	1134-6313-01	BEARING	£7.36	Add to
004	1137-0912-01	SPACER	£4.60	Add to
005	9997-0811-02	SCREW M6S M8 x 110	£3.69	Add to
006	1137-0155-01	SPACER	£4.52	Add to
007	1137-0847-01	CABLE BRACKET	£6.58	Add to
008	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
009	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
010	1131-1507-00	SPRING	£34.35	Add to
011	1137-0959-01	PARKING BRAKE PEDAL	£4.78	Add to
012	9930-0870-12	SCREW M8 x 70	£2.14	Add to
015	387318259/0	BRACKET	£24.95	Add to
016	1134-6313-01	BEARING	£7.36	Add to
017	1137-0802-01	SPACER TUBE	£4.60	Add to
018	112691800/0	HEX-HEAD SCREW M8 x 60	£2.06	Add to
019	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
020	337506741/0	HYDROSTATIC PEDAL	£34.35	Add to
021	9893-0616-16	SCREW M6 x 16	£2.47	Add to
022	1134-2766-10	SPEED CONTROL CABLE	£87.07	Add to
023	9570-0001-00	ELBOW LINK	£18.90	Add to
024	9739-0531-22	NUT M5	£2.47	Add to
025	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
026	337774041/0	CABLE BRACKET	£7.92	Add to
027	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
028	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
029	1137-0928-01	BRACKET	£6.58	Add to
030	9959-0825-16	SCREW FLANGED TE M6SF M8 x 25	£2.06	Add to
031	1137-0155-01	SPACER	£4.52	Add to
032	1134-0266-00	ATTACHING CLAMP	£7.36	Add to
033	1134-0267-00	CLAMP PLATE	£7.11	Add to
034	112789008/0	HEX-HEAD SCREW M5 x 20	£2.06	Add to
035	9739-0531-22	NUT M5	£2.47	Add to
036	1137-0784-01	LIFT PEDAL	£59.68	Add to
037	1134-0068-00	BUSH	£4.78	Add to
038	1137-0795-01	SPACER TUBE	£7.36	Add to
039	9997-0814-02	SCREW M6S M8 x 140	£4.52	Add to
040	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
041	1134-5824-01	SPRING	£5.87	Add to
042	1137-0877-01	LIFTING PEDAL	£34.80	Add to
043	9930-0820-16	SCREW	£2.06	Add to
044	1137-0958-01	CUTTING DECK PEDAL	£5.19	Add to
045	9595-0230-00	PIN	£4.01	Add to
046	1137-0792-01	BRAKE ROD	£20.99	Add to
047	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
048	1137-1092-01	SPRING	£2.18	Add to
049	187000206/0	LIFT DECK CABLE	£32.99	Add to
050	1134-0072-02	STEERING PULLEY	£7.78	Add to
051	1134-0041-01	BUSH	£9.41	Add to
052	1137-0713-02	BRACKET	£4.52	Add to
053	112794300/0	SCREW TE M10 x 30	£1.91	Add to
054	9739-1031-22	NUT M10	£2.32	Add to
056	1137-0952-01	KNOB	£2.06	Add to
057	1137-0837-01	PARKING BRAKE LEVER	£17.52	Add to
058	1137-0894-01	THROTTLE CONTROL LEVER	£3.55	Add to
059	1137-0952-01	KNOB	£2.06	Add to
060	1137-0873-01	THROTTLE PLATE	£5.60	Add to
061	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
062	1134-0240-00	SCREW	£9.14	Add to
063	1134-4242-01	SPACER WASHER	£4.78	Add to
064	9665-0002-00	BOWL WASHER	£2.61	Add to
065	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
066	1134-4197-01	THROTTLE CABLE	£24.46	Add to
067	9500-9991-00	CABLE CLAMP	£7.78	Add to
068	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
069	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
070	9930-0820-16	SCREW	£2.06	Add to
071	9893-0616-16	SCREW M6 x 16	£2.47	Add to
072	1137-0825-01	LOCKING ARM	£8.73	Add to
073	1137-0872-01	SPACER	£2.06	Add to
074	112789008/0	HEX-HEAD SCREW M5 x 20	£2.06	Add to
075	9739-0531-22	NUT M5	£2.47	Add to
076	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
077	1134-4013-01	SPACER	£20.24	Add to
078	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
079	1134-6368-01	CHAIN [4 LINKS]	£11.43	Add to
080	137510315/0	SPRING GUIDE PIN	£8.04	Add to
081	1134-2629-01	LIFT LINK	£15.69	Add to
