Frame

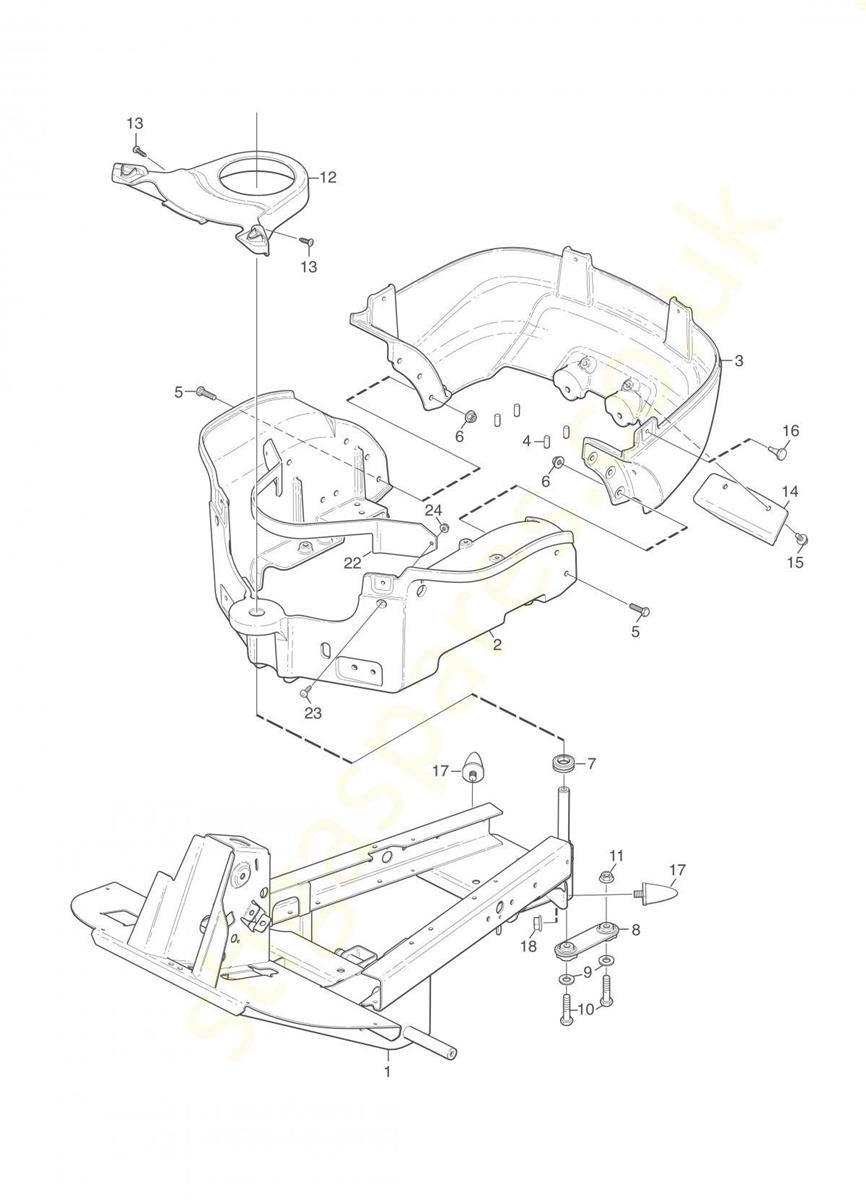

Frame assembly details for Stiga Stiga Park 220 2F5820321 2016 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	387800019/1	FRONT FRAME ASSEMBLY	£456.94	Add to
002	1137-0869-01	REAR FRAME FRONT PART	£281.18	Add to
003	1137-0870-01	REAR FRAME REAR PART	£379.81	Add to
004	112390007/0	ROUND THREAD INSERT	£1.58	Add to
005	9959-0825-16	SCREW FLANGED TE M6SF M8 x 25	£2.06	Add to
006	1137-0155-01	SPACER	£4.52	Add to
007	9547-0008-01	BEARING	£10.25	Add to
008	1137-0963-01	LINK PLATE	£40.71	Add to
009	9699-0109-02	WASHER 10.5 x 40 x 2	£2.32	Add to
010	9997-1040-16	SCREW M6S 10 x 40	£7.23	Add to
011	9739-1031-22	NUT M10	£2.32	Add to
012	1137-0906-01	BELT GUIDE	£9.68	Add to
013	9893-0616-16	SCREW M6 x 16	£2.47	Add to
014	1137-0893-01	TOWING PLATE	£18.61	Add to
015	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
016	127275000/0	RUBBER GROMMET FOR BRAKE PEDAL	£3.55	Add to
017	1137-0064-01	RUBBER CONE	£42.53	Add to
018	1137-0155-01	SPACER	£4.52	Add to
022	1137-0923-01	BELT PROTECTION GUARD	£12.05	Add to
023	112727801/0	SCREW TCB TORX M6 x 20	£2.06	Add to
024	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
