Transmission 2

Transmission 2 assembly details for Stiga Stiga Park 220 2F5820321 2016 model

Parts list

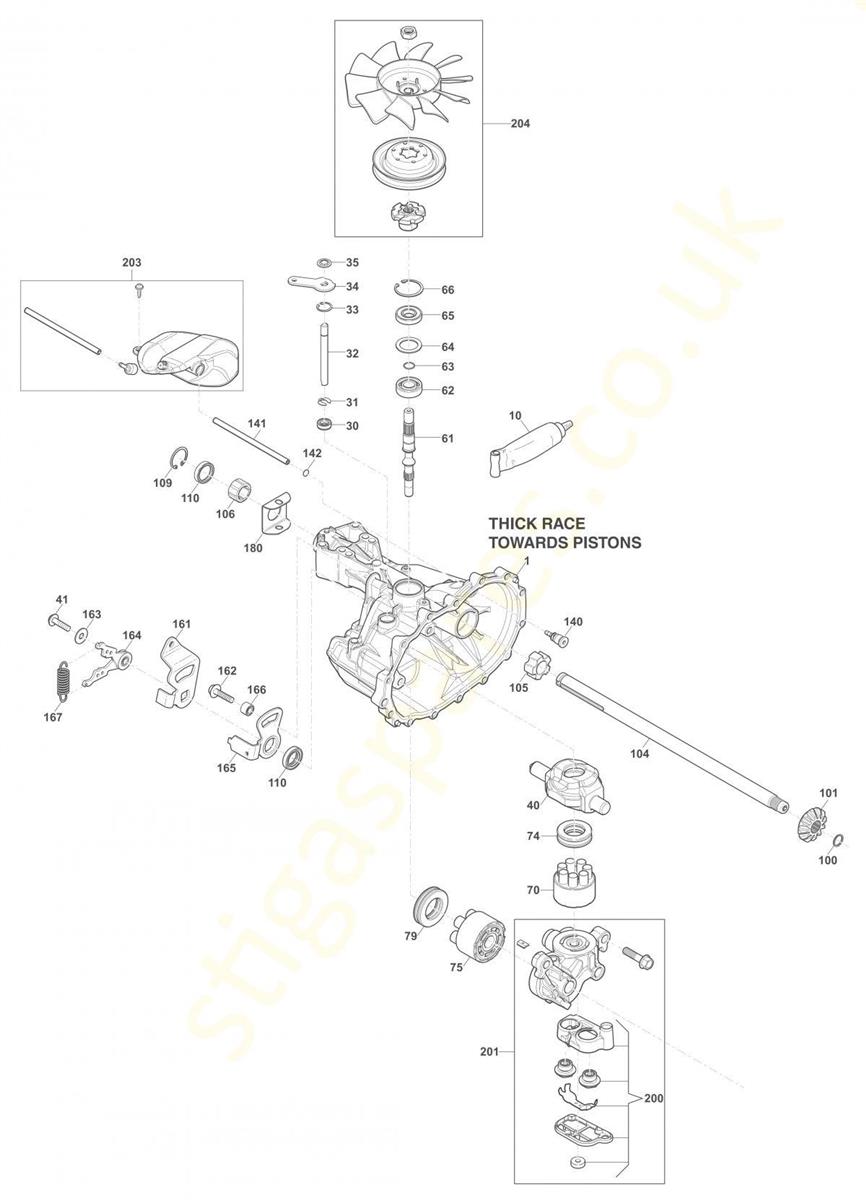

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118870120/0MAIN HOUSING£685.16 Add to
0101139-2022-01SEALANT TUBE£135.53 Add to
030118870079/0SEAL 0.375 X 0.75 X 0.25£10.09 Add to
031118870081/0RETAINING RING 0.375£11.78 Add to
0321139-2203-01BY-PASS ROD£21.76 Add to
033118870080/0RETAINING RING 0.750£11.78 Add to
034118870091/0BY-PASS ARM£14.74 Add to
035118870082/0RETAINING RING 0.750£11.78 Add to
040118870090/0SWASH PLATE£102.48 Add to
041118870083/0SCREW 5/16-24 x 1.00£18.82 Add to
061118870092/0INPUT DRIVE SHAFT£91.58 Add to
0621139-2001-01BALL BEARING (OBSOLETE)N/A
0631139-2003-01WIRE RETAINING RING (OBSOLETE)N/A
0641139-2004-01SPACER (OBSOLETE)N/A
0651139-2000-01SEAL RING£31.40 Add to
0661139-2002-01RETAINING RING (OBSOLETE)N/A
070118870125/0PUMP BLOCK ASSEMBLY£132.33 Add to
074118870093/0THRUST BEARING 27 x 47 x 14£41.16 Add to
0751139-2063-01CYLINDER BLOCK£232.10 Add to
0791139-2021-01THRUST BEARING£43.89 Add to
100118870072/0RETAINING RING£6.27 Add to
101118870063/0GEAR 12T£30.17 Add to
104118870115/0AXLE SHAFT 0.75 x 16.48 (L/H KEY)£128.77 Add to
105118870086/0AXLE BUSH£10.56 Add to
106118870085/0AXLE BUSH£8.44 Add to
109118870084/0RETAINING RING 1.25£11.78 Add to
1101139-2204-01SEAL£8.87 Add to
1401139-2038-01FITTING 1381-1174HST£35.98 Add to
141118870102/0TUBE 0.16 X 0.28 X 5.5£6.09 Add to
1421139-2075-01O RING£6.09 Add to
161118870103/0CONTROL ARM£22.12 Add to
1621139-2026-01BOLT£7.04 Add to
1631139-2011-01FLAT WASHER£5.71 Add to
164118870107/0BI-DIRECTIONAL RETURN ARM£28.12 Add to
165118870108/0NEUTRAL ARM£18.36 Add to
166118870104/0BUSH 0.315 X 0.618 X 0.390£5.46 Add to
167118870089/0EXTENSION SPRING£9.54 Add to
180118870112/0SPRING PLATE£13.47 Add to
200118870123/0FILTER KIT (OBSOLETE) (OBSOLETE)N/A
201118870127/0CENTER SECTION KIT£367.61 Add to
203118870122/0EXPANSION TANK KIT£65.69 Add to
204118870061/0HYDRO FAN KIT£140.35 Add to
