Power take-off (1)

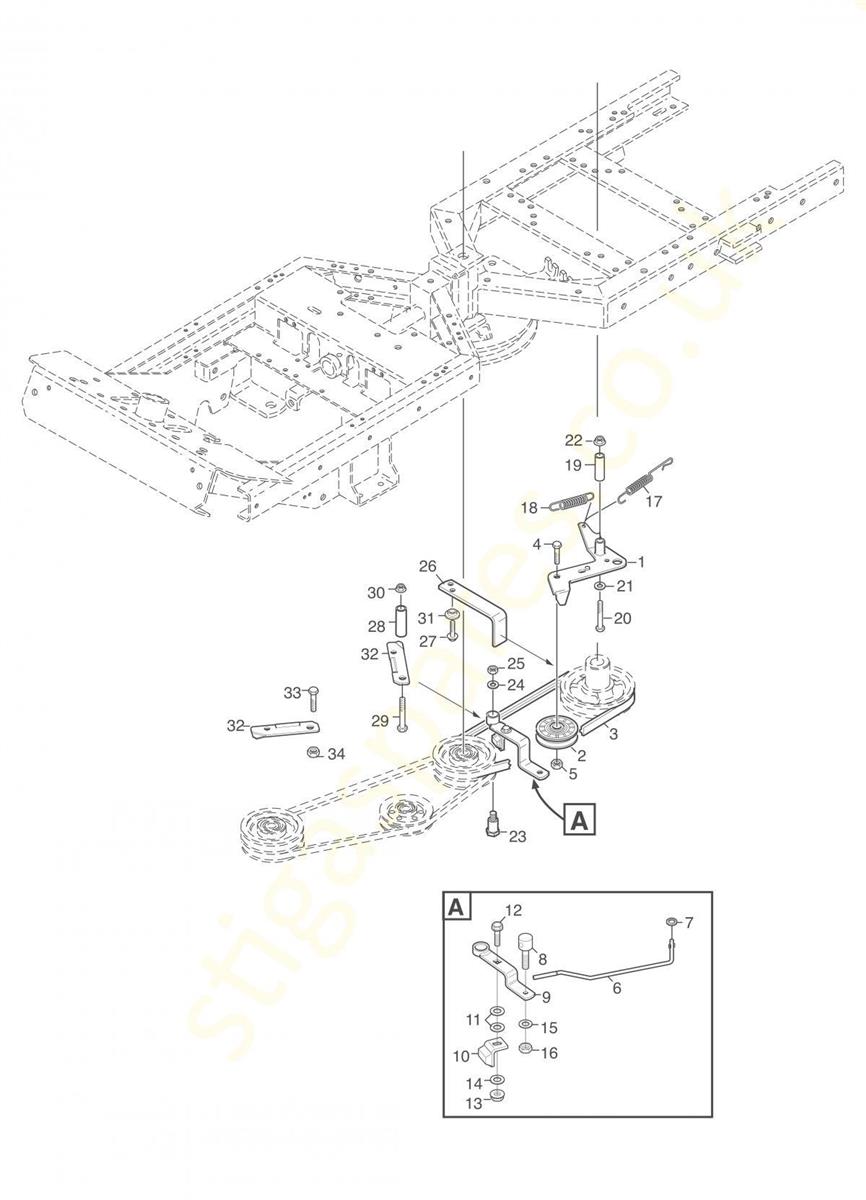

Power take-off (1) assembly details for Stiga Stiga Park 340 X 2F6130511 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-2018-02TENSION ARM£39.29 Add to
002387605008/0TENSION PULLEY [GREY]£35.71 Add to
0031134-9173-01PTO DRIVE BELT [KEVLAR]£31.63 Add to
004112794300/0SCREW TE M10 x 30£1.91 Add to
005112295200/0HEXAGON NUT M10£1.79 Add to
006137033100/0BRAKE ROD£22.63 Add to
0079675-0008-02STARLOCK WASHER D=5£4.01 Add to
0081134-4170-01PIVOT BOLT£14.32 Add to
009387318251/0BRAKE ARM£32.99 Add to
0101134-4164-03BRAKE PAD£32.99 Add to
011112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
012112818700/0SCREW M8 x 25£2.81 Add to
013112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0149699-0090-02WASHER 8.4 x 18 x 1.5£2.32 Add to
015112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
016112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0174231-0013-00SPRING£8.87 Add to
0181135-3307-01BRAKE SPRING£23.72 Add to
0191134-1565-10SPACER£8.73 Add to
020112691800/0HEX-HEAD SCREW M8 x 60£2.06 Add to
021112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
0221137-0155-01SPACER£4.52 Add to
0231134-4163-02SHOULDER BOLT£8.87 Add to
024337670201/0WASHER£3.64 Add to
0259739-1031-22NUT M10£2.32 Add to
0261134-3958-01BELT GUIDE£17.45 Add to
0279893-0616-16SCREW M6 x 16£2.47 Add to
0281134-0041-03BUSH£11.59 Add to
029112794950/0SCREW M10 x 80£4.11 Add to
0309739-1031-22NUT M10£2.32 Add to
031325160039/0SPACER£2.06 Add to
032337546547/0PLATE£5.64 Add to
033112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
034112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
