Assembly parts

Assembly parts assembly details for Stiga Stiga Park 420 P 2F6220511 2016 model

Parts list

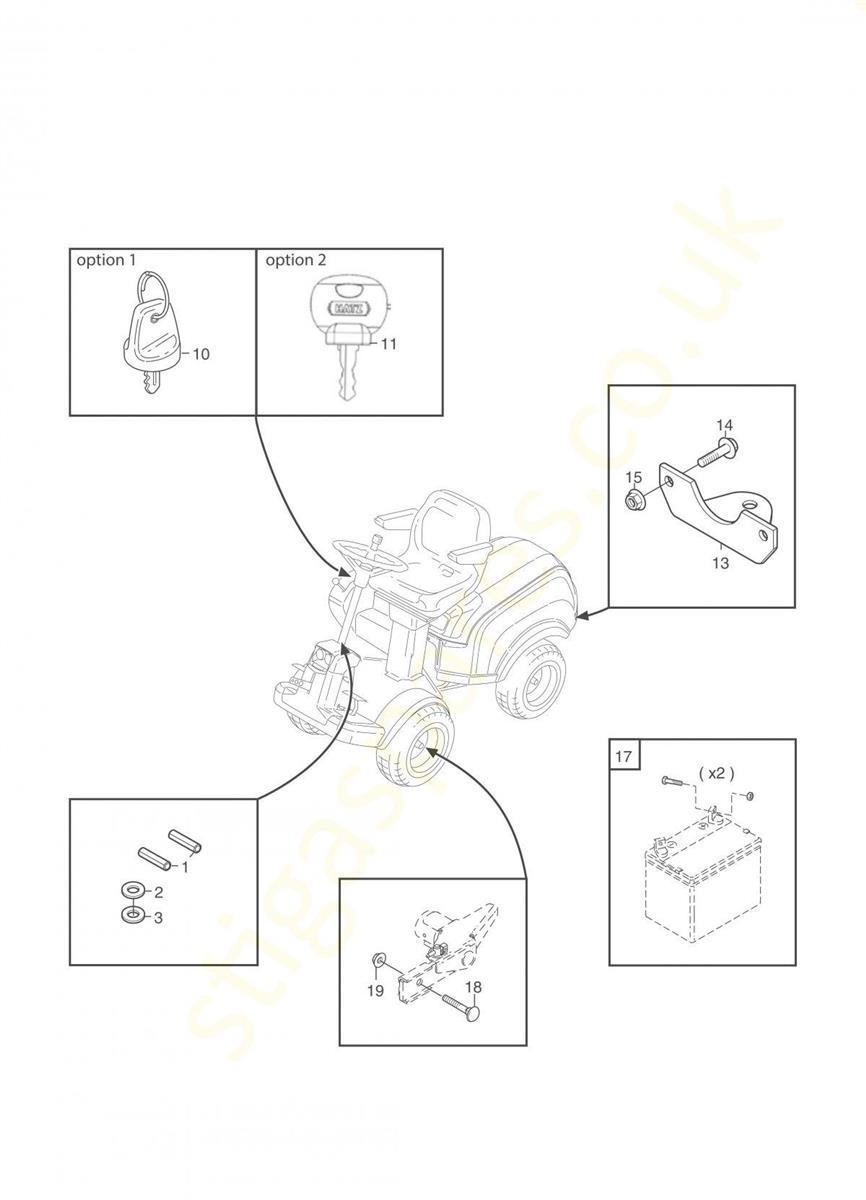

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0019595-0262-00LOCATING PIN£2.06 Add to
0029699-0103-02WASHER£2.47 Add to
0039699-0114-02WASHER 16 x 38 x 1£2.32 Add to
0101134-4734-01IGNITION KEY£17.72 Add to
0131134-5512-01TOWING PLATE£20.72 Add to
0149959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
0151137-0155-01SPACER£4.52 Add to
0171134-6113-02BATTERY SCREWS PACK£13.37 Add to
0189898-1035-16SCREW 10 x 35£3.15 Add to
0199739-1031-22NUT M10£2.32 Add to
