Electrical Parts

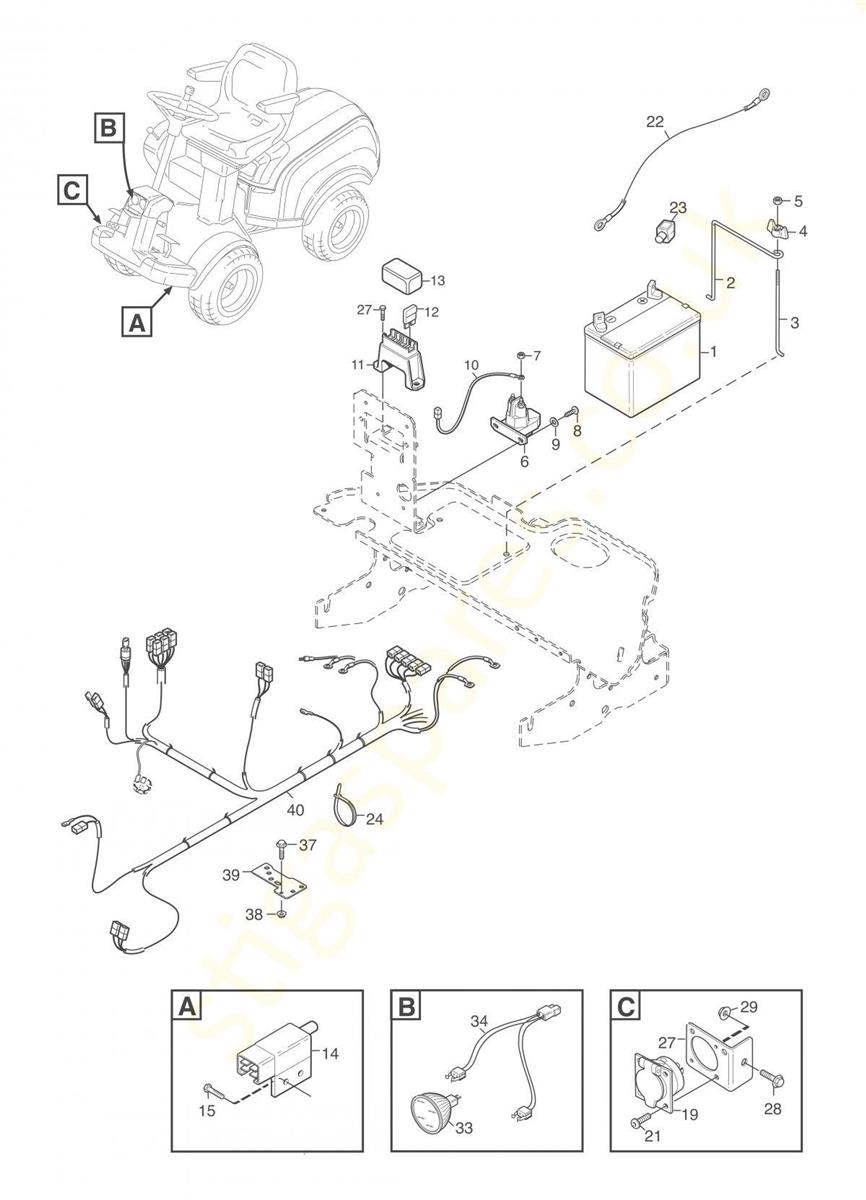

Electrical Parts assembly details for Stiga Stiga Park 540 DPX 2F6236281 2016 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	118120065/0	BATTERY YUASA 12V 30AH NO RETURNS ON THIS ITEM	£109.58	Add to
002	1134-5994-01	BATTERY LOOP	£9.82	Add to
003	1134-5995-01	BATTERY LOOP	£6.55	Add to
004	1134-4481-02	WING NUT	£6.14	Add to
005	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
006	118736112/0	SOLENOID	£39.80	Add to
007	9743-5121-32	LOCK NUT 5/16"	£1.79	Add to
008	9852-8013-16	SCREW	£2.47	Add to
009	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
010	1134-4970-02	CABLE	£23.45	Add to
011	1134-3491-01	FUSE HOLDER	£13.90	Add to
012	1134-3496-07	FUSE 30A	£5.05	Add to
012	133340040/0	FUSE 10A	£2.47	Add to
012	1134-3496-06	FUSE 20A	£2.06	Add to
013	1134-3631-01	COVER-FUSE HOLDER	£12.96	Add to
014	1134-3399-01	SWITCH	£45.26	Add to
015	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
019	1134-7535-01	FEMALE TERMINAL	£7.73	Add to
021	112735105/0	SELF-TAP SCREW TE 3.5 x 16	£2.06	Add to
022	1134-6067-02	BATTERY CABLE (DIESEL)	£35.71	Add to
023	118564861/1	RED RUBBER TERMINAL COVER	£7.90	Add to
024	133320027/0	FASTPOINT BAND ART. 0387.AA01 L=290	£2.06	Add to
024	9579-0018-01	CABLE TIE	£5.24	Add to
027	1137-0075-01	ATTACHMENT BRACKET	£9.94	Add to
028	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
029	1137-0155-01	SPACER	£4.52	Add to
033	9400-0358-01	LED-LAMP	£26.92	Add to
034	1134-7505-01	WIRE HARNESS	£129.74	Add to
040	187040311/0	WIRING HARNESS [PARK DIESEL]	£422.72	Add to
