Body works (1)

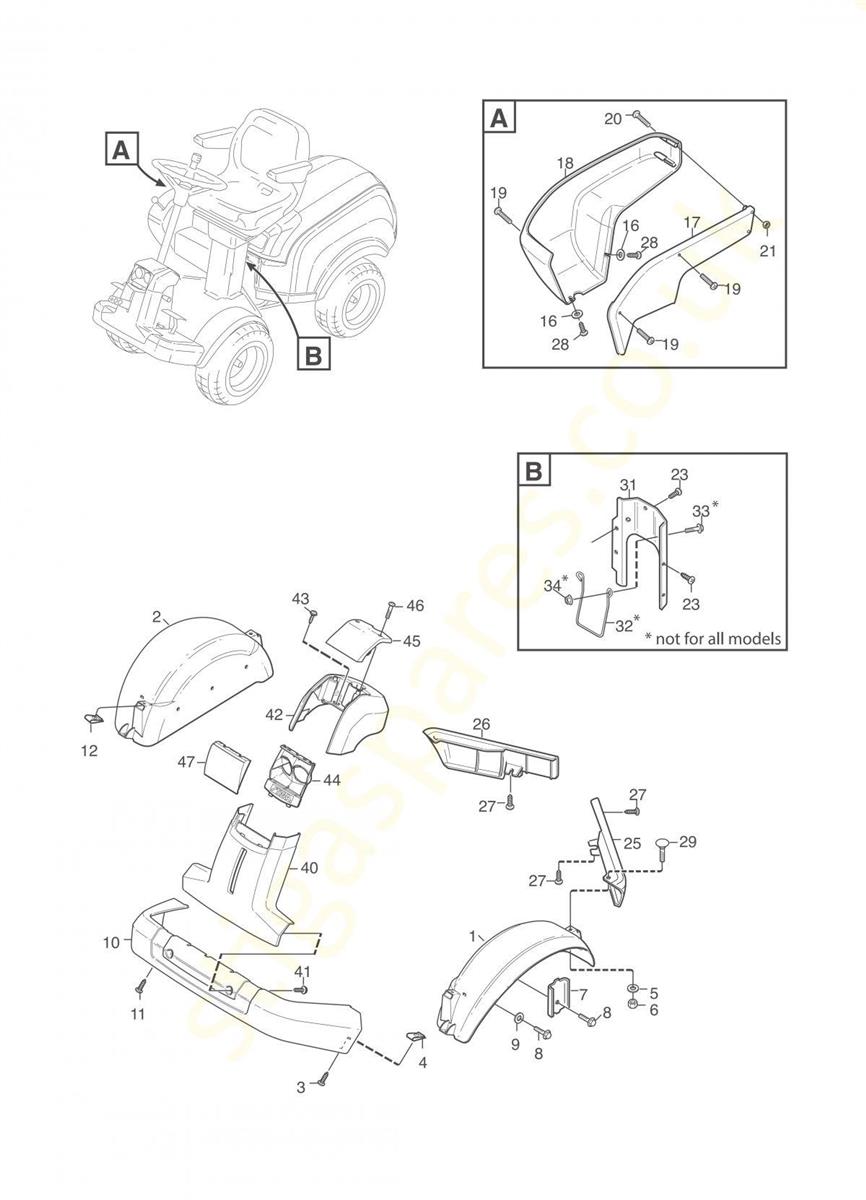

Body works (1) assembly details for Stiga Stiga Park 540 X 2F6230625 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	337491251/0	LEFT FRONT MUDGUARD [GREY]	£110.66	Add to
002	337491250/0	RIGHT FRONT MUDGUARD [GREY]	£117.47	Add to
003	9893-0616-16	SCREW M6 x 16	£2.47	Add to
004	1134-4176-01	CLIP	£5.19	Add to
005	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
006	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
007	1137-0088-01	SUPPORT PLATE	£2.74	Add to
008	1134-4242-01	SPACER WASHER	£4.78	Add to
009	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
010	337502507/0	FRONT BUMPER [GREY]	£45.26	Add to
011	9893-0616-16	SCREW M6 x 16	£2.47	Add to
012	1134-4176-01	CLIP	£5.19	Add to
016	9699-0099-02	WASHER 5.2 x 14 x 1.0	£2.18	Add to
017	1134-4360-01	INNER COVER	£67.05	Add to
018	1134-3979-01	OUTER COVER	£102.48	Add to
019	9946-0525-16	SCREW M5 x 25	£2.47	Add to
020	9950-0570-12	SCREW M5 x 70	£2.74	Add to
021	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
023	9893-0616-16	SCREW M6 x 16	£2.47	Add to
025	337110331/0	LEFT MOULDING [GREY]	£57.15	Add to
026	337110332/0	RIGHT MOULDING [GREY]	£54.79	Add to
027	9893-0616-16	SCREW M6 x 16	£2.47	Add to
028	9840-8013-16	SCREW 4.8 x 13	£2.06	Add to
029	112815200/0	SCREW TTDQ M6X16	£2.06	Add to
031	1134-6461-01	REAR PLATE	£34.35	Add to
032	1134-6460-01	PROTECTIVE LOOP	£13.77	Add to
033	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
034	1137-0155-01	SPACER	£4.52	Add to
040	1137-0050-01	LOWER FRONT PANEL	£22.91	Add to
041	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
042	1137-0051-01	UPPER FRONT PANEL	£21.12	Add to
043	9946-0525-16	SCREW M5 x 25	£2.47	Add to
044	337110329/0	FRONT LAMP COVER [GREY]	£6.23	Add to
045	337110330/0	TOP PANEL [GREY]	£6.27	Add to
046	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
047	1137-0054-01	LAMP GLASS	£8.45	Add to
