Frame

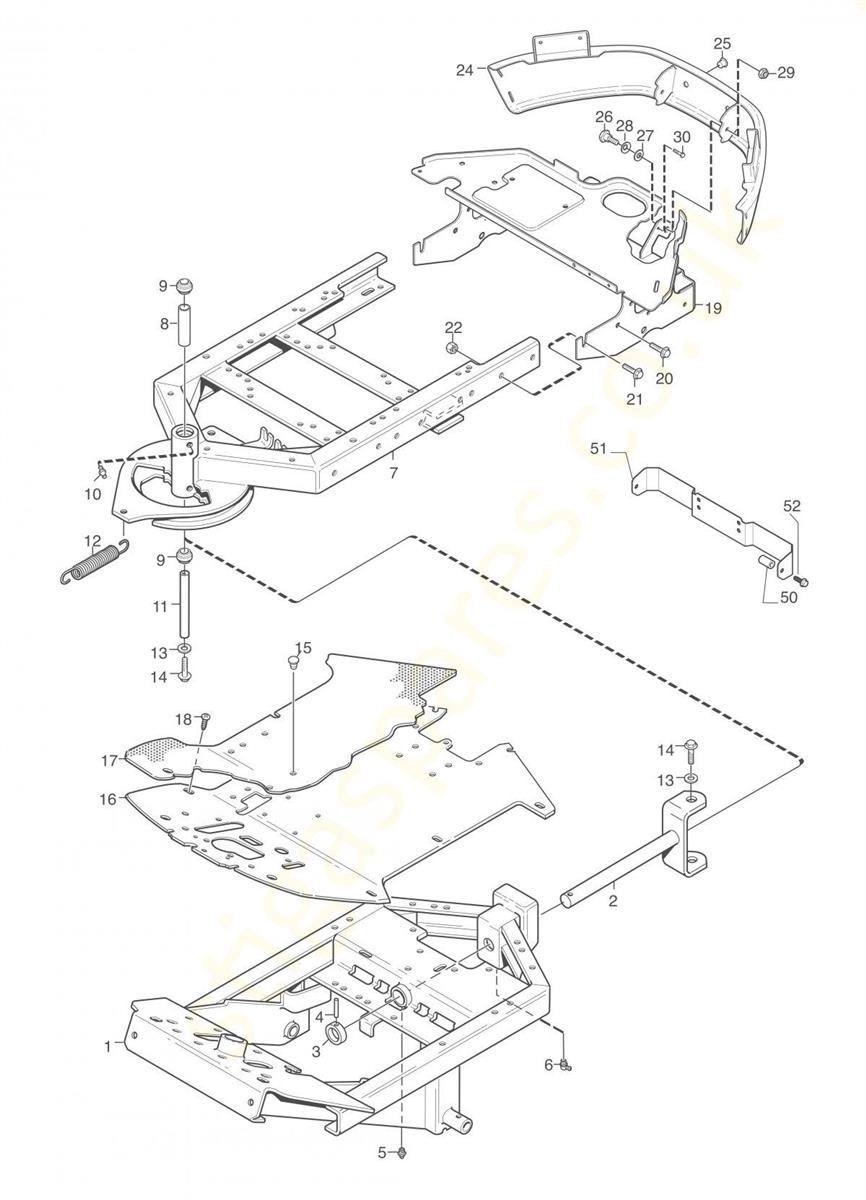

Frame assembly details for Stiga Stiga Park 720 W 2F6020621 2016 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	387800011/0	FRONT FRAME ASSEMBLY [2WD]	£811.06	Add to
002	1137-1119-02	CLEVIS FORK	£170.61	Add to
003	1134-0031-00	PIVOT SHAFT STOP	£24.95	Add to
004	9595-0262-00	LOCATING PIN	£2.06	Add to
005	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
006	9501-0504-01	GREASE NIPPLE M6	£3.69	Add to
007	1134-6466-02	REAR FRAME ASSEMBLY	£490.85	Add to
008	1134-5705-01	SPACER	£19.36	Add to
009	9547-0001-00	BEARING	£24.95	Add to
010	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
011	1134-5988-01	CENTRE SHAFT	£22.76	Add to
012	1134-2171-01	SPRING	£20.53	Add to
013	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
014	9959-1025-16	SCREW M6SF M10 x 25 TL	£3.00	Add to
015	9403-0048-70	COVER PLUG	£9.68	Add to
016	1134-6586-01	FLOOR PLATE	£170.61	Add to
017	114369182/0	Dekal Label	N/A	POA
018	9893-0616-16	SCREW M6 x 16	£2.47	Add to
019	1134-5944-01	TANK SHELF ASSEMBLY	£279.64	Add to
020	1134-4242-01	SPACER WASHER	£4.78	Add to
021	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
022	1137-0155-01	SPACER	£4.52	Add to
024	387457003/0	REAR BUMPER	£231.93	Add to
025	1134-4100-01	PLUG	£4.78	Add to
026	1134-0240-00	SCREW	£9.14	Add to
027	1134-4242-01	SPACER WASHER	£4.78	Add to
028	9665-0002-00	BOWL WASHER	£2.61	Add to
029	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
030	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
050	1134-1565-01	SPACER	£14.58	Add to
051	387602503/0	HEAT PROTECTION GUARD	£54.79	Add to
052	9945-0825-16	SCREW M6SF M8 x 25	£2.32	Add to
