Power Take-Off

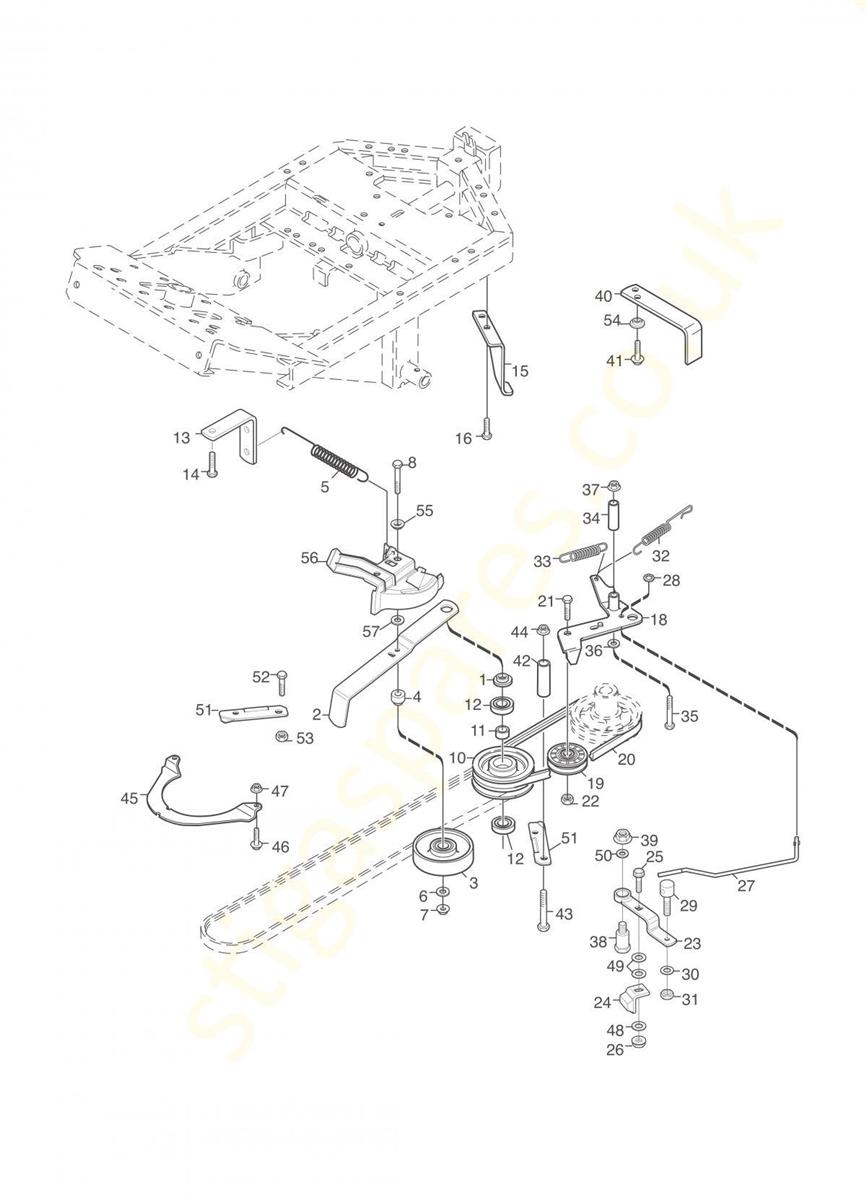

Power Take-Off assembly details for Stiga Stiga Park 720 W 2F6020621 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-5548-01	SPACER	£14.32	Add to
002	1137-1124-01	TENSION WHEEL ARM	£83.40	Add to
003	1137-0128-01	TENSION PULLEY	£48.34	Add to
004	1134-1888-04	SPACER	£9.41	Add to
005	1134-5111-01	SPRING	£18.53	Add to
006	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
007	1137-0155-01	SPACER	£4.52	Add to
008	112691900/0	HEX-HEAD SCREW	£1.91	Add to
010	387605002/0	DOUBLE CENTRE PULLEY ASSEMBLY	£84.77	Add to
011	1134-0051-09	SPACER	£14.05	Add to
012	120001215/0	BEARING 6203 2RS C3	£32.57	Add to
013	1134-5112-01	SPRING ATTACHMENT BRACKET	£27.27	Add to
014	1134-4242-01	SPACER WASHER	£4.78	Add to
015	1134-5110-02	HOOK PLATE	£40.30	Add to
016	9893-0616-16	SCREW M6 x 16	£2.47	Add to
018	1134-2018-02	TENSION ARM	£39.29	Add to
019	387605008/0	TENSION PULLEY [GREY]	£35.71	Add to
020	1134-9173-01	PTO DRIVE BELT [KEVLAR]	£31.63	Add to
021	112794300/0	SCREW TE M10 x 30	£1.91	Add to
022	112295200/0	HEXAGON NUT M10	£1.79	Add to
023	387318251/0	BRAKE ARM	£32.99	Add to
024	1134-4164-03	BRAKE PAD	£32.99	Add to
025	112818700/0	SCREW M8 x 25	£2.81	Add to
026	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
027	137033100/0	BRAKE ROD	£22.63	Add to
028	9675-0008-02	STARLOCK WASHER D=5	£4.01	Add to
029	1134-4170-01	PIVOT BOLT	£14.32	Add to
030	112521330/0	WASHER M6 6.4 X 12 X 1.6	£2.06	Add to
031	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
032	4231-0013-00	SPRING	£8.87	Add to
033	1135-3307-01	BRAKE SPRING	£23.72	Add to
034	1134-1565-10	SPACER	£8.73	Add to
035	112691800/0	HEX-HEAD SCREW M8 x 60	£2.06	Add to
036	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
037	1137-0155-01	SPACER	£4.52	Add to
038	1134-4163-02	SHOULDER BOLT	£8.87	Add to
039	9739-1031-22	NUT M10	£2.32	Add to
040	1134-3958-01	BELT GUIDE	£17.45	Add to
041	9893-0616-16	SCREW M6 x 16	£2.47	Add to
042	1134-0041-03	BUSH	£11.59	Add to
043	112794950/0	SCREW M10 x 80	£4.11	Add to
044	9739-1031-22	NUT M10	£2.32	Add to
045	1134-3654-01	GUARD	£35.71	Add to
046	9959-0612-16	SCREW M6SF M6 x 12 TL	£1.79	Add to
047	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
048	9699-0090-02	WASHER 8.4 x 18 x 1.5	£2.32	Add to
049	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
050	337670201/0	WASHER	£3.64	Add to
051	337546547/0	PLATE	£5.64	Add to
052	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
053	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
054	325160039/0	SPACER	£2.06	Add to
055	122041980/0	SPACER ROLLER BUSH	£2.06	Add to
056	337600000/1	PULLEY PROTECTION GUARD	£7.73	Add to
057	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
