Seat

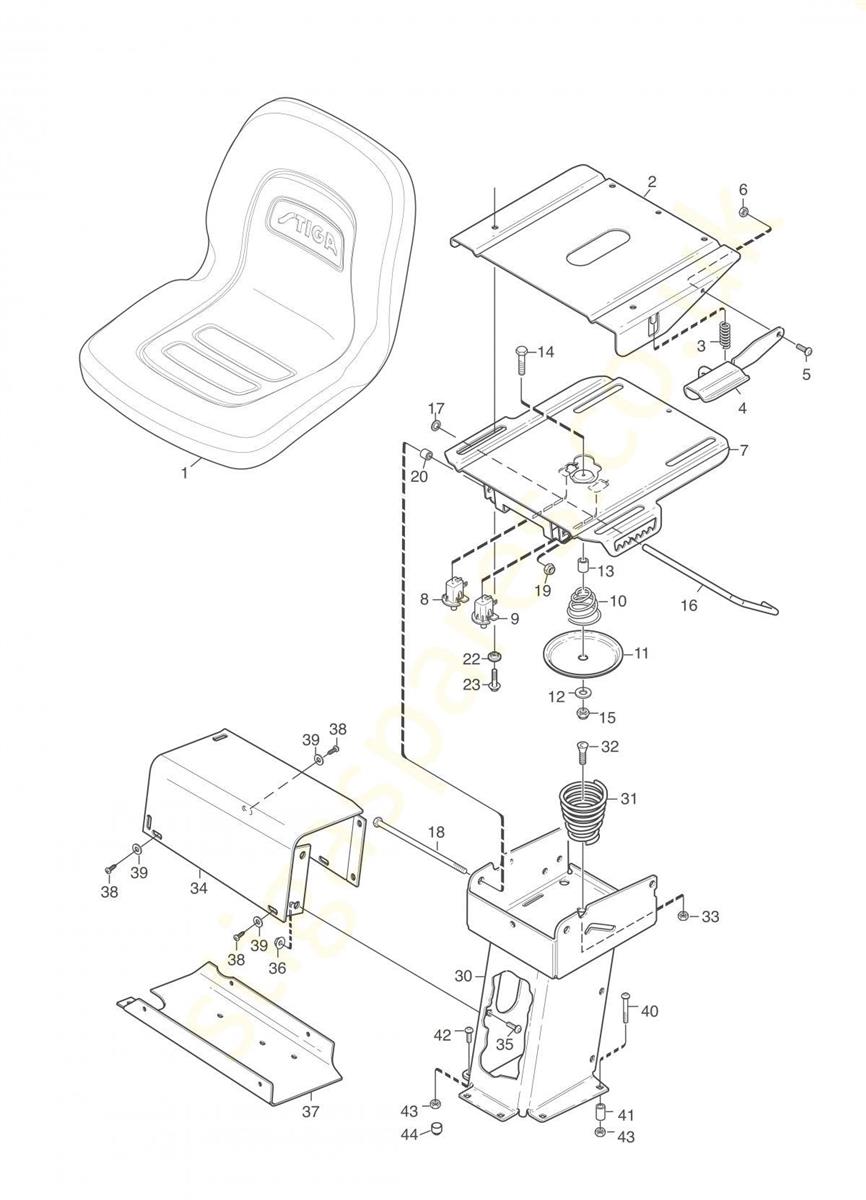

Seat assembly details for Stiga Stiga Park 720 W 2F6020621 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	137722602/0	SEAT [PARK]	£298.27	Add to
002	1134-6090-01	UPPER SLIDE PLATE	£99.76	Add to
003	1134-3262-01	SPRING	£8.73	Add to
004	1134-6073-01	HANDLE ASSEMBLY	£41.16	Add to
005	9893-0616-16	SCREW M6 x 16	£2.47	Add to
006	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
007	1134-6068-01	LOWER SLIDE PLATE	£114.96	Add to
008	1134-3156-01	SEAT SWITCH [BLACK]	£45.26	Add to
009	1134-3156-02	SEAT SWITCH [GREY]	£47.97	Add to
010	1134-5302-01	SPRING	£8.87	Add to
011	1134-5299-01	PUSH PLATE	£17.86	Add to
012	9699-0090-02	WASHER 8.4 x 18 x 1.5	£2.32	Add to
013	1134-1565-06	SPACER	£11.32	Add to
014	112691115/0	HEX-HEAD SCREW M8 x 40	£2.06	Add to
015	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
016	1134-5179-01	CATCH ROD	£13.77	Add to
017	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
018	9997-0818-02	SCREW M6S M8 x 180 (OBSOLETE)	N/A
019	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
020	1134-5626-03	SPACER	£2.87	Add to
022	1134-6078-01	FLANGE WASHER	£5.87	Add to
023	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
030	1134-5698-01	SEAT BRACKET	£162.60	Add to
031	137430116/0	SEAT SPRING	£26.18	Add to
032	9924-1235-19	SCREW MF6S M12 x 35	£4.23	Add to
033	112156603/0	SELF-LOCKING NUT M12	£2.06	Add to
034	1134-3990-01	ATTACHMENT-SIDE PANEL	£164.18	Add to
035	9897-0820-16	SCREW M8 x 20	£2.32	Add to
036	1137-0155-01	SPACER	£4.52	Add to
037	1134-4130-01	LOWER COVER YELLOW STIGA	£41.16	Add to
038	9840-8013-16	SCREW 4.8 x 13	£2.06	Add to
039	9699-0099-02	WASHER 5.2 x 14 x 1.0	£2.18	Add to
040	9897-0880-12	SCREW MVBF 8 x 80	£2.32	Add to
041	1134-1565-08	SPACER	£9.94	Add to
042	9897-0820-16	SCREW M8 x 20	£2.32	Add to
043	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
044	118203854/0	NUT CAP M8 [BLACK]	£2.06	Add to
