Steering

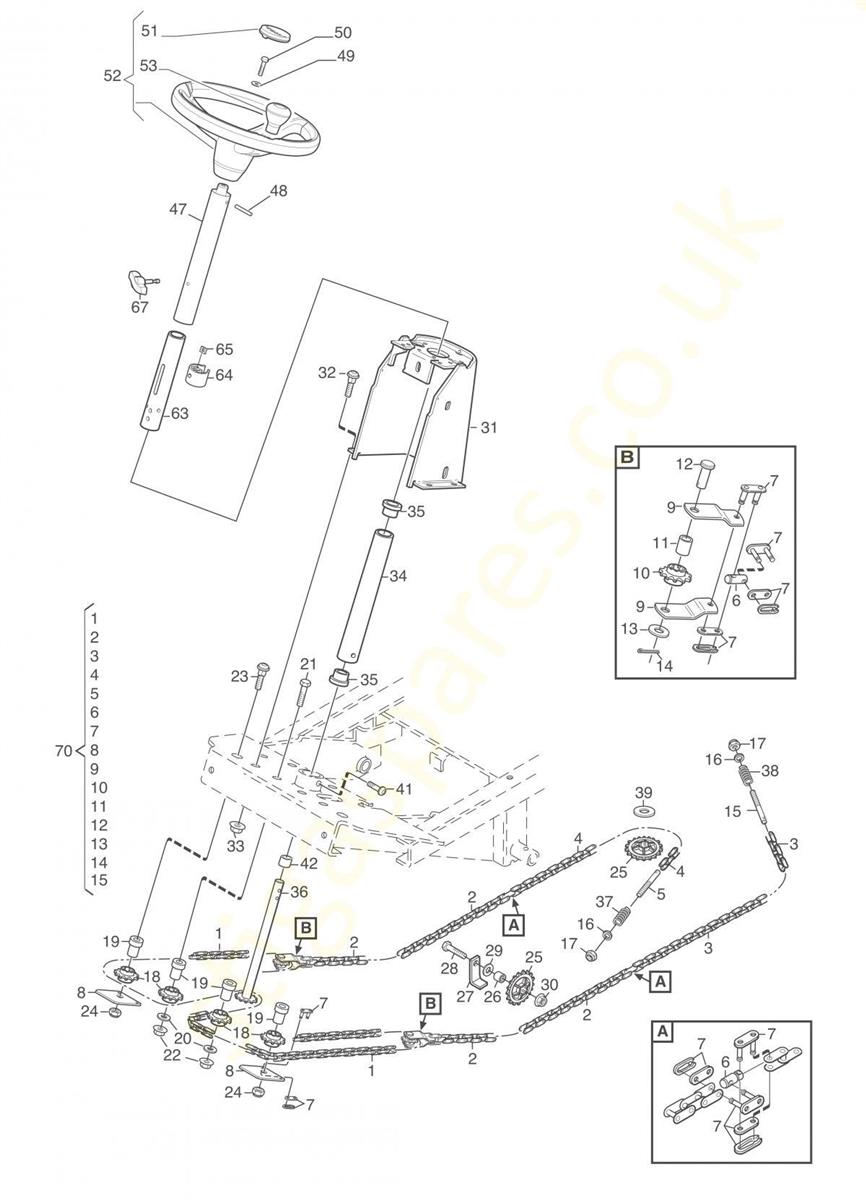

Steering assembly details for Stiga Stiga Park 720 W 2F6020621 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-6374-10	CHAIN (129 LINKS)	£27.27	Add to
002	1134-6374-09	CHAIN (35 LINKS)	£11.87	Add to
003	187000352/0	STEERING CHAIN 41M ELITE FM W/SERVO	£28.90	Add to
004	1134-6374-05	CHAIN (47 LINKS)	£15.59	Add to
005	1134-3550-01	END NIPPLE [L=110]	£18.53	Add to
006	1134-3565-01	CONNECTION NIPPLE	£16.17	Add to
007	187060100/1	STEERING CHAIN LOCK	£7.62	Add to
008	1134-5652-01	ATTACHMENT PLATE	£5.46	Add to
009	1134-5651-01	BRACKET	£4.35	Add to
010	1134-2816-01	SPROCKET	£10.77	Add to
011	1134-0041-02	BUSH	£10.09	Add to
012	1134-4817-01	PIN	£12.96	Add to
013	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
014	9599-0054-02	SPLIT PIN	£2.32	Add to
015	1134-3550-02	END NIPPLE [L=90]	£18.27	Add to
016	9699-0090-02	WASHER 8.4 x 18 x 1.5	£2.32	Add to
017	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
018	1134-2816-01	SPROCKET	£10.77	Add to
019	1134-5653-01	SPACER	£9.14	Add to
020	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
021	112692395/1	SCREW M10 X 60 L=60MM	£3.64	Add to
022	9739-1031-22	NUT M10	£2.32	Add to
023	9897-1060-12	SCREW M10 x 60	£3.28	Add to
024	9731-1031-22	LOCK NUT M6MF M10	£2.47	Add to
025	1134-3547-01	SPROCKET	£12.96	Add to
026	1134-0041-01	BUSH	£9.41	Add to
027	1134-3022-01	BRACKET	£62.97	Add to
028	9997-1040-16	SCREW M6S 10 x 40	£7.23	Add to
029	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
030	9739-1031-22	NUT M10	£2.32	Add to
031	387785243/0	STEERING COLUMN COVER	£102.06	Add to
032	9897-0820-16	SCREW M8 x 20	£2.32	Add to
033	1137-0155-01	SPACER	£4.52	Add to
034	387520113/0	LOWER STEERING COLUMN	£40.38	Add to
035	1134-1901-01	PLASTIC BUSH	£12.27	Add to
036	1137-0120-02	STEERING ROD ASSEMBLY	£43.89	Add to
037	1134-3817-01	COMPRESSION SPRING	£12.96	Add to
038	1134-3817-02	COMPRESSION SPRING	£12.68	Add to
039	337670201/0	WASHER	£3.64	Add to
041	9893-0616-16	SCREW M6 x 16	£2.47	Add to
042	1134-2837-03	SPACER	£11.46	Add to
047	387520101/1	UPPER STEERING COLUMN	£95.67	Add to
048	112620299/0	SPIROL FLEXIBLE PIN 6 x 45	£1.91	Add to
049	112583500/0	WASHER M8 UNI 1751 WZ	£2.06	Add to
050	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
051	337580550/0	STEERING WHEEL PLATE	£8.75	Add to
052	337961200/0	STEERING WHEEL [BLACK]	£287.40	Add to
053	187593701/0	STEERING WHEEL KNOB	£48.11	Add to
063	387520119/0	LOWER STEERING COLUMN	£74.87	Add to
064	1134-5177-01	SLIDE COLLAR	£13.64	Add to
065	9710-0631-12	SQUARE NUT	£3.55	Add to
066	1134-4481-02	WING NUT	£6.14	Add to
067	337394201/0	WING NUT	£13.64	Add to
070	1134-6380-03	STEERING CHAIN ASSEMBLY	£199.49	Add to
