Transmission (1)

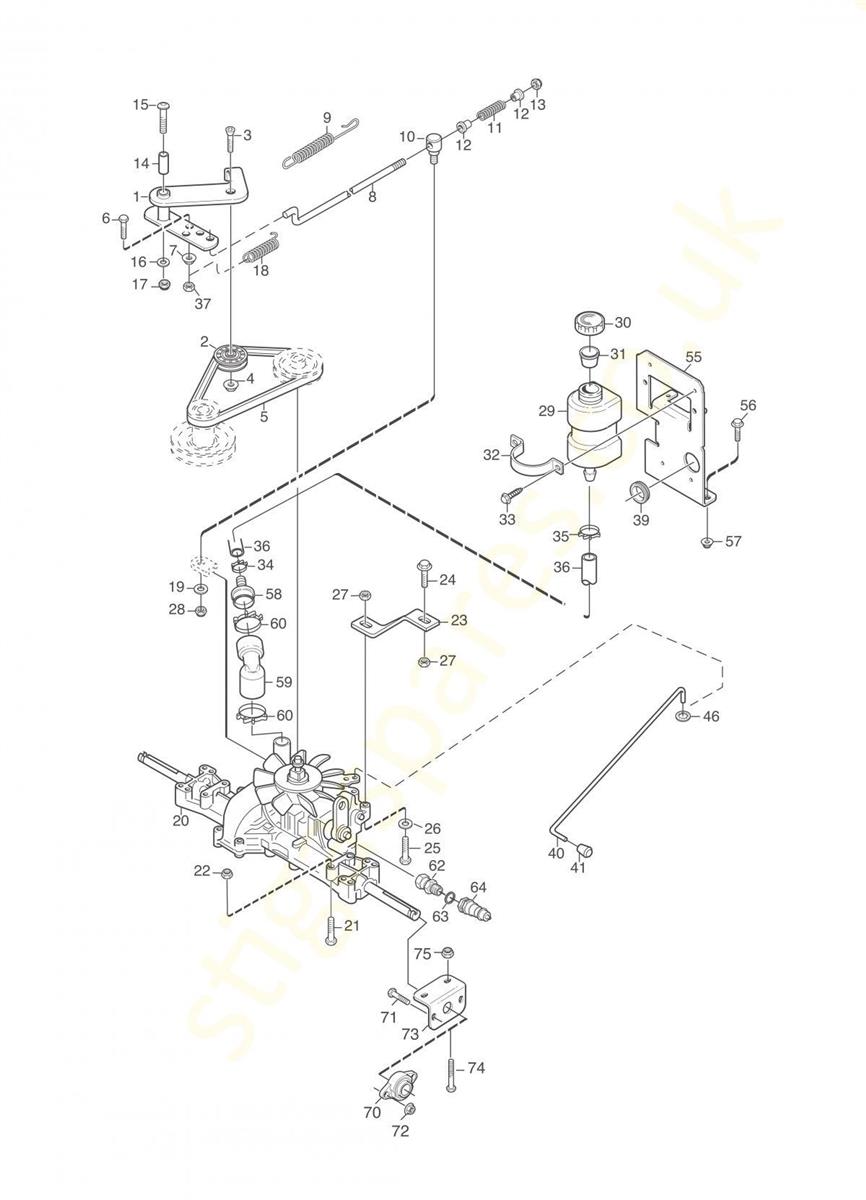

Transmission (1) assembly details for Stiga Stiga Park 720 W 2F6020621 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-4000-02	TENSION ARM	£48.50	Add to
002	387605012/0	TENSION PULLEY	£59.68	Add to
003	9924-1035-16	SCREW MF6S M10 x 35	£6.27	Add to
004	112295200/0	HEXAGON NUT M10	£1.79	Add to
005	1134-9058-01	TRANSMISSION BELT	£23.04	Add to
006	112791500/0	SCREW TE M6x25 UNI 5739 ACC.8.8	£2.06	Add to
007	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
008	1134-3377-02	CONTROL ROD	£16.91	Add to
009	4231-0013-00	SPRING	£8.87	Add to
010	1134-4171-01	PIVOT PIN	£17.45	Add to
011	1134-4183-01	COMPRESSION SPRING	£8.73	Add to
012	1134-3456-01	BUSH	£6.14	Add to
013	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
014	1134-1565-08	SPACER	£9.94	Add to
016	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
017	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
018	1134-6414-01	SPRING	£5.73	Add to
019	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
020	1137-0126-01	TRANSAXLE K57V	£1,165.38	Add to
021	9960-0860-12	SCREW M8 x 60	£2.32	Add to
022	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
023	1134-3913-01	STRUT BRACKET	£17.59	Add to
024	9959-0825-16	SCREW FLANGED TE M6SF M8 x 25	£2.06	Add to
025	112691200/0	HEX-HEAD SCREW M8 x 45	£2.06	Add to
026	9699-0090-02	WASHER 8.4 x 18 x 1.5	£2.32	Add to
027	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
028	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
029	1134-2765-02	OIL TANK	£45.26	Add to
030	1134-2777-02	OIL TANK CAP	£16.78	Add to
031	1134-3734-01	VENT PLUG	£11.18	Add to
032	1134-2778-01	BAND	£14.18	Add to
033	9852-8013-16	SCREW	£2.47	Add to
035	9578-0023-04	HOSE CLAMP	£5.32	Add to
035	9578-0036-01	HOSE CLAMP	£3.41	Add to
036	1134-2779-09	Slang Tube L = 290 mm	N/A	POA
037	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
039	1134-3203-01	GROMMET	£5.60	Add to
040	1134-4015-01	PULL ROD	£11.59	Add to
041	1134-4014-01	KNOB	£5.19	Add to
046	112604896/0	STARLOCK WASHER D=6	£2.06	Add to
055	1134-5941-01	TANK BRACKET	£45.90	Add to
056	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
057	1137-0155-01	SPACER	£4.52	Add to
058	1134-6051-01	HOSE NIPPLE	£18.95	Add to
059	1134-6050-01	ELBOW	£21.66	Add to
060	9578-0023-06	HOSE CLAMP	£5.45	Add to
062	1134-7245-01	HYDRAULIC COUPLING-STRAIGHT	£11.59	Add to
063	1134-4948-01	SEAL WASHER 1/4"	£2.59	Add to
064	1134-6042-01	QUICK COUPLING-MALE 1/4"	£32.08	Add to
070	1137-1122-01	FLANGE BEARING UNIT	£67.05	Add to
071	112793301/0	HEX-HEAD SCREW M8 x 25	£2.06	Add to
072	1137-0155-01	SPACER	£4.52	Add to
073	1137-1123-01	BEARING BRACKET	£21.67	Add to
074	9960-0860-12	SCREW M8 x 60	£2.32	Add to
075	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
