Transmission (2)

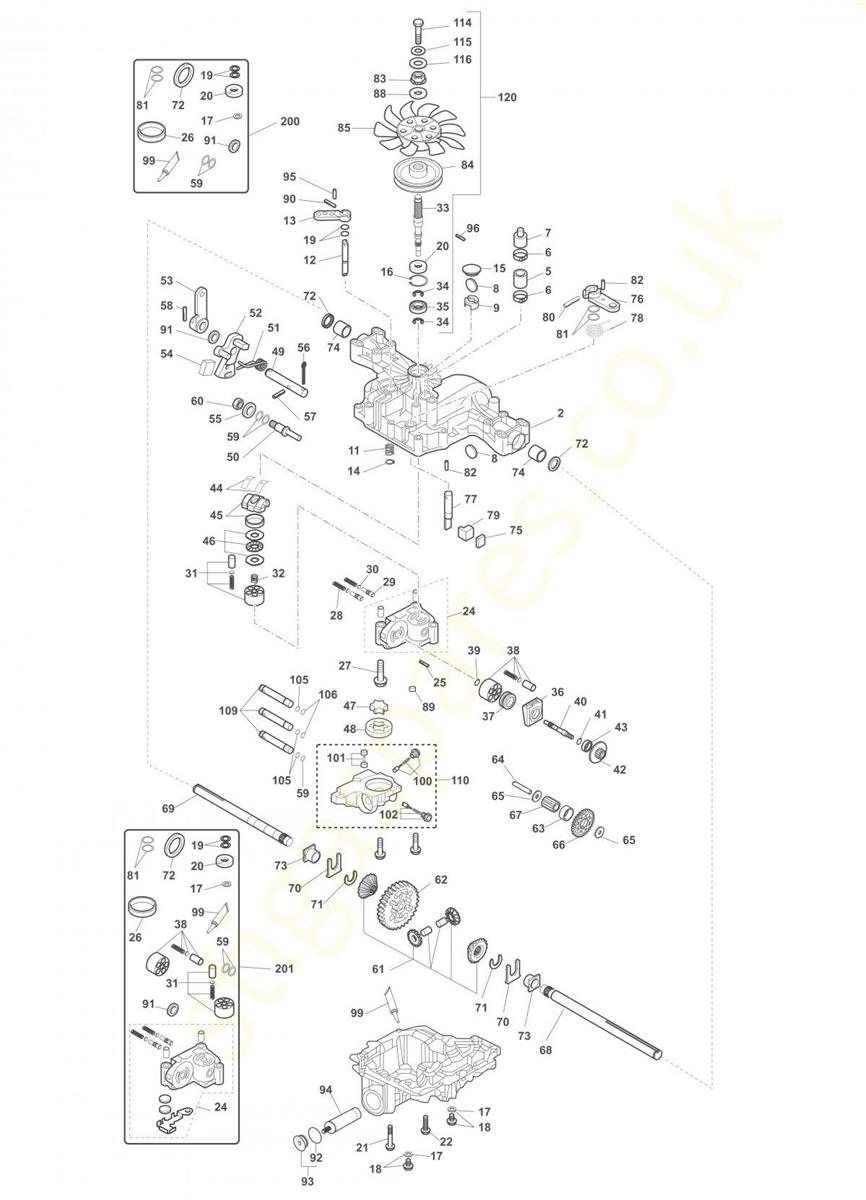

Transmission (2) assembly details for Stiga Stiga Park 720 W 2F6020621 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1137-0126-01	TRANSAXLE K57V	£1,165.38	Add to
002	1139-1470-01	UPPER HOUSING	£370.37	Add to
003	1139-1728-01	LOWER HOUSING	£230.29	Add to
005	1139-1301-01	TUBE	£9.41	Add to
006	1139-1336-01	COBRA CLIP	£5.19	Add to
007	1139-1306-01	ADAPTOR	£4.78	Add to
008	1139-1150-01	MAGNET	£8.23	Add to
009	1139-1341-01	MAGNET HOLDER	£4.37	Add to
011	1139-1347-01	SPRING	£1.91	Add to
012	1139-1251-01	BY-PASS SHAFT	£34.80	Add to
013	1139-1189-01	BY-PASS LEVER	£9.19	Add to
014	1139-1161-01	RING	£1.58	Add to
015	1139-1735-01	SEALING CAP	£8.32	Add to
016	1139-1104-01	CIRCLIP	£2.06	Add to
017	1139-1103-01	SEAL WASHER	£6.31	Add to
018	1139-1500-01	DRAIN BOLT KIT	£6.59	Add to
019	1139-1117-01	O RING	£1.50	Add to
020	1139-1119-01	SEAL 15.35.7	£5.37	Add to
021	1139-1455-01	TAPPING SCREW	£6.27	Add to
022	1139-0244-01	TAPPING SCREW	£3.17	Add to
024	1139-1731-01	CENTER CASE	£456.94	Add to
025	1139-1158-01	PIN	£1.58	Add to
027	1139-1718-01	BOLT (OBSOLETE)	N/A
028	1139-1468-01	IDS VALVE	£11.87	Add to
029	1139-1243-01	SPRING	£1.91	Add to
030	1139-1307-01	FILTER	£6.14	Add to
031	1139-1601-01	CYLINDER BLOCK KIT (PUMP)	£139.79	Add to
032	1139-1245-01	PUMP SPRING	£4.80	Add to
034	1139-1750-01	E-RING	£2.06	Add to
035	1139-1110-01	BEARING	£10.77	Add to
036	1139-1458-01	HOUSING	£19.22	Add to
037	1139-1438-01	BEARING	£115.86	Add to
038	1139-1509-01	CYLINDER BLOCK KIT	£250.75	Add to
039	1139-1160-01	WASHER	£1.58	Add to
040	1139-1353-01	MOTOR SHAFT	£33.69	Add to
041	1139-1021-01	CIRCLIP	£2.06	Add to
042	1139-1272-01	MOTOR GEAR	£19.62	Add to
043	1139-1453-01	BEARING	£18.75	Add to
044	1139-1066-01	METAL THRUST (OBSOLETE)	N/A
045	1139-1597-01	SWASH PLATE	£38.19	Add to
046	1139-1508-01	THRUST BEARING KIT	£58.10	Add to
047	1139-1729-01	INNER ROTOR	£75.89	Add to
048	1139-1151-01	OUTER ROTOR	£162.60	Add to
049	1139-1354-01	CONTROL SHAFT (OBSOLETE)	N/A
050	1139-1410-01	FULCRUM	£30.56	Add to
051	1139-1407-01	TORSION SPRING	£21.17	Add to
052	1139-1409-01	CONTROL ARM	£45.26	Add to
053	1139-1325-01	CONTROL LEVER	£22.91	Add to
054	1139-1596-01	JERKY PLATE	£6.47	Add to
055	1139-1102-01	WASHER	£5.75	Add to
056	1139-1329-01	PIN	£2.06	Add to
057	1139-1329-01	PIN	£2.06	Add to
058	1139-1285-01	PIN	£1.58	Add to
059	1139-1115-01	O RING	£1.79	Add to
060	1139-1127-01	NUT	£3.40	Add to
061	1139-1404-01	DIFFERENTIAL GEAR KIT	£61.56	Add to
062	1139-1258-01	FINAL GEAR	£92.95	Add to
063	1139-1255-01	COLLAR	£5.46	Add to
064	1139-1256-01	REDUCTION SHAFT	£14.69	Add to
065	1139-1398-01	WASHER	£5.21	Add to
066	1139-1267-01	REDUCTION GEAR	£23.64	Add to
067	1139-1361-01	FINAL PINION GEAR	£25.15	Add to
068	1139-1344-01	AXLE SHAFT LH L=285mm	£68.42	Add to
069	1139-1345-01	AXLE SHAFT RH L=424mm	£98.40	Add to
070	1139-1078-01	THRUST WASHER	£10.36	Add to
071	1139-1163-01	RING	£1.79	Add to
072	1139-1080-01	SEAL 19328	£11.32	Add to
073	1139-1164-01	BUSH	£3.15	Add to
074	1139-1414-01	BUSH (19.05)	£4.35	Add to
075	1139-1260-01	BRAKE SHOE	£2.18	Add to
076	1139-1261-01	BRAKE ARM	£10.03	Add to
077	1139-1320-01	BRAKE SHAFT	£47.74	Add to
078	1139-1411-01	RETURN SPRING	£9.22	Add to
079	1139-1264-01	BRAKE ACTUATOR	£5.60	Add to
080	1139-1282-01	PIN	£5.03	Add to
081	1139-1114-01	O RING	£4.80	Add to
082	1139-1281-01	PIN (OBSOLETE)	N/A
083	1139-1248-01	SPLINE COLLAR	£3.96	Add to
084	1139-1469-01	PULLEY	£94.00	Add to
085	1134-4190-01	FAN	£22.35	Add to
088	1139-1276-01	WASHER	£5.32	Add to
089	1139-1166-01	PIN	£4.94	Add to
090	1139-1280-01	PIN (KTM10M) (OBSOLETE)	N/A
091	1139-1303-01	SEAL RING	£4.52	Add to
092	1139-1534-01	O RING (OBSOLETE)	N/A
093	1139-1510-01	CAP KIT	£7.10	Add to
094	1139-1186-01	FILTER	£77.95	Add to
095	1139-1279-01	PIN	£1.58	Add to
096	1139-1527-01	REPAIR KIT	£1,008.67	Add to
099	1139-1443-01	SEALANT (TUBE)	£38.16	Add to
100	1139-1462-01	VALVE	£67.54	Add to
101	1139-1234-01	CHECK CMP	£13.31	Add to
102	1139-1463-01	VALVE	£121.47	Add to
105	1139-0239-01	O RING	£2.32	Add to
106	1139-1168-01	O RING	£2.87	Add to
108	1139-1460-01	PIPING	£45.28	Add to
109	1139-1464-01	CONNECTOR	£48.81	Add to
110	1139-1730-01	PUMP CASE	£413.49	Add to
112	1139-1473-01	BOLT	£5.76	Add to
113	1139-1471-01	BOLT	£3.64	Add to
114	1139-1719-01	BOLT	£6.14	Add to
115	1139-1720-01	LOCK WASHER	£2.14	Add to
116	1139-1721-01	WASHER	£2.61	Add to
120	1139-1725-01	PUMP SHAFT KIT	£114.74	Add to
