Hydraulic Lift

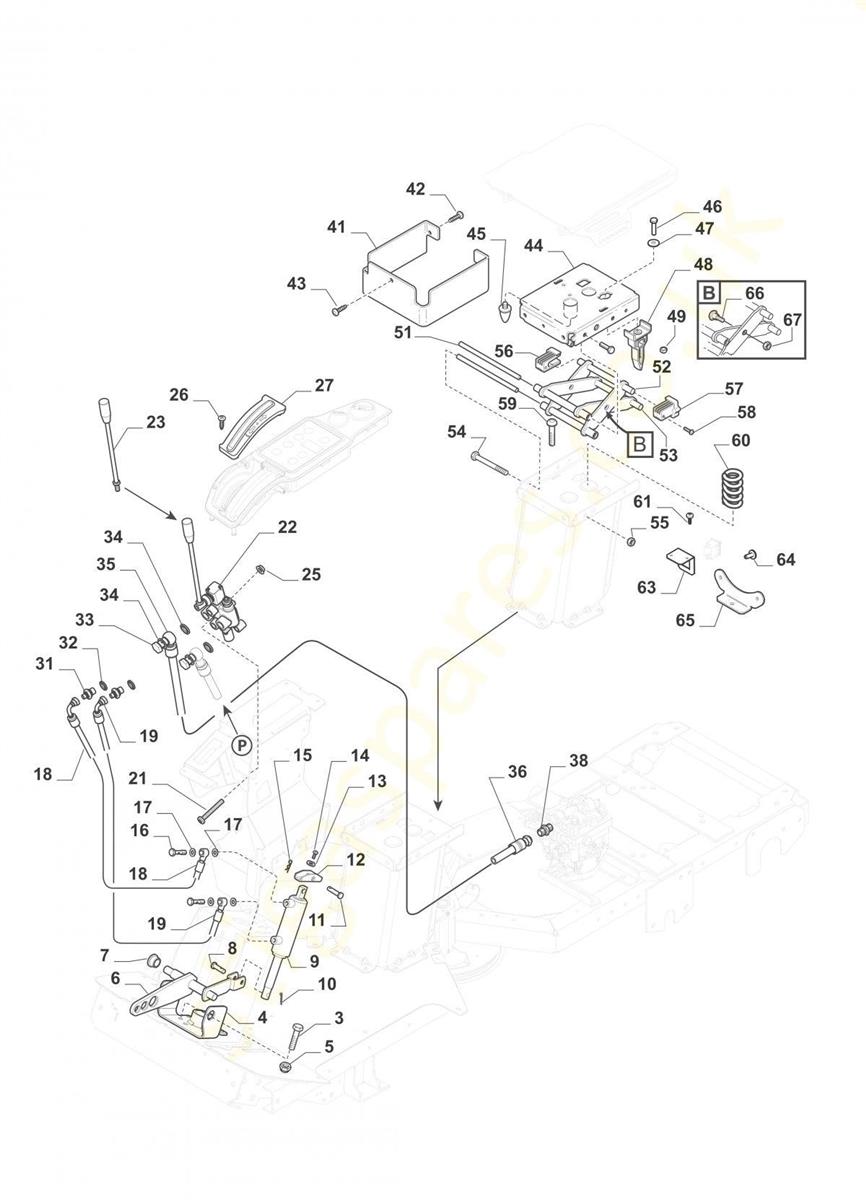

Hydraulic Lift assembly details for Stiga Stiga Park Pro 340 IX 13-6451-11 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
003	9959-0825-16	SCREW FLANGED TE M6SF M8 x 25	£2.06	Add to
004	387773503/0	SUPPORT BRACKET	£82.05	Add to
005	112154210/0	SELF-LOCK WINGED NUT M8 DIN 6927	£2.06	Add to
006	387256051/0	LIFT LEVER ASSEMBLY	£124.29	Add to
007	1134-2684-01	BUSH	£7.10	Add to
008	1134-4817-01	PIN	£12.96	Add to
009	1137-0071-01	HYDRAULIC CYLINDER	£368.20	Add to
010	9599-0054-02	SPLIT PIN	£2.32	Add to
011	1134-4816-01	PIN	£13.64	Add to
012	1134-4815-01	CYLINDER BRACKET	£58.87	Add to
013	112521330/0	WASHER M6 6.4 X 12 X 1.6	£2.06	Add to
014	9893-0616-16	SCREW M6 x 16	£2.47	Add to
014	9598-0002-02	SPRING PIN 2.5mm L=47mm	£2.06	Add to
016	1134-4826-01	BANJO BOLT	£15.81	Add to
017	1134-4947-01	COPPER WASHER 10 x 14 x 1.5	£5.73	Add to
018	1137-0193-01	HYDRAULIC HOSE 90° 3/16"	£89.43	Add to
019	1137-0193-01	HYDRAULIC HOSE 90° 3/16"	£89.43	Add to
021	112727799/0	SCREW TCB TORX M6 x 35	£2.18	Add to
022	187145001/0	HAND OPERATED VALVE	£490.85	Add to
023	187318253/0	OPERATING LEVER	£51.32	Add to
025	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
026	112728706/0	SELF-TAPPING SCREW K40 x 16	£2.06	Add to
027	387559004/0	ONE WAY VALVE COVER	£39.10	Add to
031	1134-4824-01	ADAPTER	£12.00	Add to
032	1134-4948-01	SEAL WASHER 1/4"	£2.59	Add to
033	1134-6323-01	BANJO BOLT 3/8"	£10.50	Add to
034	1134-4948-02	SEAL WASHER 3/8"	£2.06	Add to
036	1137-0197-01	HYDRAULIC HOSE	£71.14	Add to
038	387520119/0	LOWER STEERING COLUMN	£74.87	Add to
041	1137-0038-01	COVER	£41.10	Add to
042	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
043	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
044	387785227/0	SEAT SUPPORT	£78.81	Add to
045	1137-0064-01	RUBBER CONE	£42.53	Add to
046	112791500/0	SCREW TE M6x25 UNI 5739 ACC.8.8	£2.06	Add to
047	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
048	337058500/0	SWITCH DRIVE CAM	£5.64	Add to
049	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
051	1137-0263-01	TUBE	£9.68	Add to
052	1137-0260-01	LINK ASSEMBLY A	£65.69	Add to
053	1137-0261-01	LINK ASSEMBLY B	£67.05	Add to
054	9997-0818-02	SCREW M6S M8 x 180 (OBSOLETE)	N/A
055	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
056	1137-0033-02	BLOCK	£3.41	Add to
057	1137-0033-01	BLOCK	£3.41	Add to
058	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
059	9897-0880-12	SCREW MVBF 8 x 80	£2.32	Add to
060	1134-4160-01	SEAT SPRING	£24.95	Add to
061	9893-0616-16	SCREW M6 x 16	£2.47	Add to
063	337785037/0	SWITCH SUPPORT BRACKET	£13.38	Add to
064	9893-0616-16	SCREW M6 x 16	£2.47	Add to
065	387785223/0	SEAT COLUMN REAR SUPPORT	£12.85	Add to
066	1134-0240-00	SCREW	£9.14	Add to
067	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
