Steering

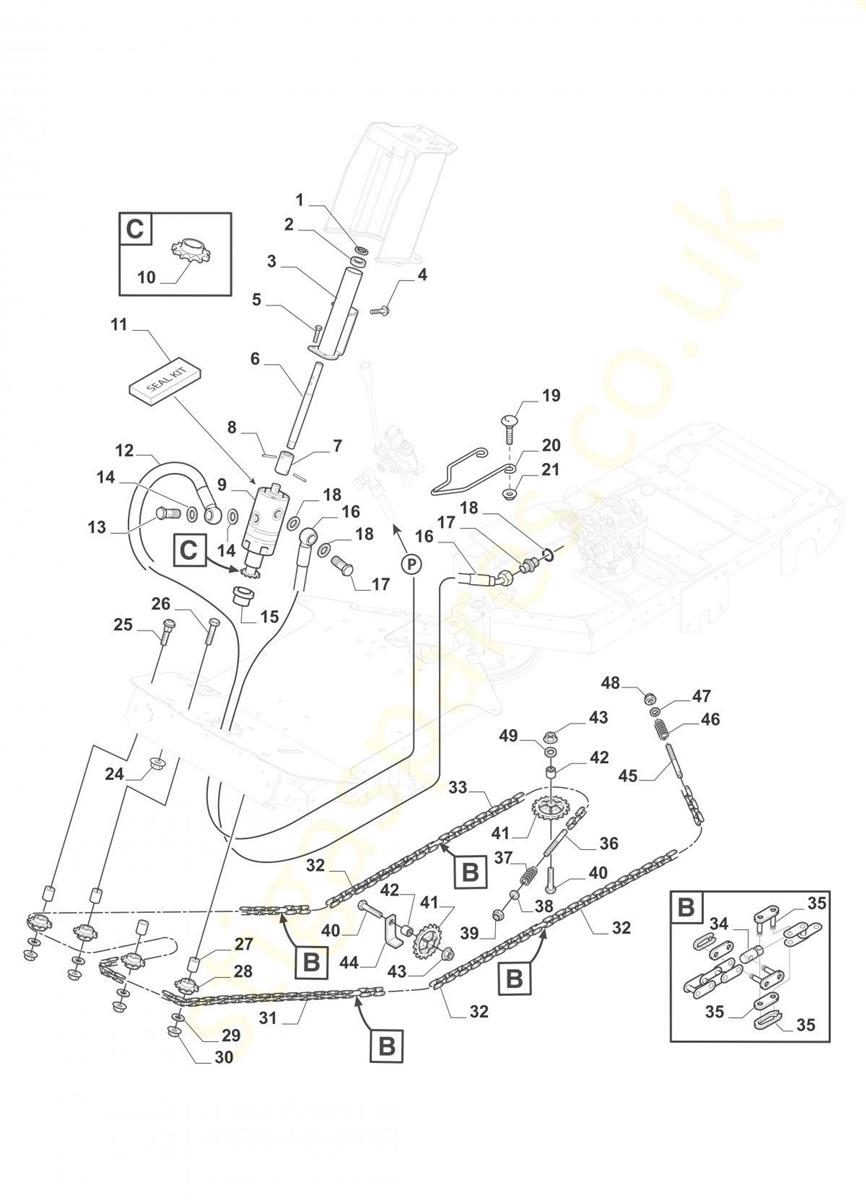

Steering assembly details for Stiga Stiga Park Pro 340 IX 13-6451-11 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0019695-0011-00WASHER 16 x 22 x 1£2.47 Add to
0029549-0017-00BALL BEARING£12.14 Add to
003387773505/0STEERING COLUMN SUPPORT£78.38 Add to
0041134-4242-01SPACER WASHER£4.78 Add to
0059939-0612-16SCREW M6 x 12£2.32 Add to
0061137-0045-01STEERING ROD£54.04 Add to
0071134-4118-01COUPLING£22.49 Add to
0089595-0256-01LOCATING PIN£2.47 Add to
0091137-0446-01Momentförstarkare Booster Incl pos 43£729.67 Add to
0101139-2106-01PINION (STEERING BOOSTER)£148.89 Add to
0111139-2074-01SEAL KIT (STEERING BOOSTER) (OBSOLETE)N/A
012387869521/0STEERING SERVO-VALVE HOSE 1/4£92.57 Add to
0131134-6323-01BANJO BOLT 3/8"£10.50 Add to
0141134-4948-01SEAL WASHER 1/4"£2.59 Add to
0151134-4114-01BUSH£19.93 Add to
016387869520/0PUMP-STEERING SERVO HOSE 1/4£63.03 Add to
0171134-6323-01BANJO BOLT 3/8"£10.50 Add to
0181134-4948-01SEAL WASHER 1/4"£2.59 Add to
019112815200/0SCREW TTDQ M6X16£2.06 Add to
020137295200/0CENTRAL HOSE FIXING GUIDE£20.58 Add to
021112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
0241137-0155-01SPACER£4.52 Add to
0259897-1040-12SCREW M10 x 40£3.49 Add to
026112794900/0HEX-HEAD SCREW M10 x 50£2.06 Add to
0271134-0041-02BUSH£10.09 Add to
0281134-2816-01SPROCKET£10.77 Add to
029112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
0309739-1031-22NUT M10£2.32 Add to
031387106408/0STEERING CHAIN£279.64 Add to
032187000352/0STEERING CHAIN 41M ELITE FM W/SERVO£28.90 Add to
0331134-6374-04CHAIN (45 LINKS)£16.10 Add to
0341134-3565-01CONNECTION NIPPLE£16.17 Add to
035187060100/1STEERING CHAIN LOCK£7.62 Add to
0361134-3550-01END NIPPLE [L=110]£18.53 Add to
0371134-3817-01COMPRESSION SPRING£12.96 Add to
0389699-0090-02WASHER 8.4 x 18 x 1.5£2.32 Add to
039112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
040112794300/0SCREW TE M10 x 30£1.91 Add to
0411134-3547-01SPROCKET£12.96 Add to
0421134-0041-01BUSH£9.41 Add to
0439739-1031-22NUT M10£2.32 Add to
0441134-3022-01BRACKET£62.97 Add to
0451134-3550-02END NIPPLE [L=90]£18.27 Add to
0461134-3817-01COMPRESSION SPRING£12.96 Add to
0479699-0090-02WASHER 8.4 x 18 x 1.5£2.32 Add to
048112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
049337670201/0WASHER£3.64 Add to
