Transmission (Mechanical Parts)

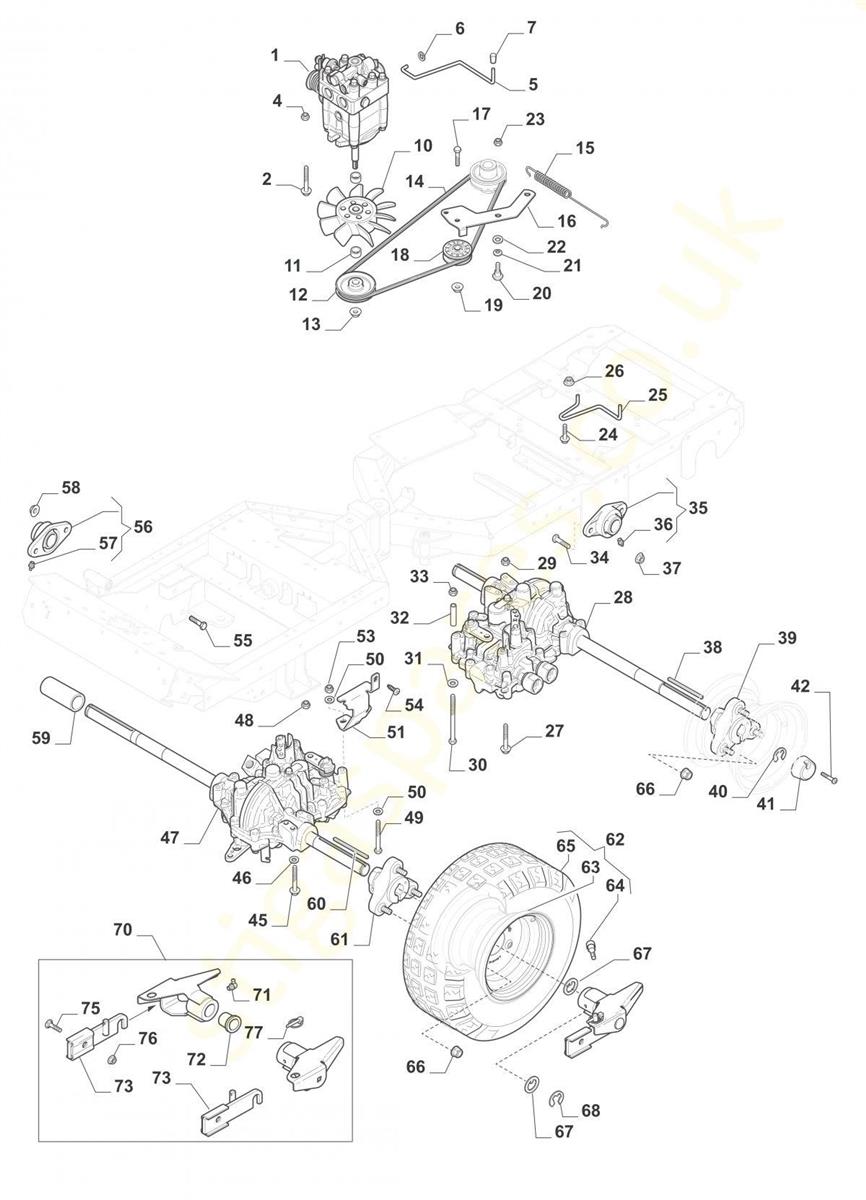

Transmission (Mechanical Parts) assembly details for Stiga Stiga Park Pro 340 IX 13-6451-11 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-5700-01HYDRAULIC PUMP KPL-10ALP£934.99 Add to
0029997-1040-16SCREW M6S 10 x 40£7.23 Add to
0049731-1031-22LOCK NUT M6MF M10£2.47 Add to
0051134-5763-01PULL ROD£8.04 Add to
006112604896/0STARLOCK WASHER D=6£2.06 Add to
0071134-4014-01KNOB£5.19 Add to
0101134-4190-01FAN£22.35 Add to
0111134-5862-01SPACER£6.16 Add to
0121134-5821-01BELT PULLEY£31.89 Add to
0139731-1031-22LOCK NUT M6MF M10£2.47 Add to
0141134-9058-01TRANSMISSION BELT£23.04 Add to
0151134-5713-02SPRING£12.96 Add to
0161134-5739-01TENSION ARM£45.26 Add to
017112794300/0SCREW TE M10 x 30£1.91 Add to
018387605012/0TENSION PULLEY£59.68 Add to
0199739-1031-22NUT M10£2.32 Add to
0201134-0240-00SCREW£9.14 Add to
0219665-0002-00BOWL WASHER£2.61 Add to
0221134-4242-01SPACER WASHER£4.78 Add to
023112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0249959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
0251134-5764-01BELT GUIDE£10.09 Add to
0261137-0155-01SPACER£4.52 Add to
0279960-0860-12SCREW M8 x 60£2.32 Add to
0281134-5701-01REAR TRANSAXLE KTM 10G£1,078.62 Add to
029112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0309997-0812-02SCREW M6S M8 x 120£2.06 Add to
031112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
0321134-1565-15SPACER£5.46 Add to
033112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0349997-1040-16SCREW M6S 10 x 40£7.23 Add to
0351134-5703-01FLANGE BEARING UNIT£24.95 Add to
036112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.06 Add to
0379731-1031-22LOCK NUT M6MF M10£2.47 Add to
0381134-3383-02KEY (L=51 MM)£9.41 Add to
0391134-4844-03WHEEL HUB ASSEMBLY£58.87 Add to
0409653-0002-04CIRCLIP 1"£3.69 Add to
0411134-4796-01HUB CAP£5.46 Add to
0429947-0540-19SCREW£2.06 Add to
045112691900/0HEX-HEAD SCREW£1.91 Add to
046112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
0471134-5702-01FRONT TRANSAXLE (KTM 10F)£952.72 Add to
048112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
049112692050/0HEX-HEAD SCREW£1.91 Add to
050112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
051387785205/0ENGINE SUPPORT PLATE£43.23 Add to
053112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0541134-4242-01SPACER WASHER£4.78 Add to
0559997-1040-16SCREW M6S 10 x 40£7.23 Add to
0561134-5703-01FLANGE BEARING UNIT£24.95 Add to
057112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.06 Add to
0591137-1093-01SPACER£2.87 Add to
0601134-3383-02KEY (L=51 MM)£9.41 Add to
0611134-4844-03WHEEL HUB ASSEMBLY£58.87 Add to
062387680309/0WHEEL ASSEMBLY 17"£232.10 Add to
063187000454/0WHEEL RIM 5.5" x 8"£84.77 Add to
064125950000/0PNEUMATIC VALVE£5.73 Add to
065137950017/0TYRE 17 x 8.00-8 KENDA K383A Power Turf£96.73 Add to
0669731-1031-22LOCK NUT M6MF M10£2.47 Add to
067137670203/0WASHER DEST=45 DINT=25.6£5.05 Add to
0689731-1031-22LOCK NUT M6MF M10£2.47 Add to
0689653-0002-04CIRCLIP 1"£3.69 Add to
07013-0993-61RAC QUICK CONNECTION 4WD PARK£145.95 Add to
0719501-0502-00GREASE JOINT£8.87 Add to
0721134-5686-01BEARING BUSH D= 25.4mm£14.58 Add to
0731134-7465-01ATTACHMENT HOOK PLATES [LH & RH]£53.42 Add to
0759898-1035-16SCREW 10 x 35£3.15 Add to
0769739-1031-22NUT M10£2.32 Add to
0771137-0077-01LOCKING PIN£3.81 Add to
