Steering Wheel

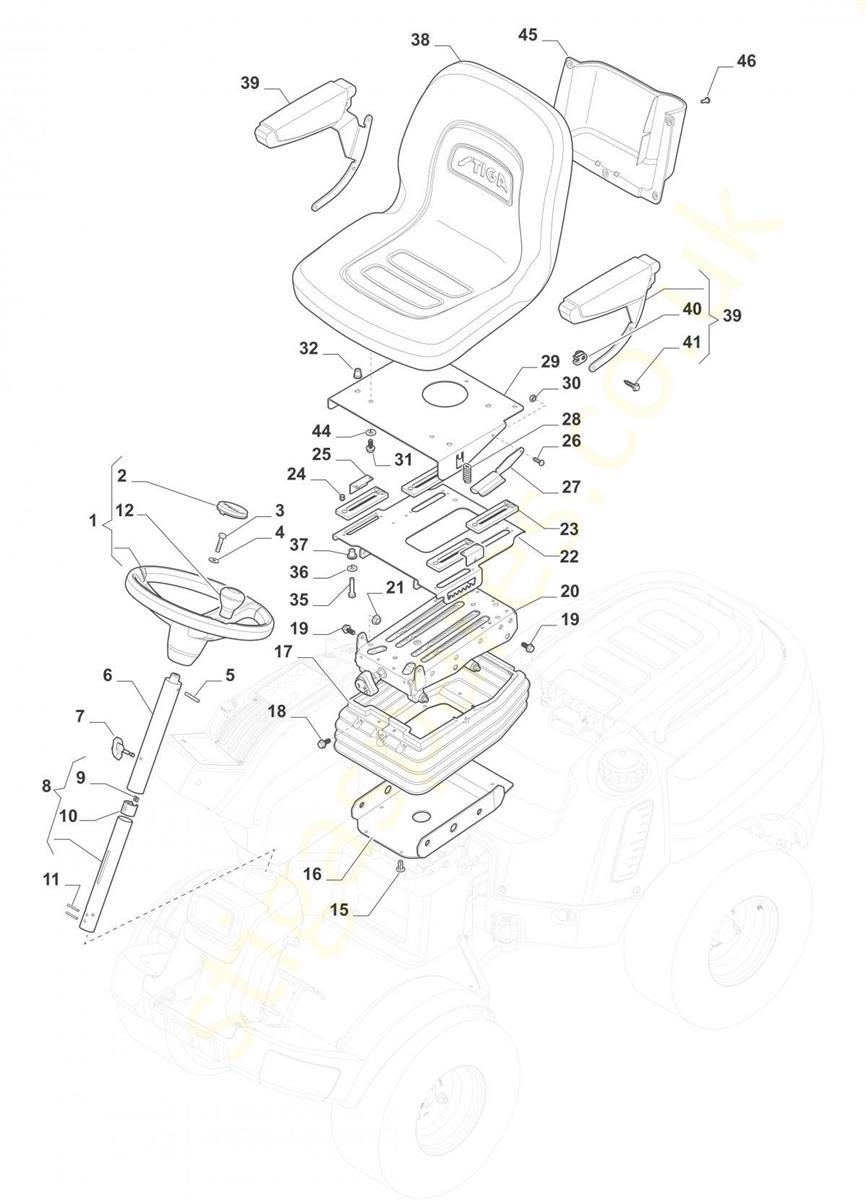

Steering Wheel assembly details for Stiga Stiga Park Pro 540 IX 13-6471-11 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001337961200/0STEERING WHEEL [BLACK]£287.40 Add to
002337580550/0STEERING WHEEL PLATE£8.75 Add to
003112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
004112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
005112620299/0SPIROL FLEXIBLE PIN 6 x 45£1.91 Add to
006387520101/1UPPER STEERING COLUMN£95.67 Add to
007337394201/0WING NUT£13.64 Add to
008387520105/1LOWER STEERING COLUMN£113.39 Add to
0099710-0631-12SQUARE NUT£3.55 Add to
0101134-5177-01SLIDE COLLAR£13.64 Add to
0119595-0262-00LOCATING PIN£2.06 Add to
012187593701/0STEERING WHEEL KNOB£48.11 Add to
015118737220/0PLASTIC FASTPOINT CLIP£2.06 Add to
016387785203/0LOWER SEAT SUPPORT£227.63 Add to
017337737500/0RUBBER SEAT PROTECTION£86.13 Add to
0181134-4242-01SPACER WASHER£4.78 Add to
0199959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
020387754201/0Seat Support£421.83 Add to
0211137-0155-01SPACER£4.52 Add to
022387547013/0UPPER SEAT PLATE£123.07 Add to
023337546531/0SEAT PLATE GUIDE£7.92 Add to
024112500070/0RIVET D=4.8 x 12£1.79 Add to
025337546535/0PROTECTION PLATE£7.23 Add to
0269893-0616-16SCREW M6 x 16£2.47 Add to
0271134-6073-01HANDLE ASSEMBLY£41.16 Add to
0281134-3262-01SPRING£8.73 Add to
029387547015/0SEAT PLATE£101.13 Add to
030112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
031112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
032112500094/0SEMI-HEXAGONAL RIVET NUT M8£2.47 Add to
033112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
035112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
036112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
037137040602/0SEAT GUIDE BUSH£6.42 Add to
038137722603/0Sits Seat£381.83 Add to
039387185100/0ARM RESTS KIT£216.66 Add to
0401139-0011-01SPEED NUT PLATE-ARM RESTS£3.55 Add to
0411139-0010-01SCREW-ARM RESTS£3.81 Add to
045337592350/0REAR SEAT TRAY [BLACK]£28.90 Add to
046112727801/0SCREW TCB TORX M6 x 20£2.06 Add to
