Engine - B&S

Engine - B&S assembly details for Stiga Stiga Park Pro 740 IOX 13-6491-11 2016 model

Parts list

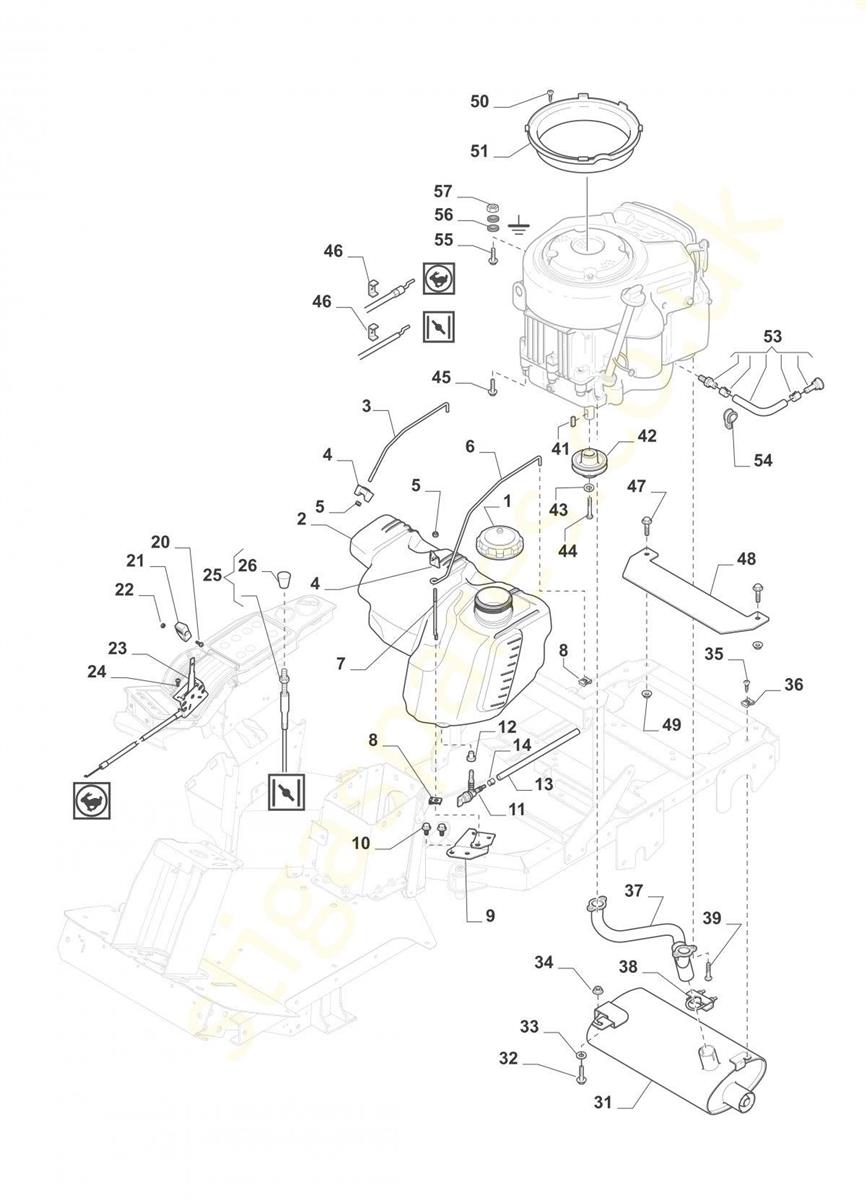

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	137793050/0	FUEL TANK CAP	£44.00	Add to
002	337735110/1	FUEL TANK [15 LITRES]	£132.33	Add to
003	137840001/0	FUEL TANK ROD	£20.18	Add to
004	1134-4481-02	WING NUT	£6.14	Add to
005	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
006	137840002/0	FUEL TANK ROD	£19.90	Add to
007	137840003/0	FUEL TANK ROD SUPPORT	£5.46	Add to
008	1134-4176-01	CLIP	£5.19	Add to
009	337785023/0	TANK SUPPORT BRACKET	£31.17	Add to
010	1134-4242-01	SPACER WASHER	£4.78	Add to
011	1134-3224-01	FUEL SHUT-OFF VALVE	£24.95	Add to
012	1134-3225-01	GROMMET	£7.57	Add to
013	1134-2975-13	FUEL HOSE	£31.49	Add to
014	9578-0023-02	HOSE CLAMP	£5.73	Add to
020	112726388/0	CROSS-HEAD SCREW M4X12	£2.06	Add to
021	337592150/0	THROTTLE KNOB [BLACK]	£3.41	Add to
022	112290800/0	HEXAGON NUT M4 UNI 5588 ACC.6S	£2.06	Add to
023	187000201/0	THROTTLE CABLE [B&S]	£56.36	Add to
024	112735105/0	SELF-TAP SCREW TE 3.5 x 16	£2.06	Add to
025	137090200/0	CHOKE CONTROL CABLE	£71.14	Add to
026	1134-4338-01	CHOKE CONTROL BUTTON	£15.81	Add to
031	1137-0179-01	MUFFLER	£534.69	Add to
031	1137-0073-01	MUFFLER	£250.74	Add to
032	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
033	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
034	1137-0155-01	SPACER	£4.52	Add to
035	9893-0616-16	SCREW M6 x 16	£2.47	Add to
036	1137-1130-01	SQUARE WASHER	£4.23	Add to
037	118738253/1	EXHAUST PIPE 27HP	£218.32	Add to
038	084-351-01	TUBE CLAMP	£10.23	Add to
039	112737450/0	SCREW 5/16 x 3/4 18 THREAD	£3.55	Add to
039	112760515/0	HEXAGONAL SCREW TC M8 x 20	£0.79	Add to
041	9600-0251-00	KEY L=3/4"	£4.91	Add to
042	1137-0207-01	ENGINE PULLEY	£38.44	Add to
043	112543000/0	SAFETY WASHER D=7/16	£2.06	Add to
044	112737320/0	THREADED SCREW 7/16" x 3" 20 UNF	£4.78	Add to
045	9955-3725-16	SCREW 3/8" x 25	£2.87	Add to
046	1137-0115-01	WIRE CLAMP	£2.18	Add to
047	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
048	1137-0072-01	DEFLECTOR	£65.69	Add to
049	1137-0155-01	SPACER	£4.52	Add to
050	112728714/0	SELF-TAP SCREW K50 x 20	£2.40	Add to
051	337108501/0	AIR DUCT B&S 27HP	£12.14	Add to
053	1137-1018-01	Oil Discharge Extension	£10.95	Add to
054	133320509/0	CABLE HOLDER	£1.79	Add to
055	112691115/0	HEX-HEAD SCREW M8 x 40	£2.06	Add to
056	112540260/0	INNER TOOTHED WASHER M8	£2.06	Add to
057	112154210/0	SELF-LOCK WINGED NUT M8 DIN 6927	£2.06	Add to
