Frame

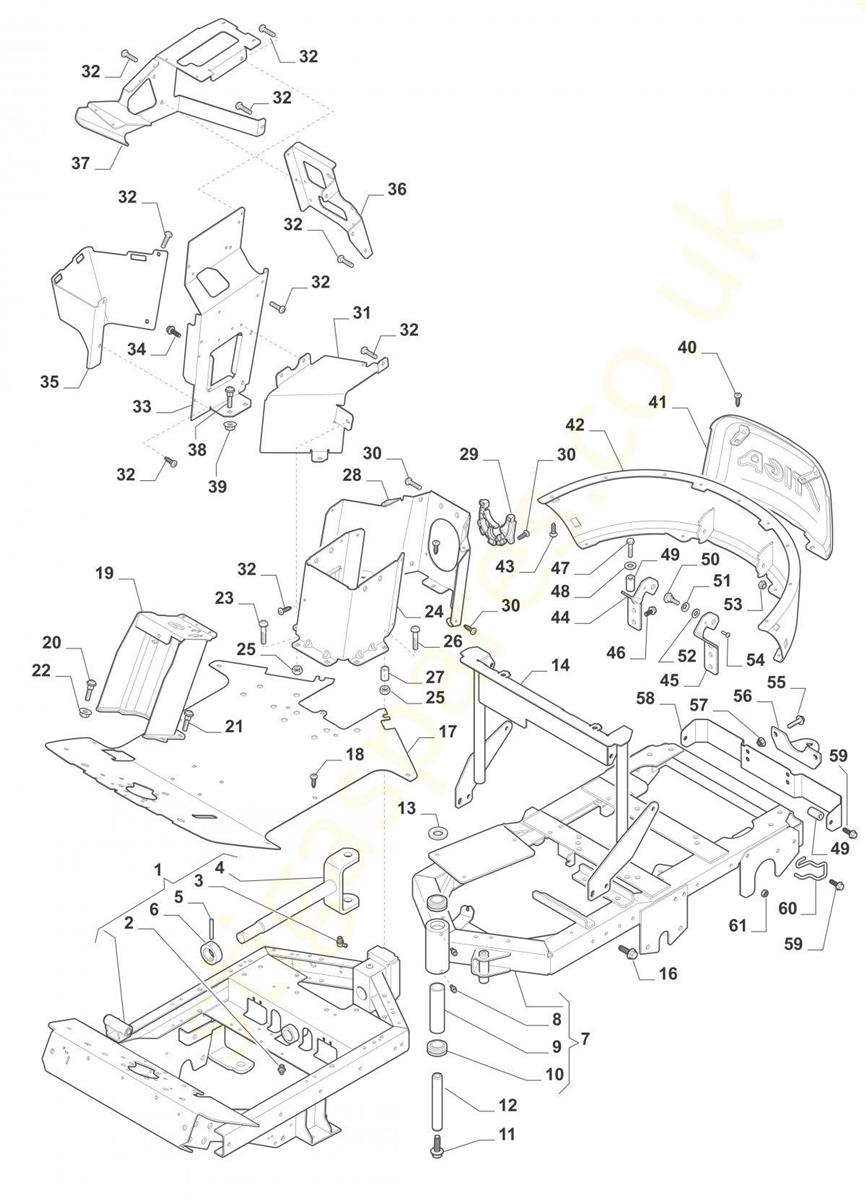

Frame assembly details for Stiga Stiga Park Pro 740 IOX 13-6491-11 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001387800003/0FRONT FRAME ASSEMBLY [PARK PRO]£815.39 Add to
002112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.06 Add to
0039501-0504-01GREASE NIPPLE M6£3.69 Add to
004387130001/0CLEVIS ASSEMBLY£191.06 Add to
0059595-0262-00LOCATING PIN£2.06 Add to
0061134-0031-00PIVOT SHAFT STOP£24.95 Add to
007387800005/0REAR FRAME ASSEMBLY [PARK PRO]£974.60 Add to
008112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.06 Add to
0091134-5705-01SPACER£19.36 Add to
0109547-0001-00BEARING£24.95 Add to
0119959-1025-16SCREW M6SF M10 x 25 TL£3.00 Add to
0121134-5988-01CENTRE SHAFT£22.76 Add to
013112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
014387800001/0TANK FRAME SUPPORT ASSEMBLY£170.61 Add to
0161134-4242-01SPACER WASHER£4.78 Add to
017387507501/1FOOTBOARD£184.24 Add to
0189893-0616-16SCREW M6 x 16£2.47 Add to
019387785201/0STEERING COLUMN SUPPORT£154.73 Add to
020112818700/0SCREW M8 x 25£2.81 Add to
021112760610/0SCREW M8 x 25£2.06 Add to
022112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
0239897-0820-16SCREW M8 x 20£2.32 Add to
024387547011/0FRONT SEAT COLUMN PLATE£88.63 Add to
025112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0269897-0880-12SCREW MVBF 8 x 80£2.32 Add to
0271134-1565-08SPACER£9.94 Add to
028387547009/0REAR SEAT COLUMN PLATE£117.75 Add to
029337085501/0HOSES GUIDE£6.01 Add to
0309893-0616-16SCREW M6 x 16£2.47 Add to
031387547007/0FRONT TUNNEL PLATE£71.14 Add to
0329893-0616-16SCREW M6 x 16£2.47 Add to
033387547001/0LOWER INNER PLATE£105.21 Add to
034112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
035387057500/0COVER HAND CONTROL BASE£98.40 Add to
036387547003/0UPPER INNER PLATE£82.33 Add to
037387547005/0FRONT INNER PLATE£109.88 Add to
0389897-0820-16SCREW M8 x 20£2.32 Add to
039112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0409893-0616-16SCREW M6 x 16£2.47 Add to
041387559001/0REAR BUMPER "STIGA" PLATE£162.60 Add to
042387457001/0REAR BUMPER£287.40 Add to
043112728699/0SELF-TAPPING SCREW K60 x 22£2.06 Add to
044387547017/0RIGHT UPPER BRACKET£15.13 Add to
045387547019/0LEFT UPPER BRACKET£15.13 Add to
0461134-4242-01SPACER WASHER£4.78 Add to
0479945-0825-16SCREW M6SF M8 x 25£2.32 Add to
048122671651/0WASHER 8.3 x 22 x 2£2.32 Add to
0491134-1565-01SPACER£14.58 Add to
0501134-0240-00SCREW£9.14 Add to
0519665-0002-00BOWL WASHER£2.61 Add to
0521134-4242-01SPACER WASHER£4.78 Add to
053112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
054112735654/0SELF-TAPPING SCREW M5 x 16£2.74 Add to
0559959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
0561134-5512-01TOWING PLATE£20.72 Add to
0571137-0155-01SPACER£4.52 Add to
058387602503/0HEAT PROTECTION GUARD£54.79 Add to
0599945-0825-16SCREW M6SF M8 x 25£2.32 Add to
060387602501/0MUFFLER GUARD£16.63 Add to
061112155015/0SELF-GRIP NUT M8(FROM 1ST SEPT 2015)£2.06 Add to
