Hydraulic Lift

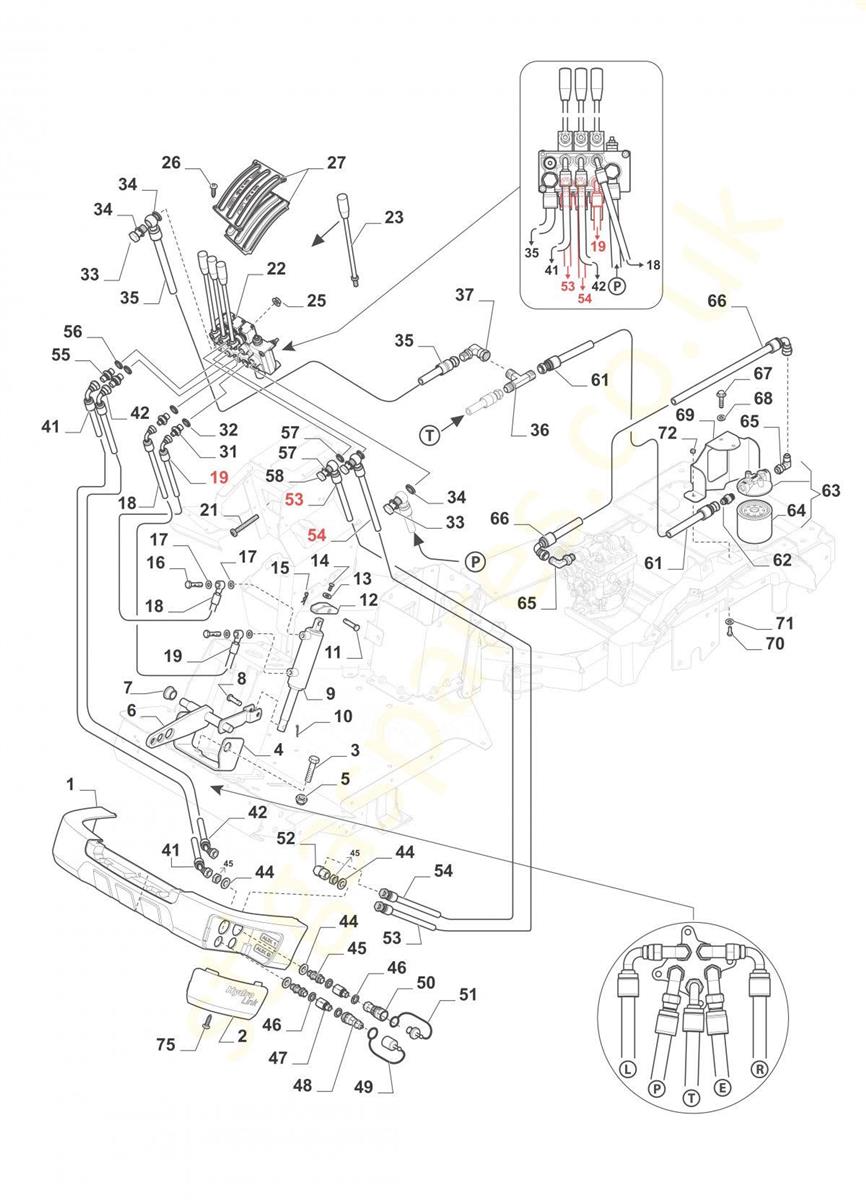

Hydraulic Lift assembly details for Stiga Stiga Park Pro 740 IOX 13-6491-11 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001337502501/0FRONT BUMPER WITH PTO [GREY]£54.79 Add to
002337109530/0HYDRAULIC PTO COVER [GREY]£7.11 Add to
003112794300/0SCREW TE M10 x 30£1.91 Add to
004337774007/0FULCRUM BRACKET£34.97 Add to
005112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
006387256051/0LIFT LEVER ASSEMBLY£124.29 Add to
0071134-2684-01BUSH£7.10 Add to
0081134-4817-01PIN£12.96 Add to
0091137-0071-01HYDRAULIC CYLINDER£368.20 Add to
0109599-0054-02SPLIT PIN£2.32 Add to
0111134-4816-01PIN£13.64 Add to
0121134-4815-01CYLINDER BRACKET£58.87 Add to
013112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
0149893-0616-16SCREW M6 x 16£2.47 Add to
0149598-0002-02SPRING PIN 2.5mm L=47mm£2.06 Add to
0161134-4826-01BANJO BOLT£15.81 Add to
0171134-4947-01COPPER WASHER 10 x 14 x 1.5£5.73 Add to
0181137-0193-01HYDRAULIC HOSE 90° 3/16"£89.43 Add to
0191137-0193-01HYDRAULIC HOSE 90° 3/16"£89.43 Add to
021112735669/0SCREW TCB TORX M6 x 50£2.06 Add to
022187145000/1HAND OPERATED VALVE (3 WAY)£1,346.18 Add to
023187318253/0OPERATING LEVER£51.32 Add to
025112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
026112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
027387559002/0THREE WAY VALVE COVER£37.22 Add to
0311134-4824-01ADAPTER£12.00 Add to
0321134-4948-01SEAL WASHER 1/4"£2.59 Add to
0331134-6323-01BANJO BOLT 3/8"£10.50 Add to
0341134-4948-02SEAL WASHER 3/8"£2.06 Add to
035387869509/0HYDRAULIC HOSE "T"£84.77 Add to
036112375000/0"T" TUBE CONNECTION£15.41 Add to
037112000401/090° TUBE CONNECTOR£12.96 Add to
041387869503/0HYDRO INLET PTO HOSE£101.13 Add to
042387869503/0HYDRO INLET PTO HOSE£101.13 Add to
044112522050/0WASHER M12 16 x 28 x 2.5£2.14 Add to
0451134-7296-01HYDRAULIC COUPLING 1/4"£19.22 Add to
0461134-4948-01SEAL WASHER 1/4"£2.59 Add to
047112446500/01/4 BSP M/F TUBE CONNECTION£9.96 Add to
0481134-6042-01QUICK COUPLING-MALE 1/4"£32.08 Add to
0491134-7175-01PLASTIC CAP£8.87 Add to
0501135-2498-01KNOB£7.78 Add to
0511134-7173-01PLASTIC PLUG 1/4"£13.95 Add to
052112000400/090° BSP M/F TUBE CONNECTION£26.18 Add to
053387869504/0HYDRO OUTLET PTO HOSE£99.76 Add to
054387869504/0HYDRO OUTLET PTO HOSE£99.76 Add to
055112375001/01/4 BSP M/M TUBE CONNECTION£6.27 Add to
0561134-4948-01SEAL WASHER 1/4"£2.59 Add to
0571134-4948-01SEAL WASHER 1/4"£2.59 Add to
058112320450/01/4 BANJO DRILLED NUT£8.45 Add to
061387869510/0HYDRAULIC HOSE£75.23 Add to
062387520119/0LOWER STEERING COLUMN£74.87 Add to
0631134-4587-01HYDRAULIC FILTER ASSEMBLY INC. 064£167.16 Add to
0641134-4109-01OIL FILTER£61.60 Add to
065112000402/090° UNF JIC M/M TUBE CONNECTION£13.37 Add to
066387869505/0HYDRAULIC HOSE£84.77 Add to
0679931-3516-16HEXAGONAL SCREW 1/4-20 X 5/8 UNC 8.8£3.64 Add to
068112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
069337785011/0OIL FILTER SUPPORT£62.97 Add to
070112791200/1SCREW TE M6 x 16£1.79 Add to
071112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
072112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
075112735598/0SCREW£2.06 Add to
