Steering

Steering assembly details for Stiga Stiga Park Pro 740 IOX 13-6491-11 2016 model

Parts list

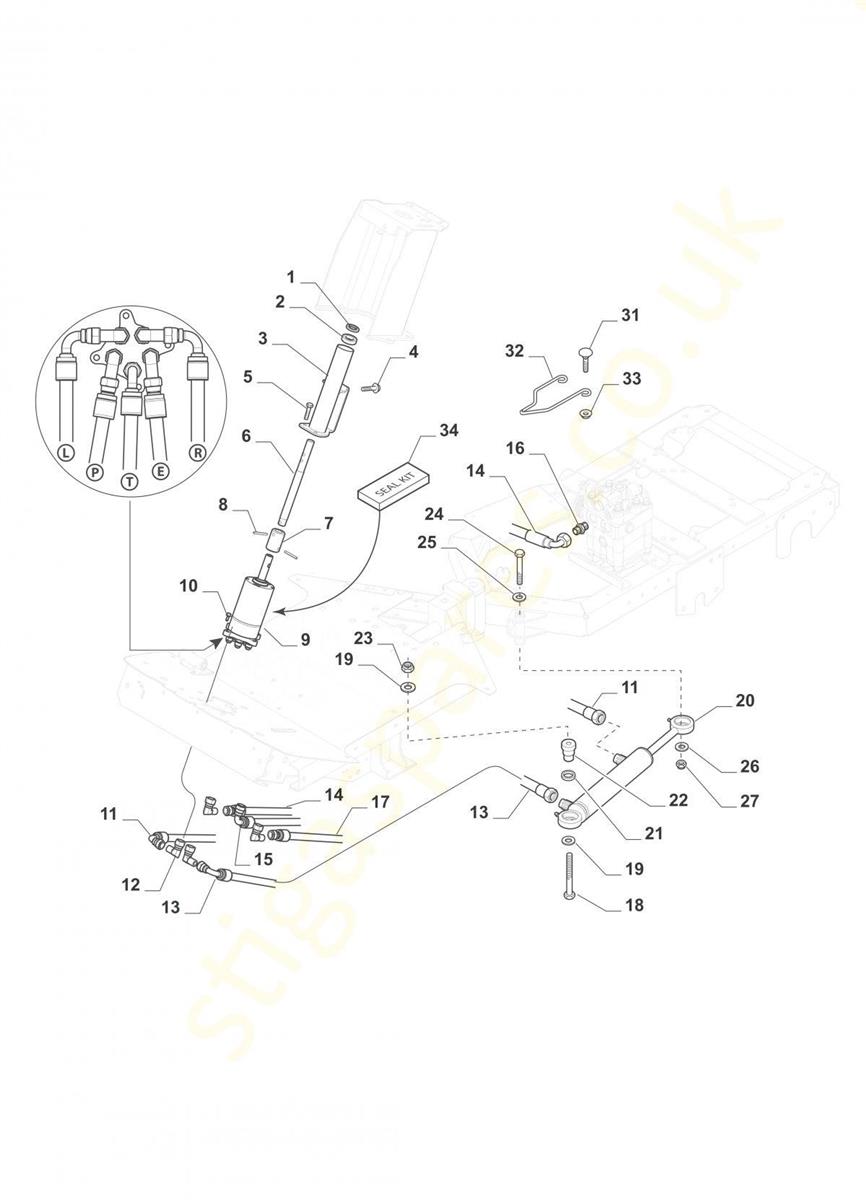

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0019695-0011-00WASHER 16 x 22 x 1£2.47 Add to
0029549-0017-00BALL BEARING£12.14 Add to
003387650001/0STEERING COLUMN SUPPORT£92.95 Add to
0041134-4242-01SPACER WASHER£4.78 Add to
0059939-0612-16SCREW M6 x 12£2.32 Add to
0061137-0045-01STEERING ROD£54.04 Add to
007137040601/0STEERING LINKAGE SPACER£21.40 Add to
0089595-0256-01LOCATING PIN£2.47 Add to
009187305500/0STEERING BOOSTER£1,199.45 Add to
0109959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
011387869501/0LEFT STEERING HOSE£80.68 Add to
012112000401/090° TUBE CONNECTOR£12.96 Add to
013387869502/0RIGHT STEERING HOSE£83.40 Add to
014387869507/0POWER PUMP-STEERING SERVO HOSE£95.67 Add to
015387869506/0SERVO TANK "T" CONNECTION HOSE£91.58 Add to
016387520119/0LOWER STEERING COLUMN£74.87 Add to
017387869508/0SERVO-HAND OPERATED VALVE HOSE£95.67 Add to
018112760572/0SCREW M10 x 80£5.87 Add to
019112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
020187584000/0STEERING CYLINDER£685.16 Add to
0211134-0052-00SPACER£8.87 Add to
022137510301/0STEERING PISTON PIN£13.91 Add to
023112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
024112692080/0HEX-HEAD SCREW M8 x 90£2.06 Add to
025112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
026112524006/0PLAIN WASHER M8 8.4 x 23 x 4£2.87 Add to
027112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
031112815200/0SCREW TTDQ M6X16£2.06 Add to
032137295200/0CENTRAL HOSE FIXING GUIDE£20.58 Add to
033112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
0341139-2081-01SEAL KIT£197.87 Add to
