Transmission (2)

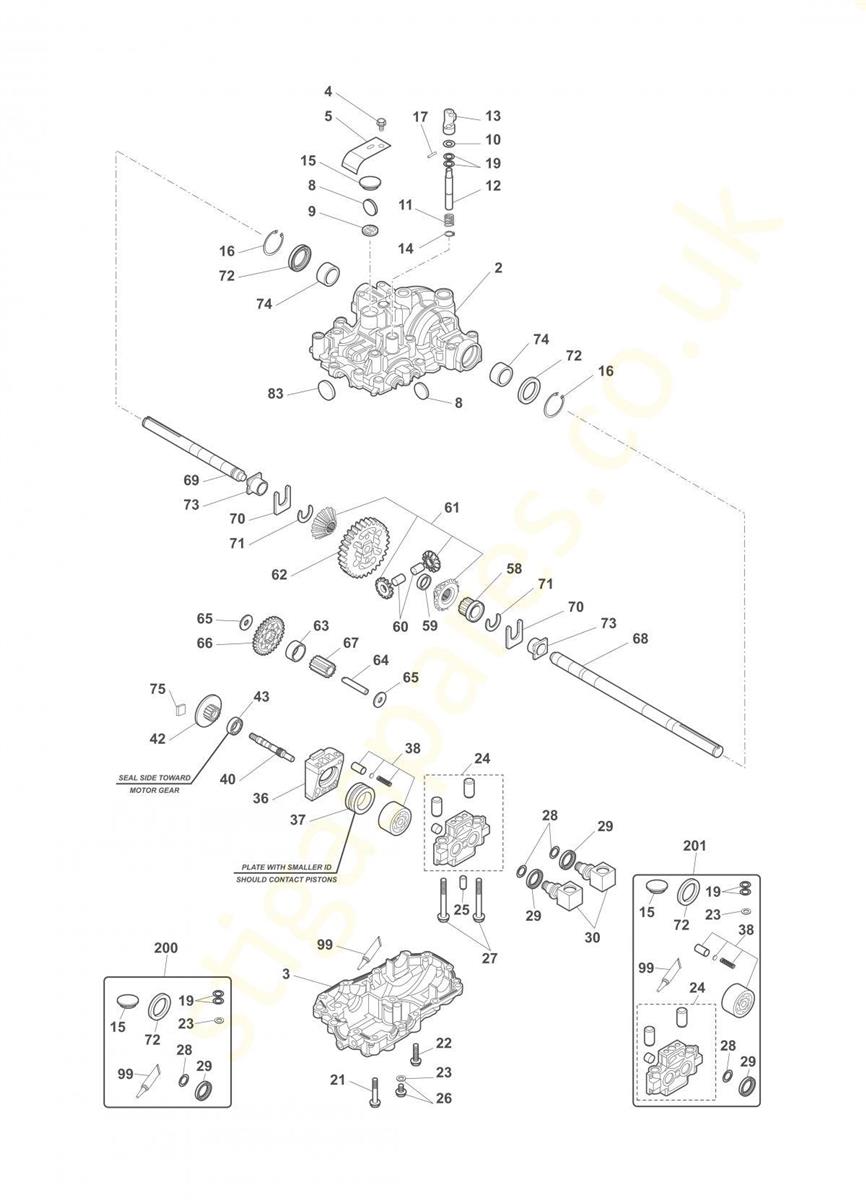

Transmission (2) assembly details for Stiga Stiga Park Pro 740 IOX 13-6491-11 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-5702-01	FRONT TRANSAXLE (KTM 10F)	£952.72	Add to
002	1139-1417-01	UPPER HOUSING	£814.79	Add to
002	1139-1604-01	UPPER HOUSING (ITEM 74 INCLUDED)	£691.44	Add to
003	1139-1418-01	LOWER HOUSING	£247.25	Add to
004	1139-1123-01	BOLT 8*12	£3.64	Add to
005	1139-1384-01	SKID PLATE	£17.81	Add to
005A	1139-1603-01	SKID PLATE	£15.36	Add to
008	1139-1150-01	MAGNET	£8.23	Add to
009	1139-1341-01	MAGNET HOLDER	£4.37	Add to
010	1139-1388-01	WASHER	£4.97	Add to
011	1139-1421-01	SPRING (OBSOLETE)	N/A
012	1139-1420-01	BY-PASS SHAFT (OBSOLETE)	N/A
013	1139-1189-01	BY-PASS LEVER	£9.19	Add to
014	1139-1391-01	RING (OBSOLETE)	N/A
015	1139-1397-01	SEALING CAP	£39.05	Add to
016	1139-1444-01	CIRCLIP	£7.57	Add to
017	1139-1280-01	PIN (KTM10M) (OBSOLETE)	N/A
019	1139-1114-01	O RING	£4.80	Add to
021	1139-1291-01	BOLT	£3.64	Add to
022	1139-1448-01	BOLT (OBSOLETE)	N/A
023	1139-1103-01	SEAL WASHER	£6.31	Add to
024	1139-1419-01	CENTER CASE (KTM10G)	£418.37	Add to
024	1139-1419-02	CENTER CASE	£706.43	Add to
024	1139-1723-01	CENTER CASE ASSEMBLY	£590.72	Add to
025	1139-1445-01	PIN (KTM10M)	£3.64	Add to
026	1139-1500-01	DRAIN BOLT KIT	£6.59	Add to
027	1139-1449-01	BOLT	£4.52	Add to
028	1139-1446-01	O RING	£6.25	Add to
029	1139-1447-01	SEAL	£17.51	Add to
030	1139-1737-01	CONNECTOR	£249.48	Add to
036	1139-1422-01	HOUSING (KTM10M)	£68.42	Add to
036	1139-1504-01	MOTOR HOUSING	£81.95	Add to
037	1139-1438-01	BEARING	£115.86	Add to
038	1139-1139-01	CYLINDER BLOCK ASSEMBLY	£245.56	Add to
038	1139-1509-01	CYLINDER BLOCK KIT	£250.75	Add to
040	1139-1425-01	MOTOR SHAFT	£135.19	Add to
042	1139-1442-01	MOTOR GEAR	£26.33	Add to
043	1139-1286-01	BALL BEARING	£13.80	Add to
043	1139-1453-01	BEARING	£18.75	Add to
058	1139-1330-01	COLLAR	£20.62	Add to
059	1139-1435-01	COLLAR	£29.67	Add to
060	1139-1440-01	PIN	£5.66	Add to
061	1139-1439-01	DIFFERENTIAL GEAR KIT	£150.01	Add to
062	1139-1429-01	FINAL GEAR	£487.44	Add to
063	1139-1427-01	COLLAR (KTM10M)	£31.26	Add to
064	1139-1256-01	REDUCTION SHAFT	£14.69	Add to
065	1139-1398-01	WASHER	£5.21	Add to
066	1139-1441-01	REDUCTION GEAR	£27.15	Add to
067	1139-1361-01	FINAL PINION GEAR	£25.15	Add to
068	1139-1432-01	R/H AXLE SHAFT L=518MM	£628.73	Add to
069	1139-1431-01	L/H AXLE SHAFT	£388.53	Add to
070	1139-1194-01	THRUST WASHER	£10.04	Add to
071	1139-1155-01	RING	£3.27	Add to
072	1139-1044-01	SEAL 25.4428	£23.04	Add to
073	1139-1156-01	BUSH	£9.40	Add to
074	1139-1415-01	BUSH (25.4)	£9.47	Add to
075	1139-1260-01	BRAKE SHOE	£2.18	Add to
083	1139-1450-01	SEALING CAP	£23.31	Add to
099	1139-1443-01	SEALANT (TUBE)	£38.16	Add to
200	1139-1436-01	SEAL KIT	£115.86	Add to
