KANZAKI WHEEL ENGINE KWM 13S-186H MOTOR ASSY-BRAKE

KANZAKI WHEEL ENGINE KWM 13S-186H MOTOR ASSY-BRAKE assembly details for Stiga Stiga TITAN 540D 13-7454-11 2016 model

Parts list

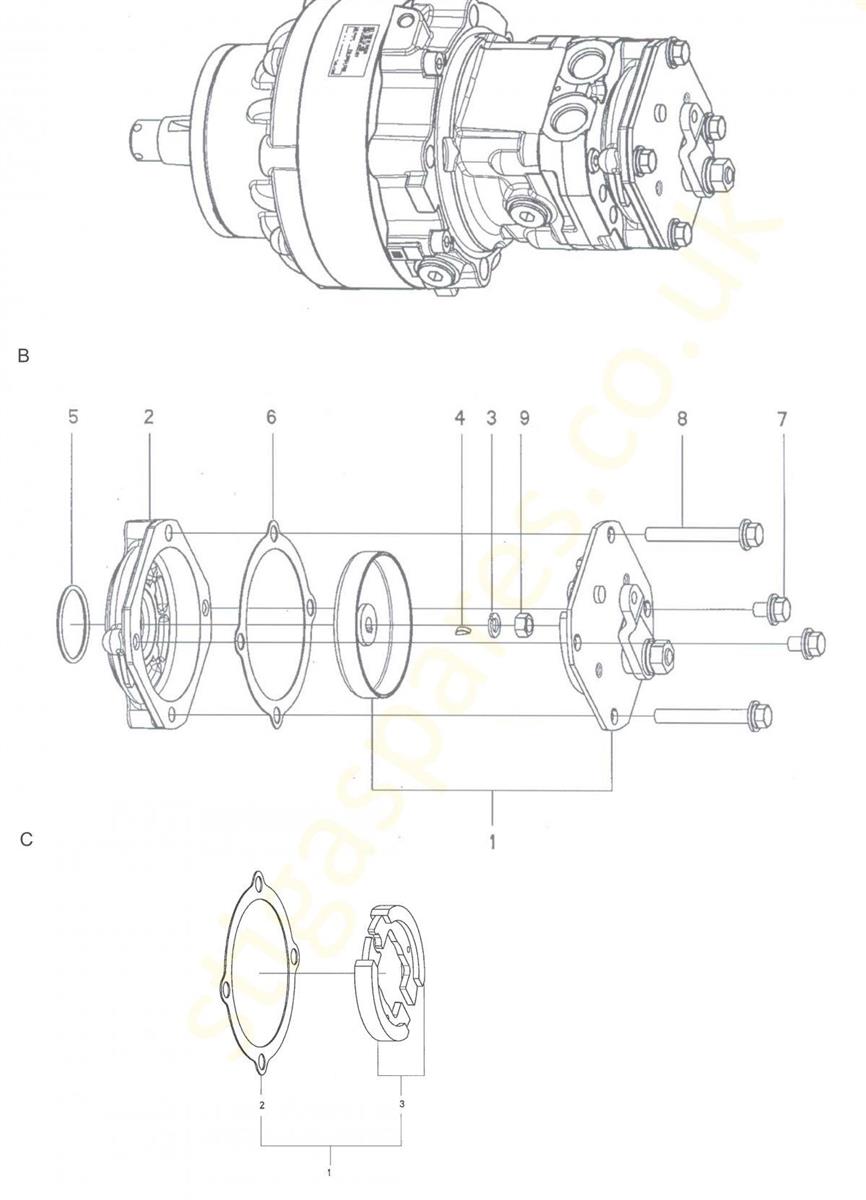

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
A011137-0961-01WHEEL MOTOR KWM 13S-186D£3,931.64 Add to
B011139-1753-01BRAKE KIT£899.66 Add to
B021139-1650-01BRAKE CASE (B02)£179.92 Add to
B031139-1577-01WASHER (B03)£2.00 Add to
B041139-1578-01KEY£5.87 Add to
B051139-1580-01SEAL RING£3.69 Add to
B061139-1698-01GASKET (B02)£24.64 Add to
B081139-1538-01BOLT W/WASHER£6.46 Add to
B091139-1589-01NUT 8£2.47 Add to
C011139-1705-01BRAKE SERVICE KIT [BIG BRAKE]£518.10 Add to
C021139-1698-01GASKET (B02)£24.64 Add to
