ELECTRICAL SYSTEM 1

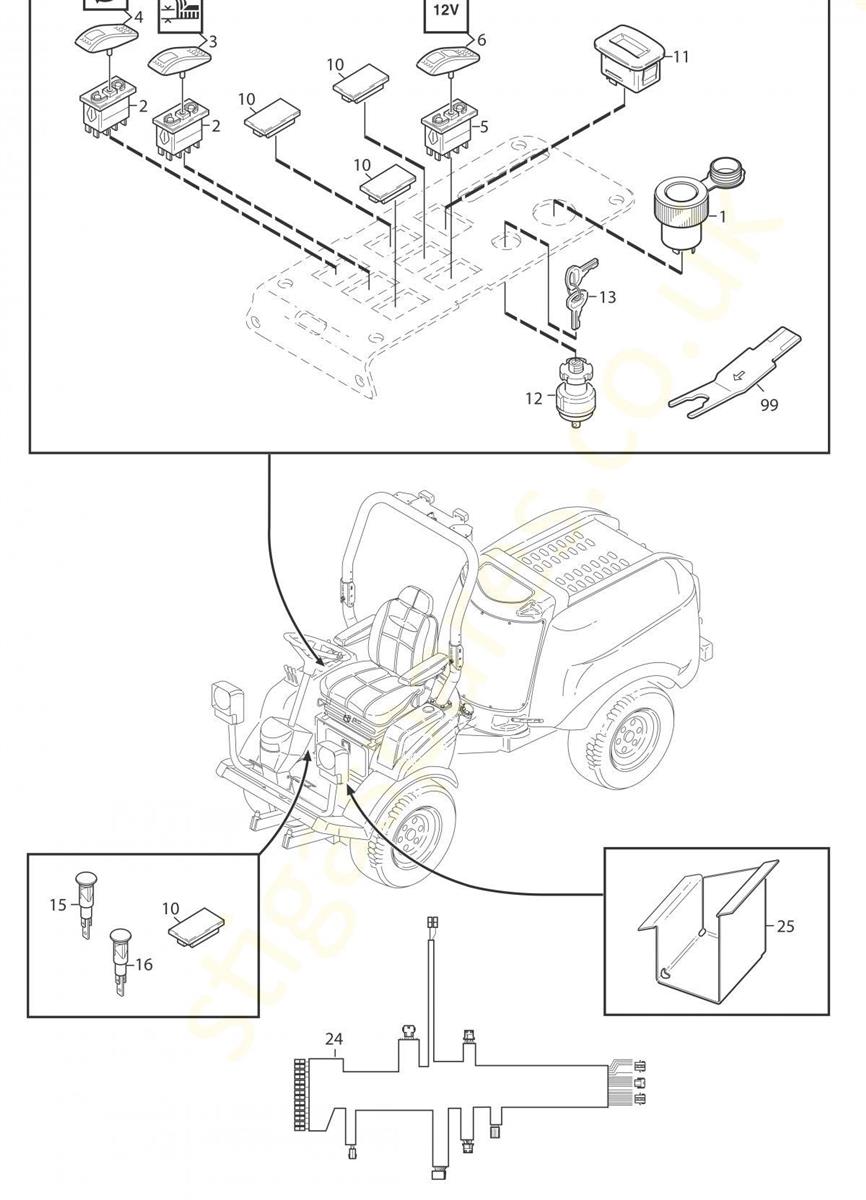

ELECTRICAL SYSTEM 1 assembly details for Stiga Stiga TITAN 740D 13-7460-11 2016 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	9400-0317-02	DC-SOCKET	£17.72	Add to
002	9400-0282-01	SWITCH C/W DIODE No returns on this item	£76.59	Add to
003	9400-0280-03	SWITCH COVER-HEIGHT ADJUST	£18.27	Add to
004	9400-0343-01	SWITCH COVER-PTO	£9.28	Add to
005	9400-0321-01	SWITCH	£61.60	Add to
006	9400-0322-01	SWITCH COVER-12V	£16.22	Add to
010	1134-4129-01	COVER	£6.14	Add to
011	1134-6097-02	HOUR METER	£102.01	Add to
012	1135-2754-01	IGNITION KEY SWITCH	£156.31	Add to
013	1135-2505-01	REAR COVER	£76.59	Add to
015	9400-0320-01	PILOT LAMP [RED]	£10.33	Add to
016	9400-0346-01	PILOT LAMP [FLASHING RED]	£15.41	Add to
024	1137-0817-01	WIRING HARNESS	£409.09	Add to
025	1137-0697-01	STORAGE BOX	£55.21	Add to
