FRAME-REAR

FRAME-REAR assembly details for Stiga Stiga TITAN 740D 13-7460-11 2016 model

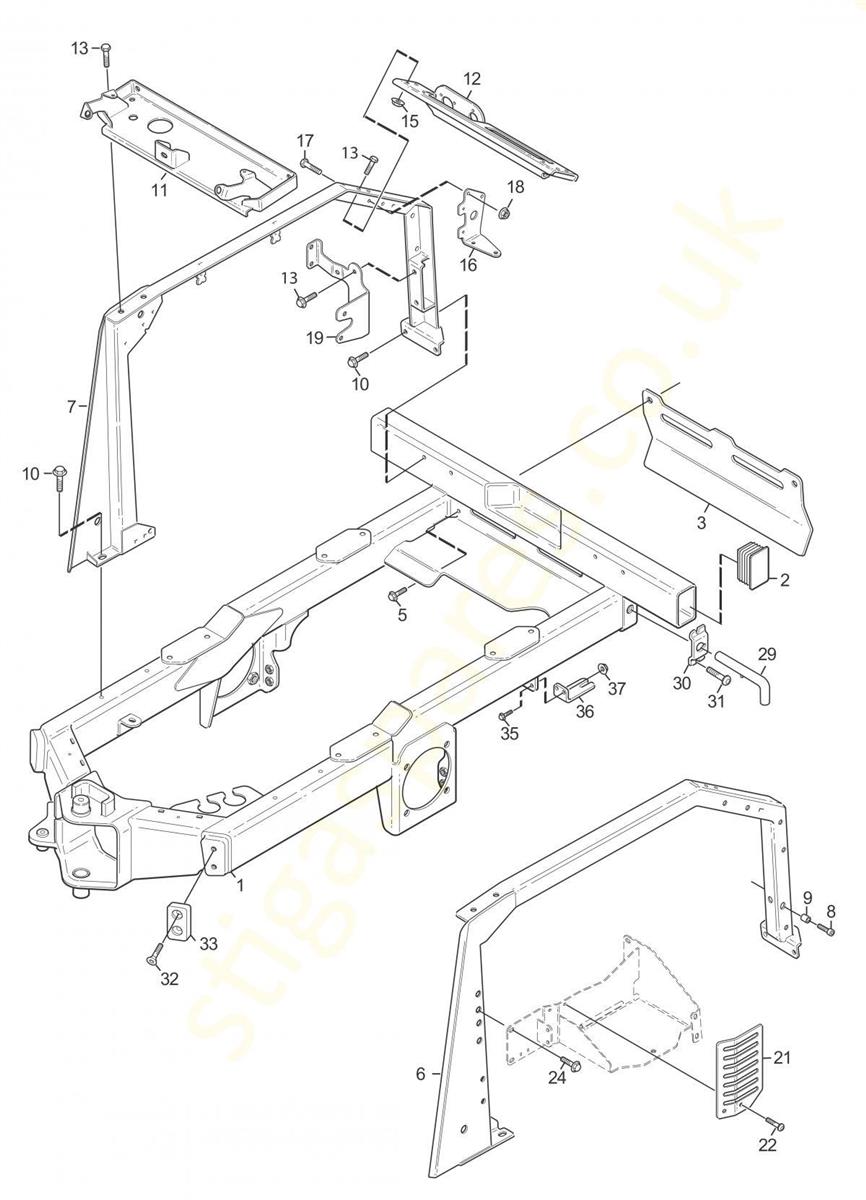

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1137-1121-01	Frame-rear	N/A	POA
002	9403-0058-01	END CAP	£8.32	Add to
003	1137-0553-01	HEAT GUARD	£92.95	Add to
005	1134-4242-01	SPACER WASHER	£4.78	Add to
006	1137-0490-01	LOAD FRAME L/H	£540.89	Add to
007	1137-0489-01	LOAD FRAME R/H	£540.89	Add to
008	9939-1020-16	SCREW	£2.06	Add to
009	1134-0041-10	BUSH	£42.53	Add to
010	9959-1025-16	SCREW M6SF M10 x 25 TL	£3.00	Add to
011	1137-0501-01	FRONT CROSS MEMBER	£378.23	Add to
012	1137-0508-01	REAR CROSS MEMBER	£165.76	Add to
013	1182800815/0	Screw	N/A	POA
015	1137-0155-01	SPACER	£4.52	Add to
016	1137-0557-01	BRACKET-FUEL PUMP	£39.80	Add to
017	9893-0616-16	SCREW M6 x 16	£2.47	Add to
019	1134-0556-01	Bracket PTO Block	N/A	POA
022	9893-0816-16	SCREW (OBSOLETE)	N/A
023	1137-0551-01	BELT GUARD-ALTERNATOR	£49.29	Add to
029	1134-7525-01	LOCKING PIN	£56.15	Add to
030	1134-7523-01	BRACKET-LOCKING PIN	£12.96	Add to
031	112735662/1	SCREW TCB TORX M6 x 12	£2.87	Add to
032	9924-0820-16	SCREW (OBSOLETE)	N/A
033	1135-3188-01	STEERING LIMIT	£26.18	Add to
035	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
036	1137-0591-01	MUFFLER BRACKET	£29.14	Add to
037	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
