KANZAKI HYDRAULIC PUMP KPS-23ALPH CHARGE PUMP-CENT CASE

KANZAKI HYDRAULIC PUMP KPS-23ALPH CHARGE PUMP-CENT CASE assembly details for Stiga Stiga TITAN 740DCR 13-7462-11 2016 model

Parts list

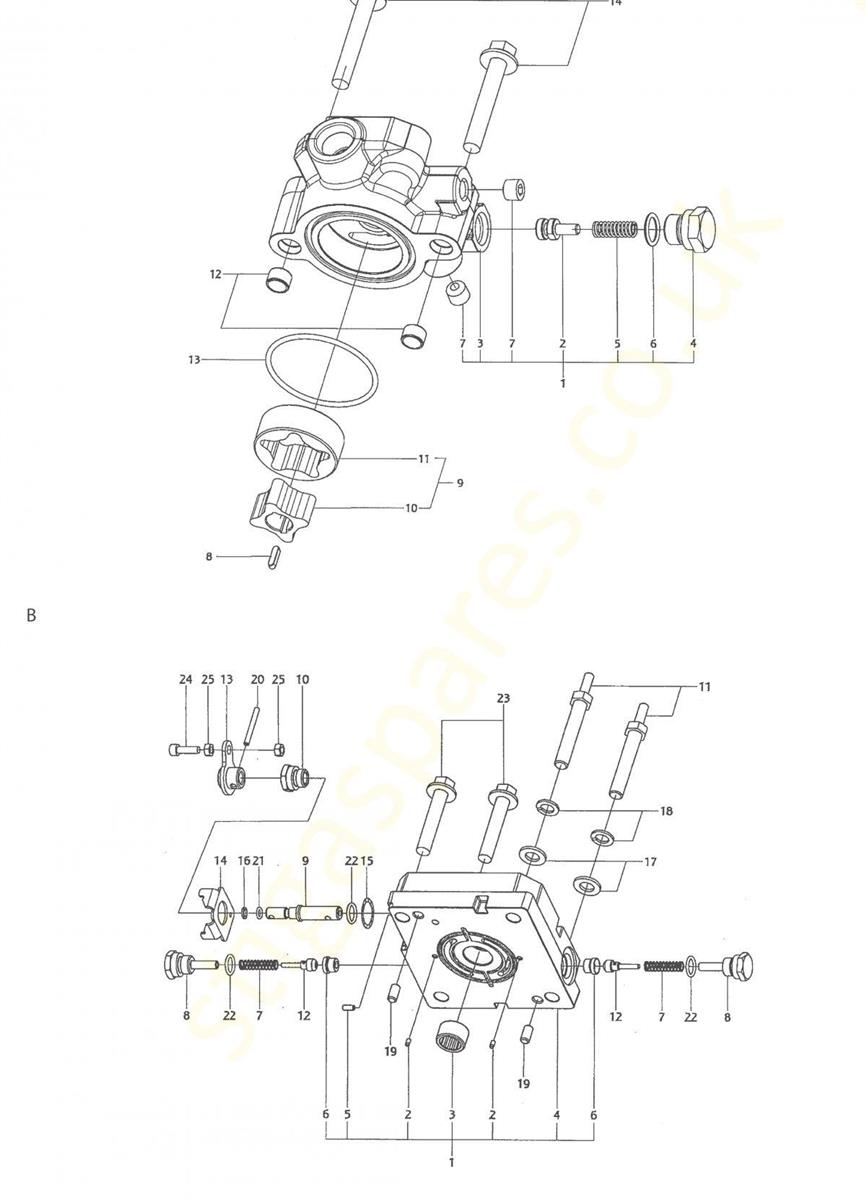

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
A011139-1709-01PUMP BODY A CMP£441.82 Add to
A021139-1571-01RELIEF VALVE£21.72 Add to
A031139-1710-01PUMP BODY A£357.16 Add to
A041139-1546-01PLUG£35.57 Add to
A051139-1570-01SPRING (OBSOLETE)N/A
A061139-1168-01O RING£2.87 Add to
A071139-1107-01PLUG£6.94 Add to
A081139-1693-01KEY£9.67 Add to
A091139-1694-01ROTOR SET (6 cc/rev)£144.95 Add to
A121139-1166-01PIN£4.94 Add to
A131139-1683-01SEAL RING£7.63 Add to
A141139-1715-01BOLT 8 x 55£21.67 Add to
B011139-1706-01CENTRE CASE ASSEMBLY£1,372.94 Add to
B021139-1058-01KNOCK PIN (OBSOLETE)N/A
B051139-1394-01PIN (OBSOLETE)N/A
B071139-1547-01SPRING (SUCTION)£6.94 Add to
B081139-1548-01CHECK PLUG£68.66 Add to
B091139-1549-01BY-PASS PIN (OBSOLETE)N/A
B101139-1371-01BY-PASS ADAPTER£36.13 Add to
B111135-3987-01BOLT (OBSOLETE)N/A
B121139-1368-01CHECK VALVE F£38.16 Add to
B131139-1372-01BY-PASS LEVER£61.17 Add to
B141139-1373-01PLAT BY-PASS PLATE£7.11 Add to
B151139-1522-01WAVE WASHER£4.01 Add to
B161139-1387-01RING BACK-UP RING£7.34 Add to
B171139-1102-01WASHER£5.75 Add to
B181139-1679-01WASHER (OBSOLETE)N/A
B191139-1496-01PARALLELL PIN£2.00 Add to
B201139-1395-01PIN (OBSOLETE)N/A
B211139-1112-01O RING£4.01 Add to
B221139-1115-01O RING£1.79 Add to
B231139-1687-01BOLT (OBSOLETE)N/A
B241139-1585-01BOLT (OBSOLETE)N/A
B251139-0247-01NUT (OBSOLETE)N/A
