SEAT 2

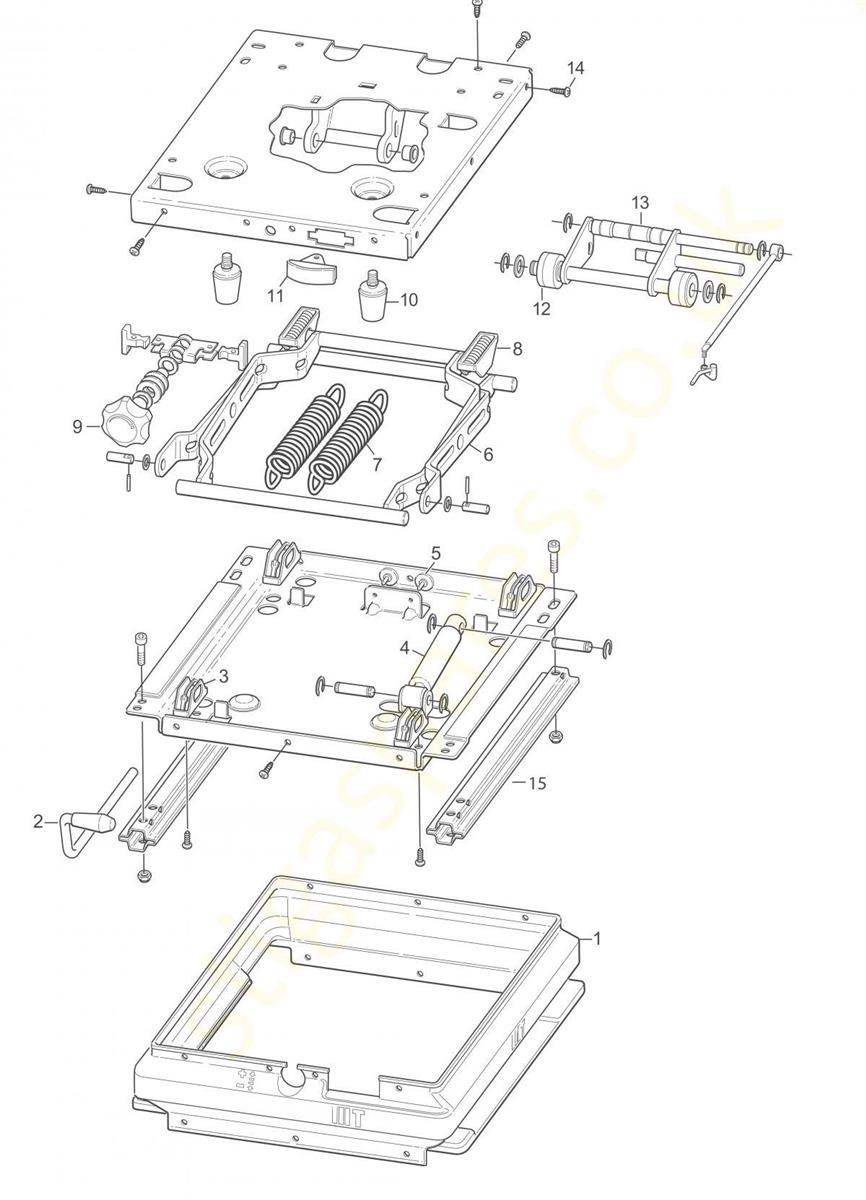

SEAT 2 assembly details for Stiga Stiga TITAN 740DCR 13-7462-11 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011139-0033-01RUBBER COVER£29.12 Add to
0021139-0031-01SEAT RAILS C/W ADJUSTING LEVER£143.37 Add to
0031139-0025-01PIVOT BRACKET£7.90 Add to
0041139-0028-01SEAT DAMPER£79.98 Add to
0051139-0023-01BRACKET£5.52 Add to
0061139-0032-01SPRING FRAME£211.50 Add to
0071139-0029-01SPRING£17.45 Add to
0081139-0026-01PIVOT BRACKET£7.90 Add to
0091139-0034-01ADJUSTMENT KNOB£39.21 Add to
0101139-0017-01RUBBER DAMPER£6.00 Add to
0111139-0027-01LENS£11.04 Add to
0121139-0022-01SPACER£8.21 Add to
0131139-0024-01SHAFT£10.95 Add to
0141139-0030-01SCREW£3.64 Add to
0151139-0069-01Ledskena BracketN/A POA
