YANMAR 3TNV82 TITAN 32 (1)

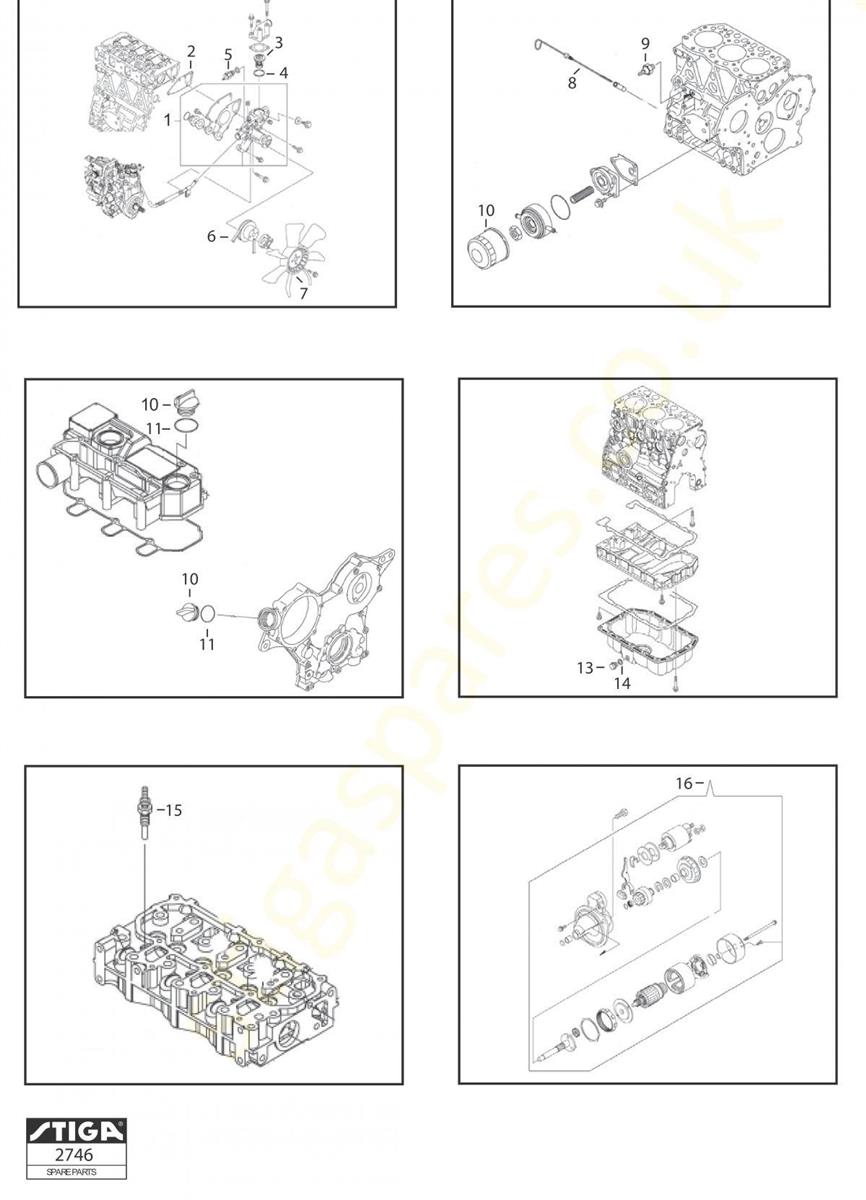

YANMAR 3TNV82 TITAN 32 (1) assembly details for Stiga Stiga TITAN 740DCR 13-7462-11 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011139-2626-01WATER PUMP(OBSOLETE)N/A
0021139-2641-01GASKET(OBSOLETE)N/A
0031139-2640-01THERMOSTAT£124.29 Add to
0041139-2643-01GASKET (OBSOLETE)N/A
0051139-2630-01WATER TEMP. SENSOR£53.22 Add to
0061139-2642-01BELT£57.52 Add to
0071139-2645-01FUEL PRE FILTER£32.92 Add to
0081139-2625-01DIPSTICK OIL£129.74 Add to
0091139-2609-01OIL PRESSURE SWITCH£25.44 Add to
0101139-2635-01OIL FILTER£17.97 Add to
0111139-2631-01COVER OIL FILLER£19.77 Add to
0121139-2648-01O-RING CAP£4.59 Add to
0131139-2617-01DRAIN PLUG£30.88 Add to
0141139-2646-01WASHER DRAIN PLUG£5.37 Add to
0151139-2633-01Glow plug (OBSOLETE)N/A
0161139-2638-01STARTER£1,846.73 Add to
