Body Work

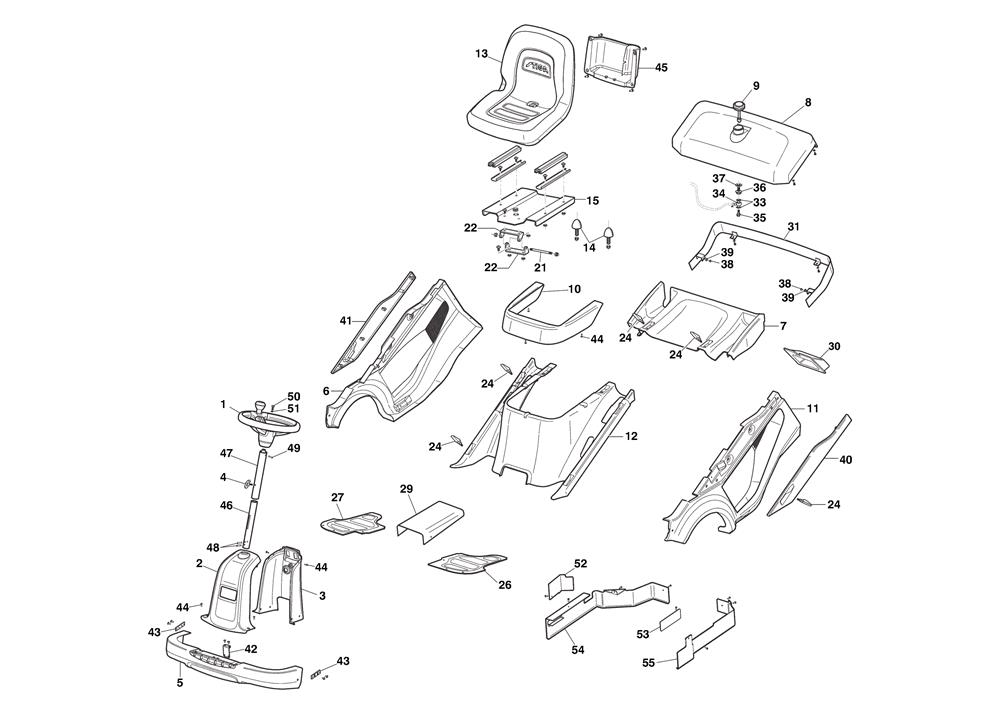

Body Work assembly details for Stiga MPV 320 W (2F2020521/S17) 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001337961200/0STEERING WHEEL [BLACK]£287.40 Add to
002337110344/0STEERING COLUMN COVER [YELLOW]£54.79 Add to
003337110345/0REAR STEERING COVER [GREY]£37.16 Add to
004337394201/0WING NUT£13.64 Add to
005337502514/0FRONT BUMPER [GREY]£57.47 Add to
006337110349/0R/H SIDE COVER [GREY]£268.07 Add to
007337110348/0ENGINE COVER [GREY]£94.31 Add to
008337735113/0GTR FUEL TANK [GREY NCS]£211.50 Add to
009118830360/0FUEL TANK CAP£50.70 Add to
010337110347/0UPPER FRAME COVER [YELLOW]£60.24 Add to
011337110350/0L/H SIDE COVER [GREY]£268.07 Add to
012337110346/0CENTRAL COVER [GREY]£155.53 Add to
013137722603/2SEAT [PARK]£381.83 Add to
014118830364/0SEAT PLATE GROMMET£10.36 Add to
024118830359/0LOCKING KNOB£10.77 Add to
026337110357/0L/H RUBBER FOOTBOARD COVER [BLACK]£32.29 Add to
027337110356/0R/H RUBBER FOOTBOARD COVER [BLACK]£32.29 Add to
028118830357/0CAP£2.06 Add to
029118830718/0COVER£23.23 Add to
030118830493/0REAR CAP£28.90 Add to
031387111507/0TANK COVER [YELLOW]£84.70 Add to
034118830387/0JOINT£5.73 Add to
037118830382/0GASKET£2.23 Add to
038112788800/0HEX-HEAD SCREW M5 x 10£1.79 Add to
039112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
040337110352/0L/H SIDE COVER INSERT [YELLOW]£43.23 Add to
041337110351/0R/H SIDE COVER INSERT [YELLOW]£43.23 Add to
042337774105/0FIXING BRACKET£5.92 Add to
043387785253/0SUPPORT COVER£6.79 Add to
044112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
045337592350/0REAR SEAT TRAY [BLACK]£28.90 Add to
046387520133/0LOWER STEERING COLUMN£48.18 Add to
047387520135/0UPPER STEERING COLUMN£44.87 Add to
0489595-0256-01LOCATING PIN£2.47 Add to
0499595-0256-01LOCATING PIN£2.47 Add to
050112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
051112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
052337600039/0INSIDE BELT PROTECTION GUARD£11.36 Add to
053387603365/0L/H INTERNAL BELT PROTECTION GUARD£9.31 Add to
054337060029/0R/H PROTECTION GUARD [BLACK]£80.68 Add to
055337060030/0L/H PROTECTION GUARD [BLACK]£84.77 Add to
