Grasscatcher

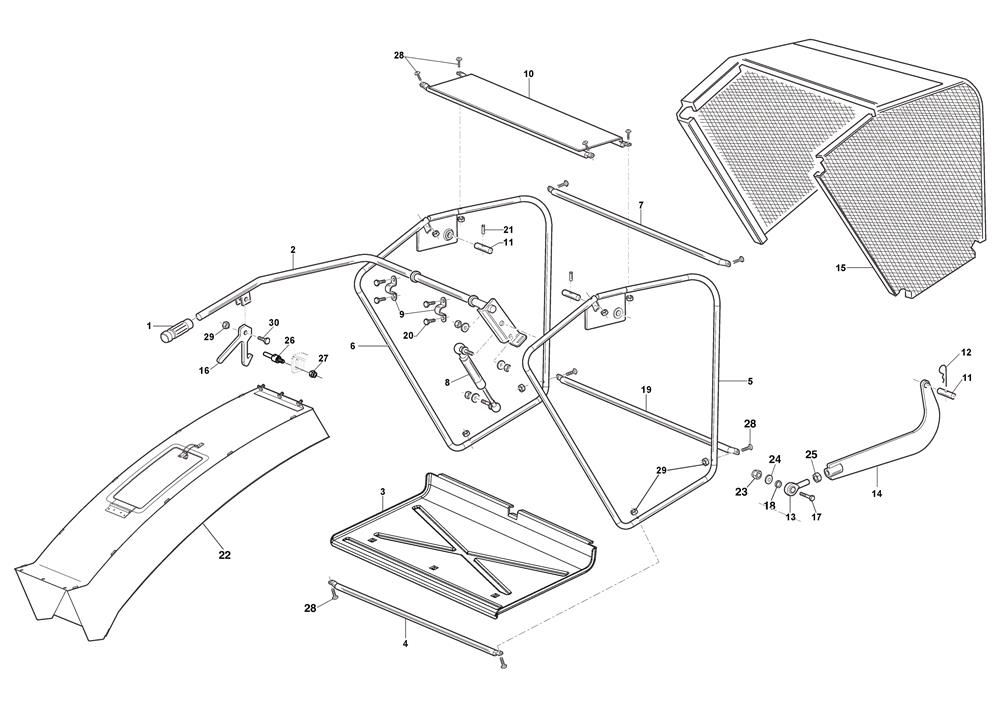

Grasscatcher assembly details for Stiga MPV 320 W (2F2020521/S17) 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118830361/0HANDLE KNOB£4.59 Add to
002118830494/0LEVER ARM£118.55 Add to
003118830489/0GRASSCATCHER BOTTOM COVER£54.79 Add to
004118830496/0LOWER REINFORCEMENT FRAME£17.97 Add to
005118830499/0L/H GRASSCATCHER FRAME£65.50 Add to
006118830500/0R/H GRASSCATCHER FRAME£65.50 Add to
007118830485/0REAR REINFORCEMENT FRAME£13.87 Add to
008118830367/0DAMPER£34.97 Add to
010118830495/0UPPER PLATE£75.41 Add to
014118830502/0TIE ROD£51.81 Add to
015118830693/0GRASSCATCHER BAG£103.85 Add to
020112500070/0RIVET D=4.8 x 12£1.79 Add to
024112522050/0WASHER M12 16 x 28 x 2.5£2.14 Add to
027112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
028112728721/0SCREW M6 x 30£1.91 Add to
029112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
030112791200/1SCREW TE M6 x 16£1.79 Add to
