Hydrostatic Unit Front Axle

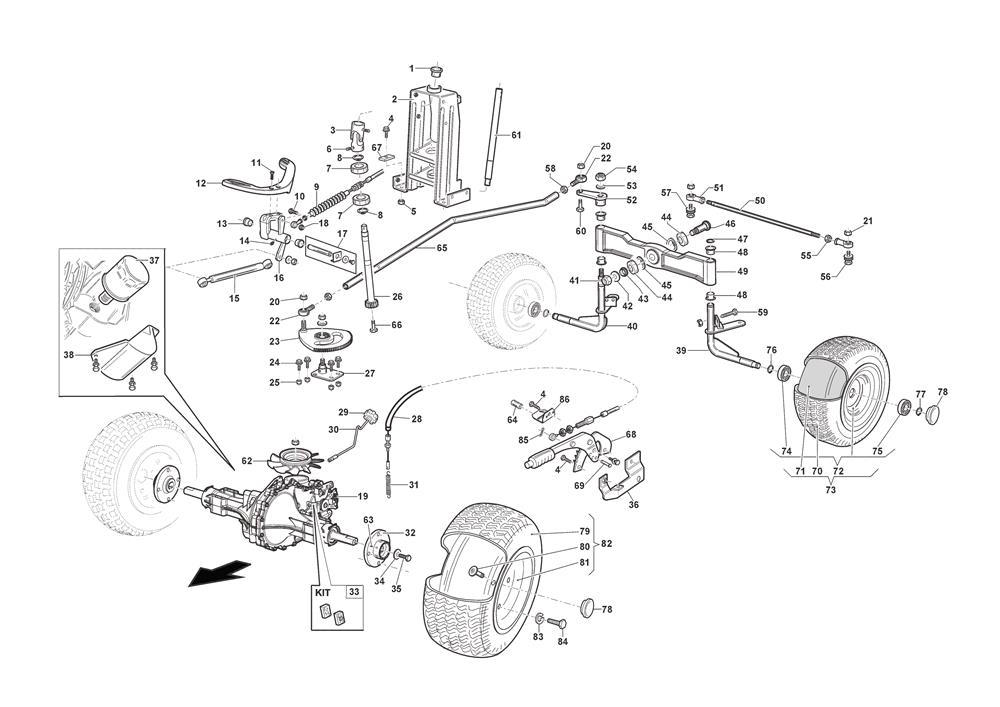

Hydrostatic Unit Front Axle assembly details for Stiga MPV 320 W (2F2020521/S17) 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0049959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
005112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
007119216047/0BEARING 6204-C-2HRS£13.49 Add to
008112609260/0CIRCLIP D=20£2.02 Add to
009118830510/0TRANSMISSION ENGINE CABLE£156.99 Add to
010112791500/0SCREW TE M6x25 UNI 5739 ACC.8.8£2.06 Add to
0119924-0830-16SCREW MF6S M8 x 30£2.06 Add to
014112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.06 Add to
015118830388/0ABSORBER DAMPER£102.48 Add to
016118830498/0SUPPORT ASSEMBLY£34.35 Add to
018112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
020112156603/0SELF-LOCKING NUT M12£2.06 Add to
021112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
023118830461/0STEERING QUADRANT£115.38 Add to
024112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
025112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
026118830431/0STEERING SHAFT£62.97 Add to
028118830487/0PARKING BRAKE CABLE£32.36 Add to
029118830350/0HEIGHT AJUST KNOB£2.14 Add to
032118830415/0WHEEL HUB£124.29 Add to
033118830537/0BRAKE PAD£26.69 Add to
042112521390/0WASHER M16 17 x 30 x 3£1.91 Add to
047112609260/0CIRCLIP D=20£2.02 Add to
049118830410/0REAR AXLE£123.25 Add to
053112521370/0WASHER M12 13 24 x 2.5£2.06 Add to
054112156603/0SELF-LOCKING NUT M12£2.06 Add to
055112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
056112794400/0HEX-HEAD SCREW 10 x 35£2.47 Add to
057112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
058112171502/0NUT M12£3.64 Add to
0609997-1240-16SCREW£3.64 Add to
061137520065/0STEERING COLUMN£26.69 Add to
062118830538/0PULLEY FAN KIT£211.50 Add to
065118830430/0STEERING ROD£68.81 Add to
066112691200/0HEX-HEAD SCREW M8 x 45£2.06 Add to
070118830354/0TYRE 140-6 6PR£52.58 Add to
071118830352/0INNER TUBE£17.09 Add to
072118830689/0WHEEL RIM 3.75 x 6"£59.83 Add to
073118830688/0WHEEL ASSEMBLY 140-6£112.23 Add to
074119216047/0BEARING 6204-C-2HRS£13.49 Add to
076112609260/0CIRCLIP D=20£2.02 Add to
078118830363/0WHEEL CAP£2.78 Add to
079118830355/0TYRE 16 x 7.50-8£91.78 Add to
080118830353/0VALVE£6.39 Add to
081118830692/0WHEEL RIM 5.75 x 8"£74.48 Add to
082118830683/0WHEEL ASSEMBLY 16 x 7.50-8£165.76 Add to
085124487997/0SPRING CLIP D=1.8£2.06 Add to
