Mower Deck

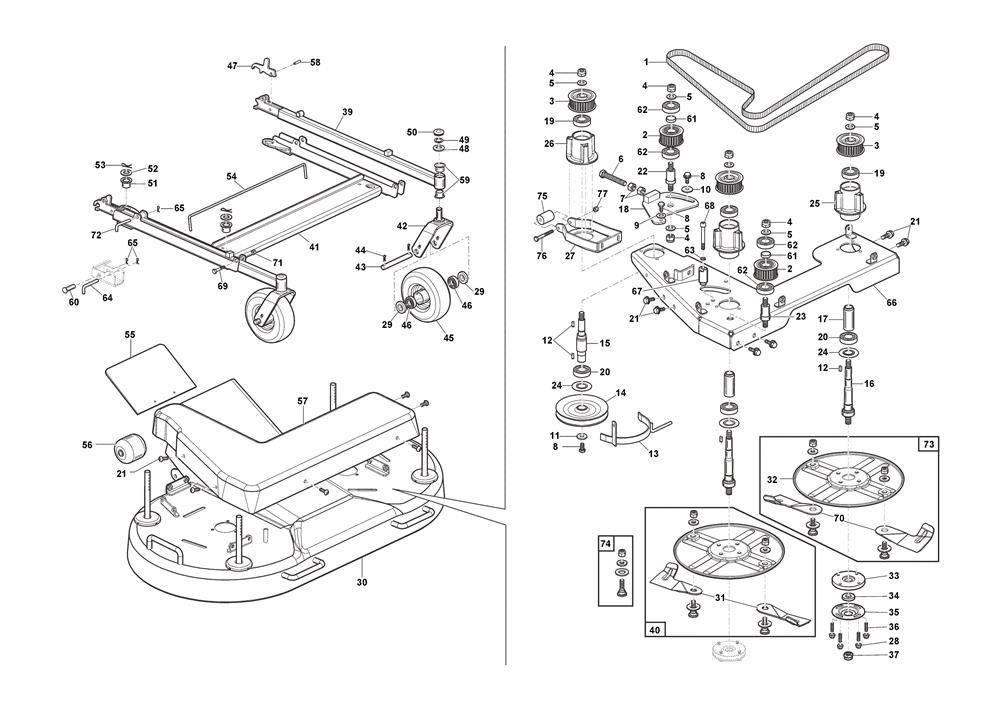

Mower Deck assembly details for Stiga MPV 320 W (2F2020521/S17) 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-9205-01DECK DRIVE BELT£422.72 Add to
002118830456/0PULLEY£99.76 Add to
003118830479/0PULLEY£29.93 Add to
005112522050/0WASHER M12 16 x 28 x 2.5£2.14 Add to
011112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
013387603363/0BELT PROTECTION COVER£35.04 Add to
014118830440/0PULLEY£519.89 Add to
015118830406/0PULLEY SHAFT£69.78 Add to
016118830408/0BLADE SHAFT£98.40 Add to
017118830409/0SPACER£13.31 Add to
0219959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
022118830412/0PIN£46.91 Add to
023118830411/0PIN£46.06 Add to
024118830497/0DUST COVER£2.06 Add to
025118830404/0BLADE SHAFT SUPPORT£38.83 Add to
026118830405/0BLADE SHAFT SUPPORT£39.85 Add to
027118830441/0SUPPORT BRACKET£54.01 Add to
0311134-9201-01BLADE TIP KIT CCW [2 PCS]£77.95 Add to
033118830514/0PULLEY SUPPORT£31.89 Add to
039118830685/0CUTTING DECK FRAME SUPPORT£150.01 Add to
040118830481/0BLADE DISC ASSEMBLY R/H£147.66 Add to
041118830686/0CUTTING DECK FRAME SUPPORT£274.35 Add to
042118830690/0WHEEL FORK SUPPORT£44.02 Add to
043118830529/0PIN£18.90 Add to
045118830402/0FRONT WHEEL£74.78 Add to
049112609260/0CIRCLIP D=20£2.02 Add to
051118830503/0BUSH£2.32 Add to
052112521395/0WASHER M16 17 x 30 x 3£2.06 Add to
055118830427/0DEFLECTOR PLATE£17.18 Add to
056118830356/0ANTI-SCALP WHEEL£11.83 Add to
057118830691/0TRANSMISSION COVER£124.29 Add to
063112585100/0WASHER GROWER M10 UNI 1751£2.06 Add to
064118830527/00PIN£10.73 Add to
0701134-9200-01BLADE TIP KIT CW [2 PCS]£42.53 Add to
071112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
073118830482/0BLADE DISC ASSEMBLY L/H£147.66 Add to
076112691600/0HEX-HEAD SCREW M8x70 UNI 5737 ACC.8.8£1.91 Add to
077112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
