Transmission and PTO Belts

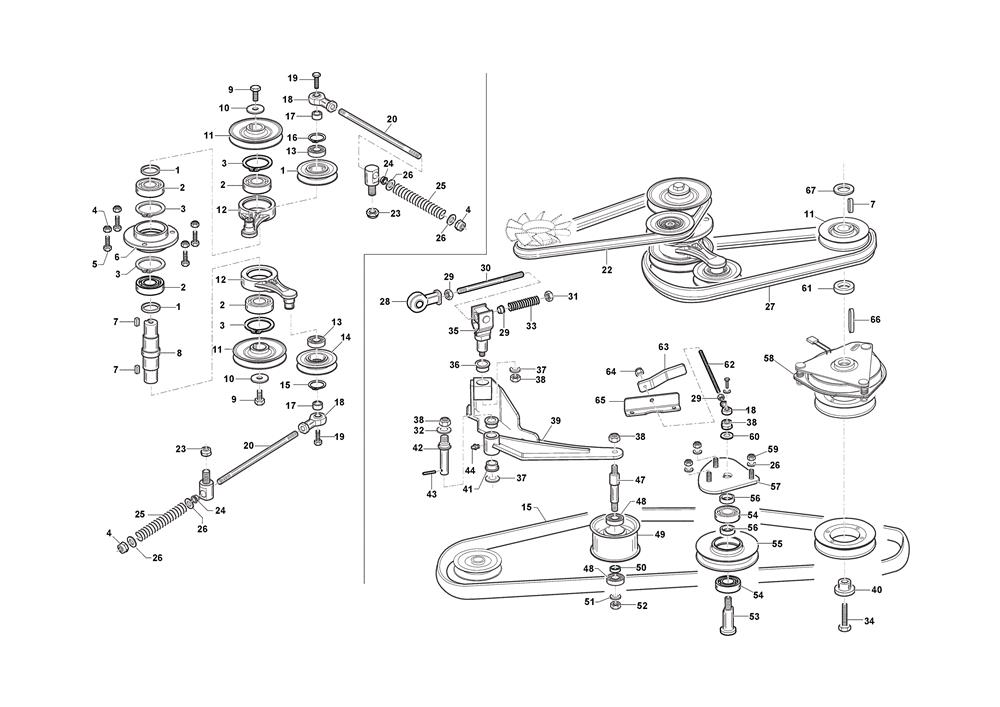

Transmission and PTO Belts assembly details for Stiga MPV 320 W (2F2020521/S17) 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
004112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
005112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
008118830417/0SHAFT£66.12 Add to
0099997-0520-16SCREW M6S M5 x 20£2.32 Add to
0151134-9204-01PTO DRIVE BELT£233.44 Add to
016112610800/0CIRCLIP D=35£2.06 Add to
019112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
020118830507/0ROD£9.46 Add to
0221134-9203-01TRANSMISSION BELT£34.35 Add to
023112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
026112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
0271134-9202-01ENGINE DRIVE BELT£37.08 Add to
029112171502/0NUT M12£3.64 Add to
0319747-1231-02NUT£2.06 Add to
032112521370/0WASHER M12 13 24 x 2.5£2.06 Add to
0349987-5364-12SCREW U6S 7/16" UNF x 64mm (OBSOLETE) (OBSOLETE)N/A
038112156603/0SELF-LOCKING NUT M12£2.06 Add to
043112645705/0ROLL PIN D=5 x 32£2.02 Add to
044112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.06 Add to
048119216048/0BEARING£18.27 Add to
051112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
052112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
058118830398/0ELECTROMAGNETIC CLUTCH£598.57 Add to
059112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
060112521370/0WASHER M12 13 24 x 2.5£2.06 Add to
062118830449/0TIE ROD£4.59 Add to
063118830450/0HANDLE£12.55 Add to
064112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
