Belt Protection

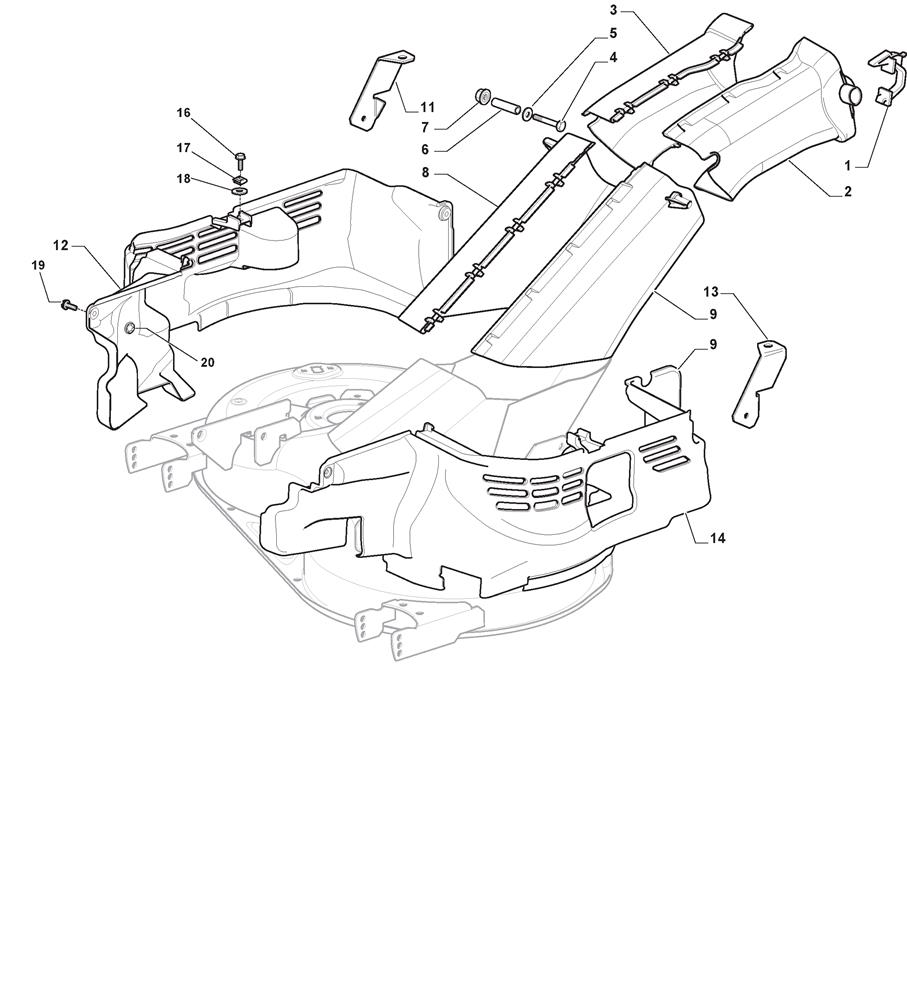

Belt Protection assembly details for Stiga MPX 84 HYDRO (2T2110273/FCK) 2017 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	325774499/0	DISCHARGE CHUTE RELEASE CLAMP	£2.87	Add to
002	325108057/0	RIGHT TOP CHUTE [BLACK]	£16.22	Add to
003	325108056/0	LEFT TOP CHUTE [BLACK]	£16.36	Add to
004	112792425/0	HEX-HEAD SCREW M6 X 55	£2.06	Add to
005	112521340/0	WASHER M7 7.4 x 14 x 1.6	£1.79	Add to
006	125160071/0	SPACER (TO 31 AUG 2019)	£2.30	Add to
006A	125160109/0	EXIT CONVEYOR SPACER MP84	£2.06	Add to
007	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
008	325108064/0	BOTTOM RIGHT CHUTE [BLACK]	£18.82	Add to
009	325108065/0	BOTTOM LEFT CHUTE [BLACK]	£18.82	Add to
011	325774527/0	RIGHT CLAMP BRACKET	£3.69	Add to
012	325060168/0	RIGHT BELT GUARD [BLACK]	£37.95	Add to
013	325774529/0	LEFT CLAMP BRACKET	£3.89	Add to
014	325060169/0	LEFT BELT GUARD [BLACK]	£35.71	Add to
016	112789008/0	HEX-HEAD SCREW M5 x 20	£2.06	Add to
017	112437503/0	LOCK PLATE	£2.06	Add to
018	112523020/0	WASHER M5 5.5 x 15 x 1.6	£2.06	Add to
019	125943011/0	SCREW	£9.82	Add to
020	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
