Optionals on Request

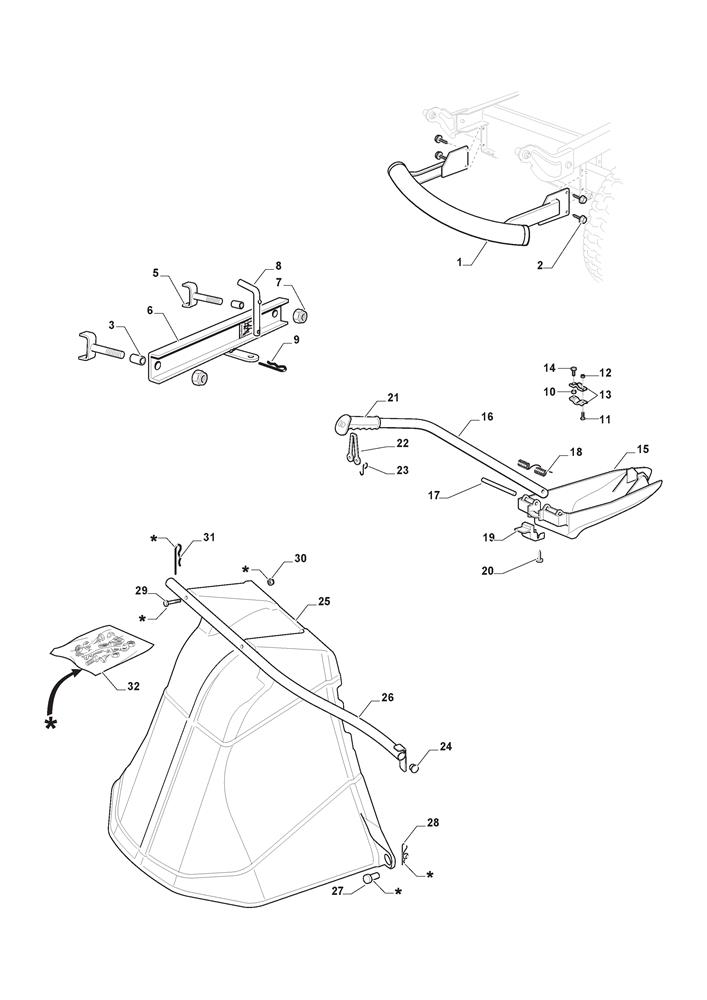

Optionals on Request assembly details for Stiga MPX 84 HYDRO (2T2110273/FCK) 2017 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	382869038/0	FRONT BUMPER BAR	£37.33	Add to
002	112735599/0	SELF-TAPPING SCREW M6 x 16	£2.06	Add to
003	125160074/0	SPACER (TO 31 AUG 2019)	£3.40	Add to
003A	125160108/0	SPACER	£3.15	Add to
005	382650211/0	REINFORCEMENT PIN	£5.46	Add to
006	382033119/0	TOW BAR	£32.99	Add to
007	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
008	125510021/1	HITCH PIN	£11.78	Add to
009	124487999/0	R CLIP D=3	£1.91	Add to
010	122170600/0	SPACER	£1.91	Add to
011	112792099/0	HEX HEAD SCREW M6 x 30	£1.79	Add to
012	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
013	327546015/2	WZ FLAT FULCR.AXLE FIX PLATE	£2.06	Add to
014	112791400/0	SCREW TE M6x20 UNI 5739 ACC.4.8	£1.79	Add to
015	325140104/1	MULCH DEFLECTOR SHOE	£23.01	Add to
016	325394021/0	MULCH PLUG HANDLE	£17.45	Add to
017	125510077/0	FULCRUM PIN	£3.69	Add to
018	125430245/0	SPRING	£3.28	Add to
019	325547320/0	END BLOCK	£4.10	Add to
020	112735403/0	FLANGED HEX-HEAD SCREW D=6 x 18	£2.06	Add to
021	325280000/1	HAND GRIP KIT MULCHING RO	£3.55	Add to
022	125840011/1	LOCKING RUBBER TIE	£6.27	Add to
023	125253004/0	FIXING HOOK	£2.06	Add to
024	118566116/0	HANDLE CAP BLACK D=21	£2.74	Add to
025	325600093/1	DEFLECTOR GUARD MP84	£68.42	Add to
026	382869044/0	SUPPORT ROD	£18.74	Add to
027	125510022/1	PIN	£3.40	Add to
028	124487998/0	R CLIP D=2	£2.06	Add to
029	112689515/0	HEX-HEAD SCREW M6 x 45	£2.06	Add to
030	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
031	124487999/0	R CLIP D=3	£1.91	Add to
032	382180028/0	SCREW ASSEMBLY KIT [DEFLECTOR]	£13.49	Add to
