Frame

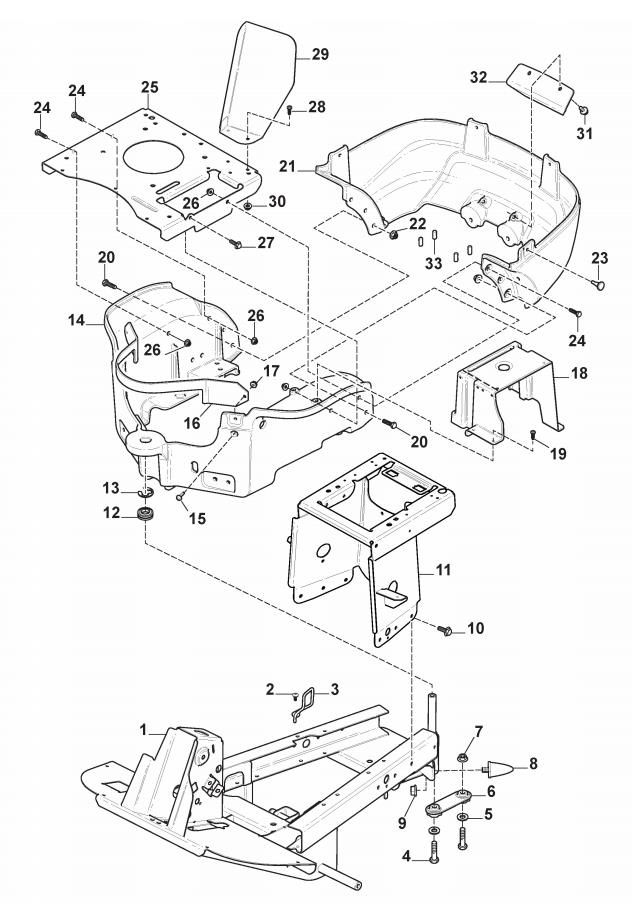

Frame assembly details for Stiga PARK 120 2017 (2F5820241/S16) 2017 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	1134-4242-01	SPACER WASHER	£4.78	Add to
004	112794900/0	HEX-HEAD SCREW M10 x 50	£2.06	Add to
005	9699-0109-02	WASHER 10.5 x 40 x 2	£2.32	Add to
006	1137-0963-01	LINK PLATE	£40.71	Add to
007	9739-1031-22	NUT M10	£2.32	Add to
008	1137-0064-01	RUBBER CONE	£42.53	Add to
009	1137-0155-01	SPACER	£4.52	Add to
010	1134-4242-01	SPACER WASHER	£4.78	Add to
012	9547-0008-01	BEARING	£10.25	Add to
015	112727801/0	SCREW TCB TORX M6 x 20	£2.06	Add to
016	1137-0923-01	BELT PROTECTION GUARD	£12.05	Add to
017	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
018	1137-0914-01	TANK BRACKET	£31.10	Add to
019	9893-0616-16	SCREW M6 x 16	£2.47	Add to
020	9959-0825-16	SCREW FLANGED TE M6SF M8 x 25	£2.06	Add to
022	1137-0155-01	SPACER	£4.52	Add to
023	127275000/0	RUBBER GROMMET FOR BRAKE PEDAL	£3.55	Add to
024	112793301/0	HEX-HEAD SCREW M8 x 25	£2.06	Add to
025	1137-0777-01	ENGINE PLATE	£84.77	Add to
026	1137-0155-01	SPACER	£4.52	Add to
027	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
028	9893-0616-16	SCREW M6 x 16	£2.47	Add to
029	1137-1026-01	TANK GUARD	£32.10	Add to
030	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
031	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
032	1137-0893-01	TOWING PLATE	£18.61	Add to
033	112390007/0	ROUND THREAD INSERT	£1.58	Add to
