Engine

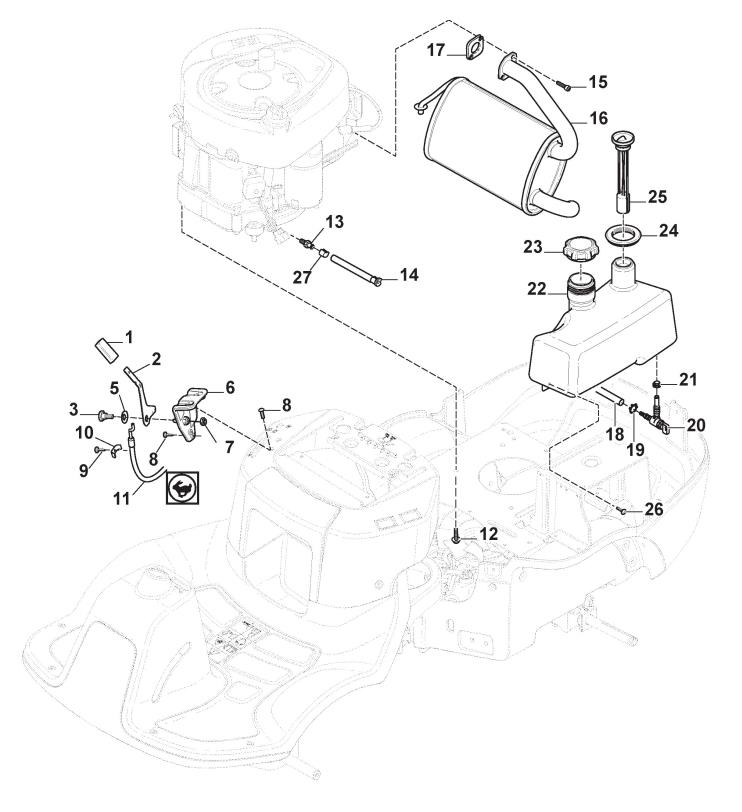

Engine assembly details for Stiga PARK 220 2017 (2F5820321/S16) 2017 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1137-0952-01	KNOB	£2.06	Add to
002	1137-0894-01	THROTTLE CONTROL LEVER	£3.55	Add to
003	1134-0240-00	SCREW	£9.14	Add to
005	9665-0002-00	BOWL WASHER	£2.61	Add to
006	1137-0873-01	THROTTLE PLATE	£5.60	Add to
007	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
008	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
009	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
010	9500-9991-00	CABLE CLAMP	£7.78	Add to
011	1134-4197-01	THROTTLE CABLE	£24.46	Add to
012	9955-3725-16	SCREW 3/8" x 25	£2.87	Add to
013	1134-5825-01	NIPPLE	£58.87	Add to
014	387869524/0	OIL DRAIN PIPE	£16.23	Add to
015	1134-4930-01	SCREW	£2.32	Add to
016	1137-0819-01	MUFFLER	£197.87	Add to
016A	1137-0930-01	MUFFLER	£179.92	Add to
017	1134-0433-00	MUFFLER GASKET	£5.87	Add to
018	1134-2975-15	FUEL HOSE (L=1400)	£32.99	Add to
019	9578-0023-02	HOSE CLAMP	£5.73	Add to
020	1134-3224-01	FUEL SHUT-OFF VALVE	£24.95	Add to
021	1134-3225-01	GROMMET	£7.57	Add to
022	337735116/0	FUEL TANK	£64.32	Add to
023	125795001/1	FUEL TANK CAP	£8.32	Add to
024	1135-2528-01	RUBBER SLEEVE	£9.23	Add to
025	1137-0838-01	FUEL LEVEL INDICATOR	£57.52	Add to
026	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
027	9578-0023-04	HOSE CLAMP	£5.32	Add to
028	9578-0011-01	TUBE CLAMP	£14.58	Add to
029	1137-1126-01	EXHAUST PIPE	£32.99	Add to
